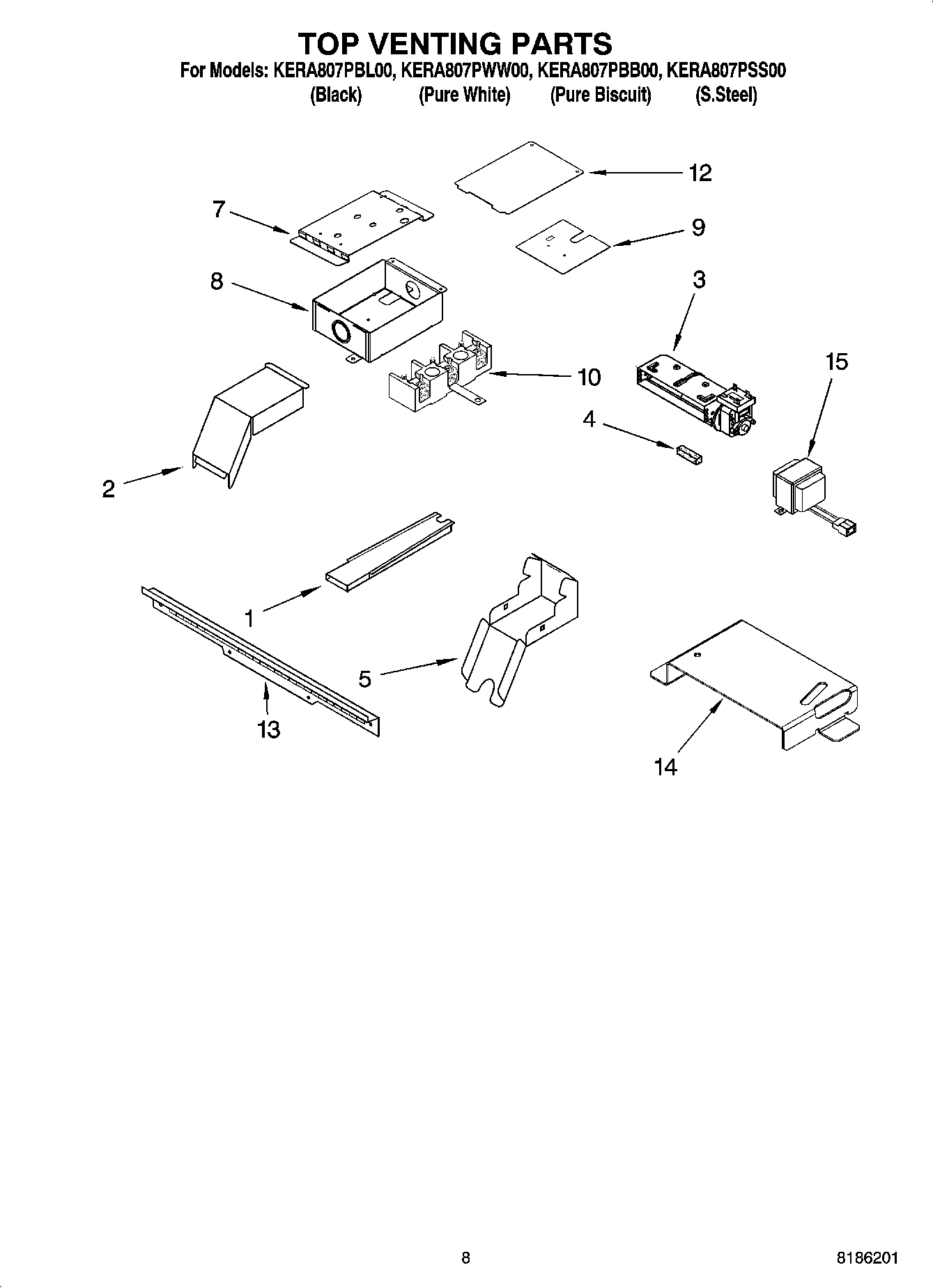

KERA807PBL00 06 – TOP VENTING PARTS, OPTIONAL PARTS

KERA807PBL00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KERA807PBL00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI86286A4
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
WPL 9759855
WPL 9759797
Conduit
WPL 9759796
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
WPL ARI86285A9
WPL ARI86284A6
WPL ARI86283A8
261900 Whirlpool Microwave Spray
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
WPL 9759795
Harness,
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
4450800 Whirlpool Oven Screw
285006 Whirlpool Spray
Harness, Wire (Main)
Spacer, Harness
WP4448950 Whirlpool Screw
Clip, Ground Wire
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
1Screw
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
7Bracket, Term.Box
8W10115858 Whirlpool Box Terminal
9Insulation
10WP9761958 Whirlpool Range Terminal Block
12W10491985 Whirlpool Screw
12Cover, Term Box
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14WP9757829 Whirlpool Mounting Bracket
15Transformer
