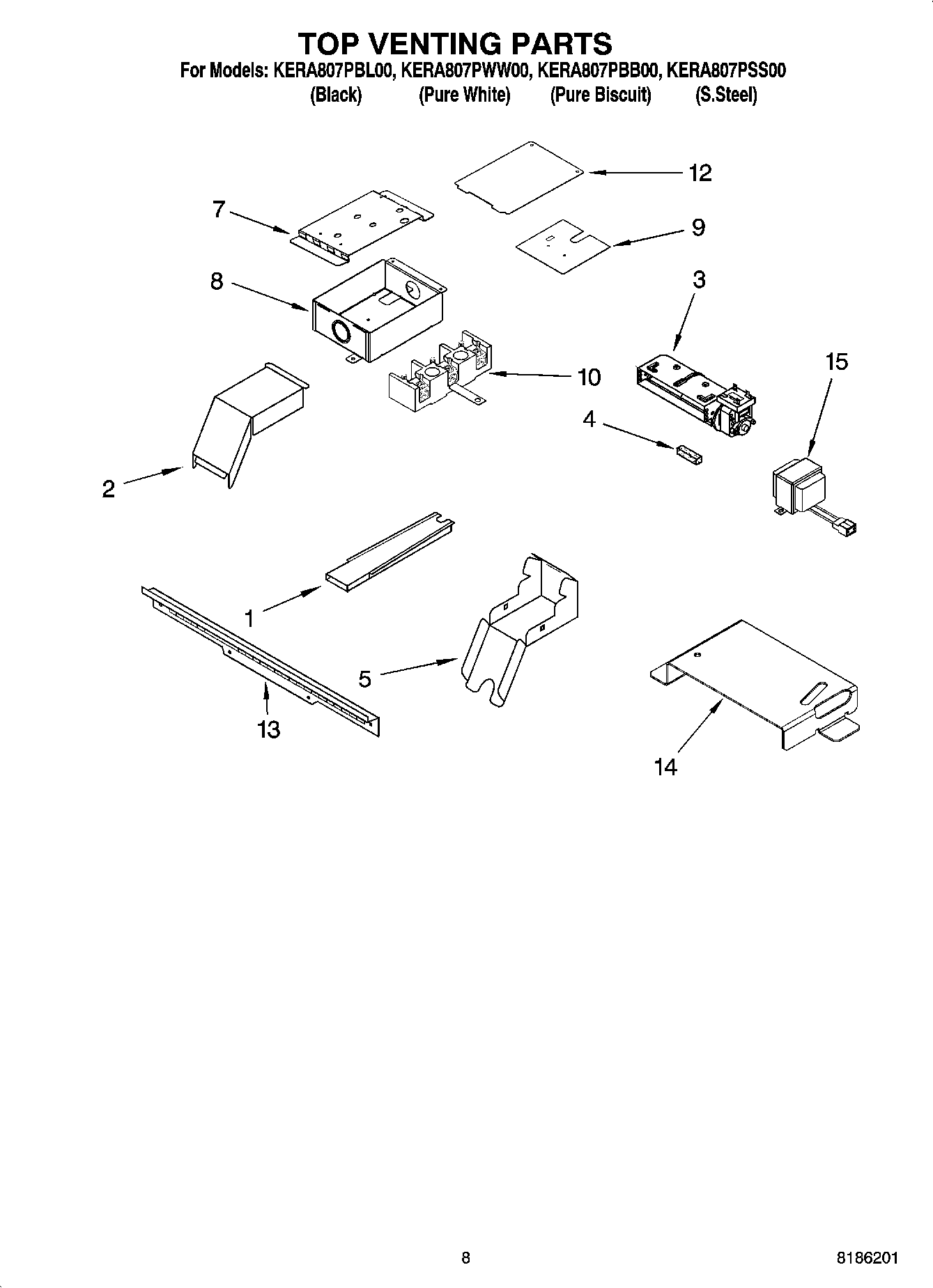

KERA807PSS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL 591014
	WPL ARI86301A3
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL 9759855
	WPL 9759797
	Conduit
	WPL 9759796
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	WPL ARI86304A6
	261900 Whirlpool Microwave Spray
	1
	WPL ARI86303A8
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	WPL ARI86302A3
	Wire (14 Ga. 150 c Yellow)
	WPL 9759795
	Harness,
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	4450800 Whirlpool Oven Screw
	Harness, Wire (Main)
	Spacer, Harness
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	Clip, Ground Wire
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
3	WP4455352 Whirlpool Mounting Bracket
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
7	Bracket, Term.Box
8	W10115858 Whirlpool Box Terminal
9	Insulation
10	WP9761958 Whirlpool Range Terminal Block
12	W10491985 Whirlpool Screw
12	Cover, Term Box
13	WP4450038 Whirlpool Screw
13	Vent, (Control Panel)
14	WP9757829 Whirlpool Mounting Bracket
15	Transformer
