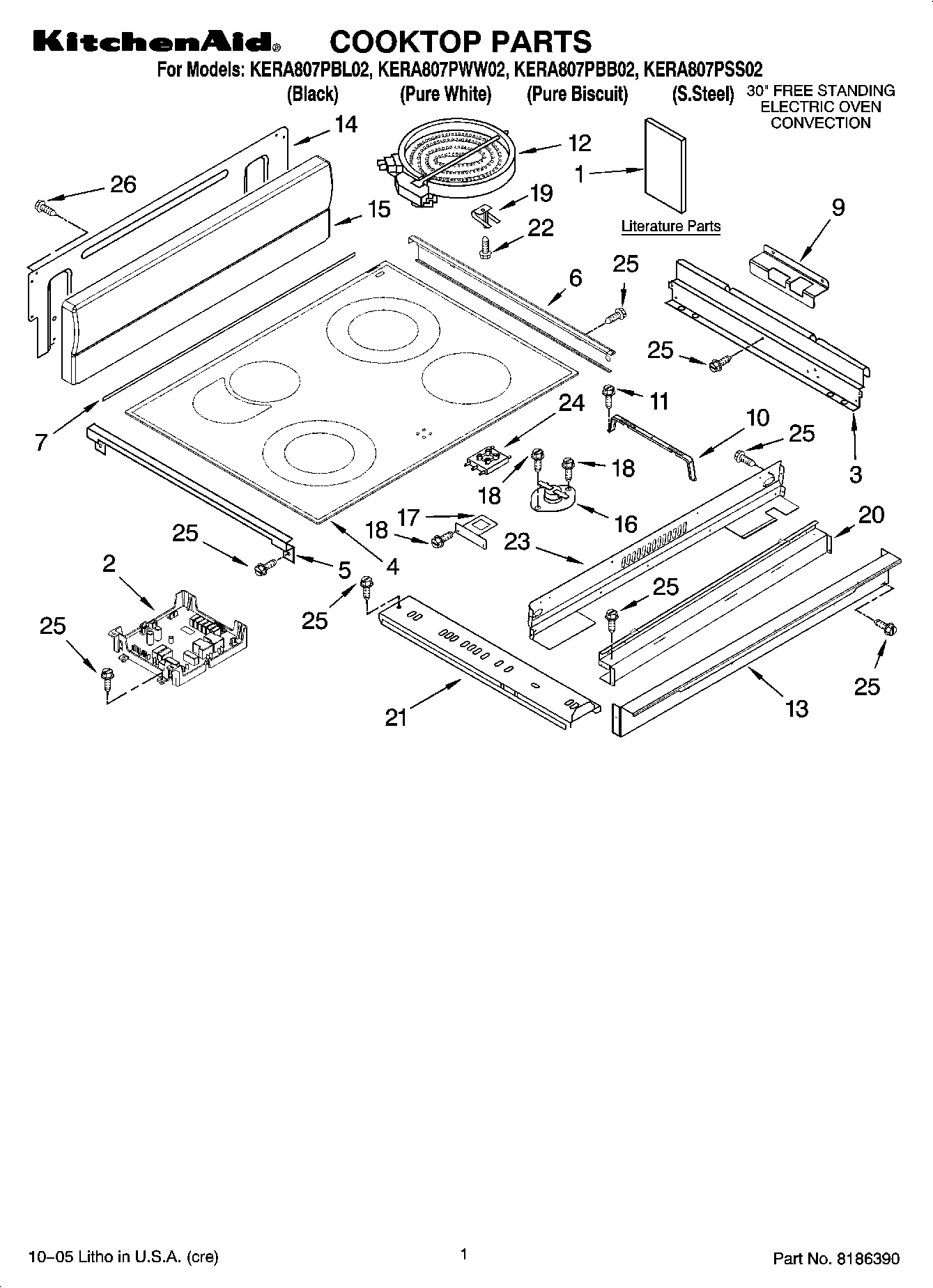

KERA807PSS02 01 – COOKTOP PARTS

KERA807PSS02 01 – COOKTOP PARTS

Written by

in

KERA807PSS02 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Instruct.
1Use & Care Guide
1Installation Instructions
1Tech Sheet
1Safe Cooking Tips (French)
1Guide, Easy Set
1Safe Cooking Tips
2Central, Appliance
3Bracket, Mounting
4Cooktop (White)
4Cooktop (S.Steel)
4Cooktop (Black)
4Cooktop (Biscuit)
5Clip, Ceran (2)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Biscuit RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (Black LH)
7Gasket
9Support (R.Hand)
9Support (L.Hand)
10WP9756821 Whirlpool Support
11WP4449809 Whirlpool Screw
12W10823692 Whirlpool Dual Radiant Element
12Element, Surface (1800/1000W)
12W10823698 Whirlpool Surface Element Right Rear
13Bracket, Front Support
14Cover, Backsplash Rear
15Backsplash (Biscuit)
15Backsplash (S.Steel Gasket)
15Backsplash (White)
15Backsplash (Black)
15Backsplash (Gray)
15Backsplash (Black)
16WP9759944 Whirlpool Thermostat
17Bracket, Ind. Lamp
18W10491985 Whirlpool Screw
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (2) (Side (3))
21Rail, Element (2) (Center (1))
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24Light, Indicator (Hot Surface)
25WP3196557 Whirlpool Screw
26SCREW
