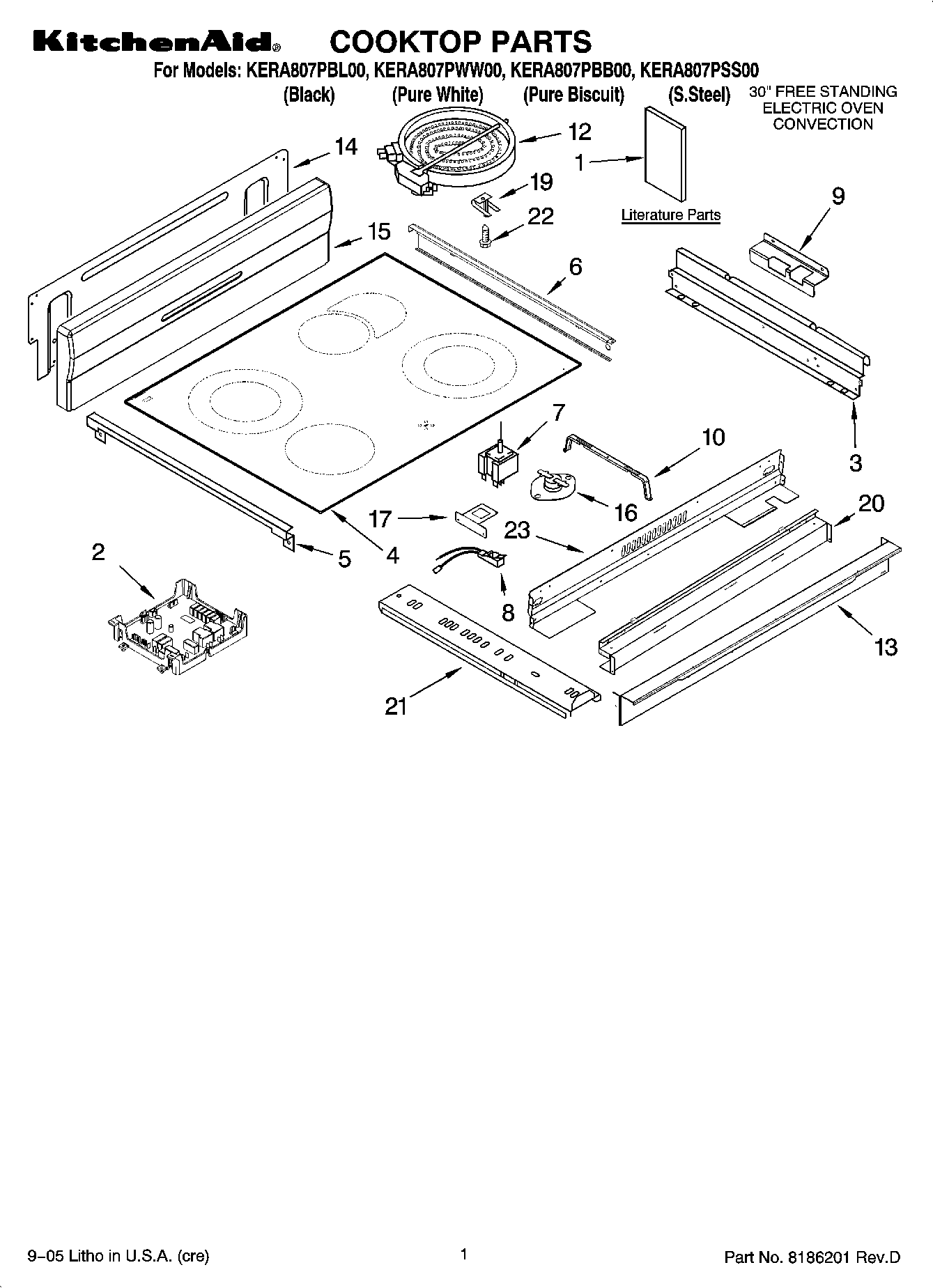

KERA807PWW00 01 – COOKTOP PARTS
Written by
in
KERA807PWW00 01 – COOKTOP PARTS
Products
Position
Product
1
Safe Cooking Tips
1
Anti-Tip Instruct.
1
Tech Sheet
1
Use & Care Guide
1
Installation Instructions
2
Central, Appliance
3
Bracket, Mounting
4
Cooktop (White)
4
Gasket
4
Cooktop (S.Steel)
4
Cooktop (Black)
4
Cooktop (Biscuit)
5
Clip, Ceran (2)
6
Trim-CkTop, SI (Biscuit RH)
6
Trim-CkTop, SI (Black RH)
6
Trim-CkTop, SI (White RH)
6
Trim-CkTop, SI (S.Steel LH)
6
Trim-CkTop, SI (Biscuit LH)
6
Trim-CkTop, SI (Black LH)
6
Trim-CkTop, SI (S.Steel RH)
6
Trim-CkTop, SI (White LH)
7
Switch, Infinite (RF)
7
Switch, Infinite (LF, RR, LR)
8
Light, Indicator
9
Support (R.Hand)
9
Support (L.Hand)
10
WP9756821 Whirlpool Support
10
WP4449809 Whirlpool Screw
12
Element, Surface (1800/1000W)
12
W10823692 Whirlpool Dual Radiant Element
12
W10823698 Whirlpool Surface Element Right Rear
13
Bracket, Front Support
14
Cover, Backsplash Rear
15
Backsplash (S.Steel Gasket)
15
Backsplash (White)
15
Backsplash (Biscuit)
15
Backsplash (Black)
15
Backsplash (Gray)
15
Backsplash (Black)
16
WP9759944 Whirlpool Thermostat
17
Bracket, Ind. Lamp
17
W10491985 Whirlpool Screw
19
Spring, Locator
20
Bracket, Rear Sprt
21
Rail, Element (2)
23
Screw (4)
23
Cover
←
