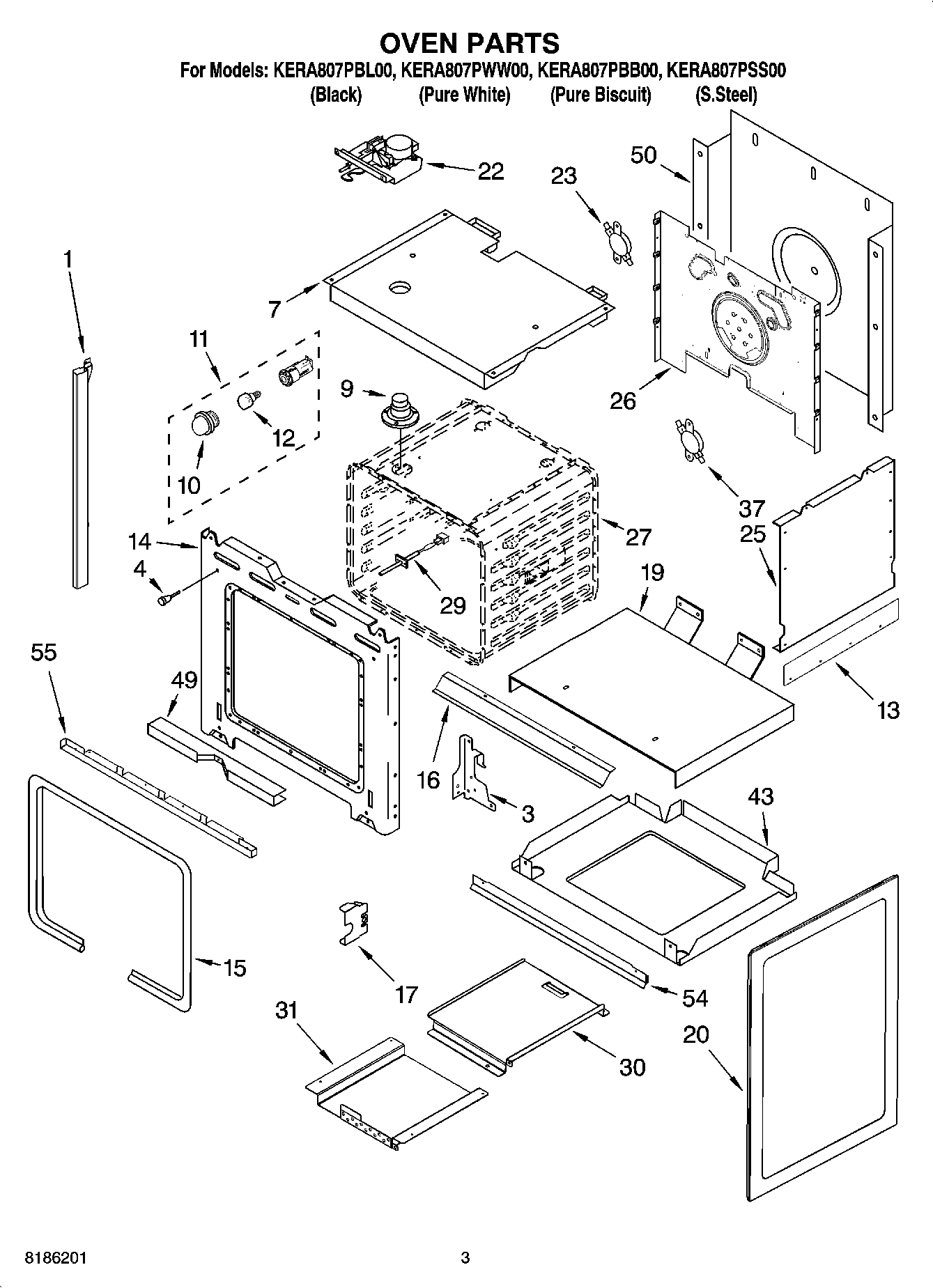

KERA807PWW00 03 – OVEN PARTS
Written by
in
KERA807PWW00 03 – OVEN PARTS
Products
Position
Product
1
Trim, Side (Left Hand) (Black)
1
Trim, Side (Left Hand) (Biscuit)
1
Trim, Side (Left Hand) (S.Steel)
1
Trim, Side (Left Hand) (White)
1
Trim, Side (Right Hand) (Biscuit)
1
Trim, Side (Right Hand) (Black)
1
Trim, Side (Right Hand) (White)
1
WP3400832 Whirlpool Screw
1
Trim, Side (Right Hand) (S.Steel)
3
WP4455605 Whirlpool Left Hand Hinge
3
WP4455606 Whirlpool Right Hand Hinge
4
4448520 Whirlpool Oven Bumper
7
Top, Chassis
9
SCREW
9
W10861715 Whirlpool Vent Tube
10
Lens, Light
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
13
Shield, Heat
13
WP4449743 Whirlpool Screw
14
WP4450118 Whirlpool Nut
14
Frame, Front
14
Screw
15
W11675844 Whirlpool Oven Gasket
16
Deflector, Vent Bottom
17
4452152 Whirlpool Oven Mounting Bracket
19
Support, Insulation
20
Body, Side (White)
20
Body, Side (Biscuit)
20
Body, Side (Black)
22
WP9760889 Whirlpool Door Latch
23
Thermostat SPST (205)
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
Liner, Oven (Not serviceable)
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
Bracket, GOC
31
W10083460 Whirlpool Slide Assembly
37
Screw (4)
37
WP9759242 Whirlpool Thermostat
43
Base, Chassis
49
WP4448933 Whirlpool Retainer
49
WP4449154 Whirlpool Screw
50
WP4451747 Whirlpool Rear Cover
50
WP4449809 Whirlpool Screw
54
Vent, Bottom Upper (Black)
54
Vent, Bottom Upper (Biscuit)
54
Vent, Bottom Upper (S. Steel)
54
Ve
55
WPL 9756817
55
WPL 9756485SS
55
WPL 9756485BT
55
WPL 9756485BL
55
WPL 9756470
55
WPL ARI86318A2
55
WPL 9756485WH
←
