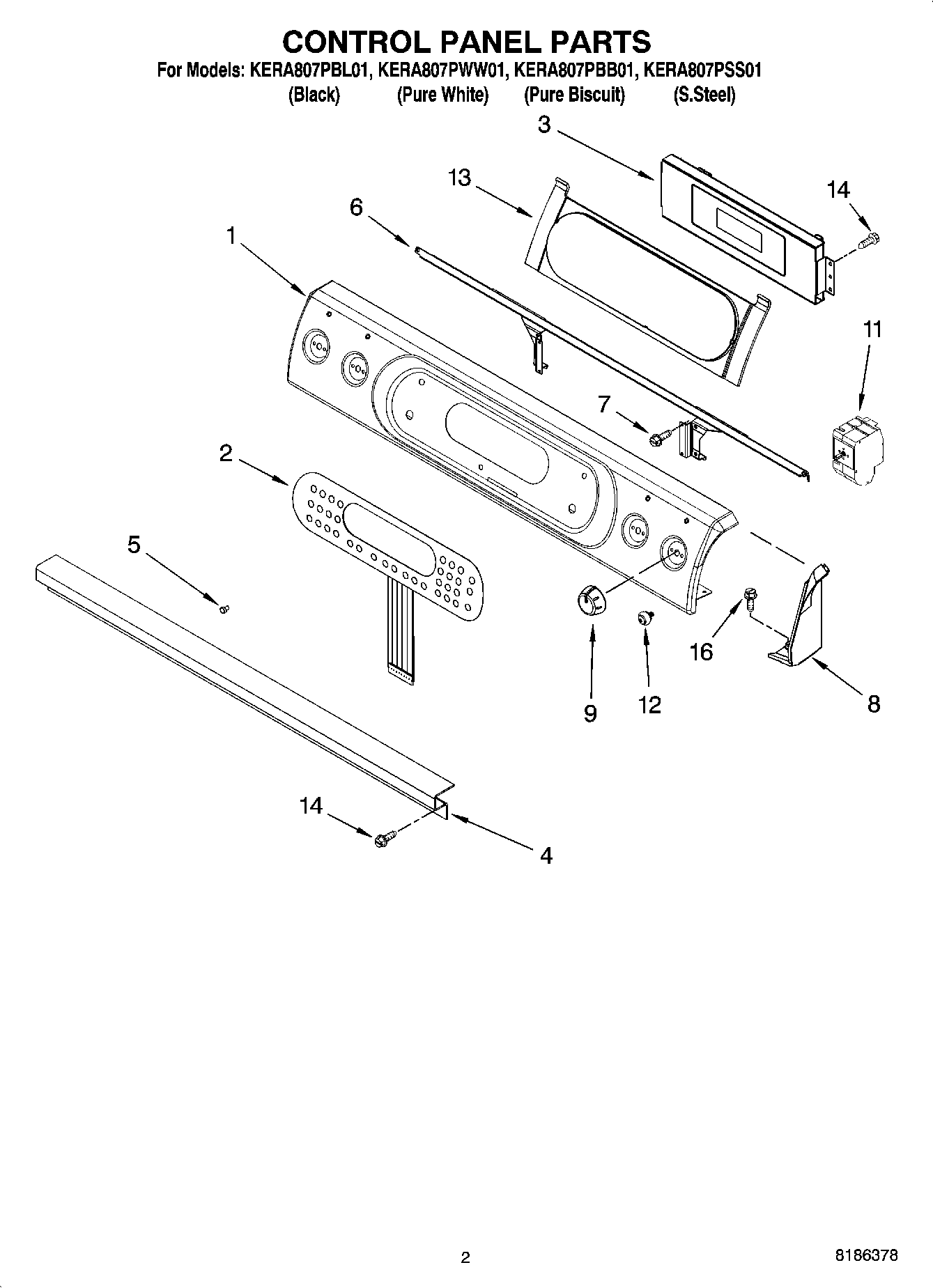

KERA807PWW01 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (S.Steel)
1	Control Panel (Black)
1	Control Panel (Biscuit)
1	Control Panel (White)
2	Membrane Switch (White)
2	Membrane Switch (Biscuit)
2	Membrane Switch (Black)
2	WP9756595ES Whirlpool Membrane Switch
3	Control, Interface
4	Bracket, Console
5	WP3196068 Whirlpool Light Lens
6	Bracket, User Interface
7	WP486579 Whirlpool Air Conditioner Screw
8	Endcap (S.Steel RH)
8	Endcap (White RH)
8	Endcap (Biscuit RH)
8	Endcap (Black RH)
8	Endcap (White LH)
8	Endcap (S.Steel LH)
8	Endcap (Biscuit LH)
8	Endcap (Black LH)
9	Knob (Cashmere Metal)
9	Knob (White)
9	Knob (BIscuit)
9	Knob (Black)
11	Switch, Infinite (RF)
11	Switch, Infinite (LF, RR, LR)
12	Bushing
13	Insert, Membrane
14	WP3196557 Whirlpool Screw
16	3196172 Whirlpool Oven Screw
