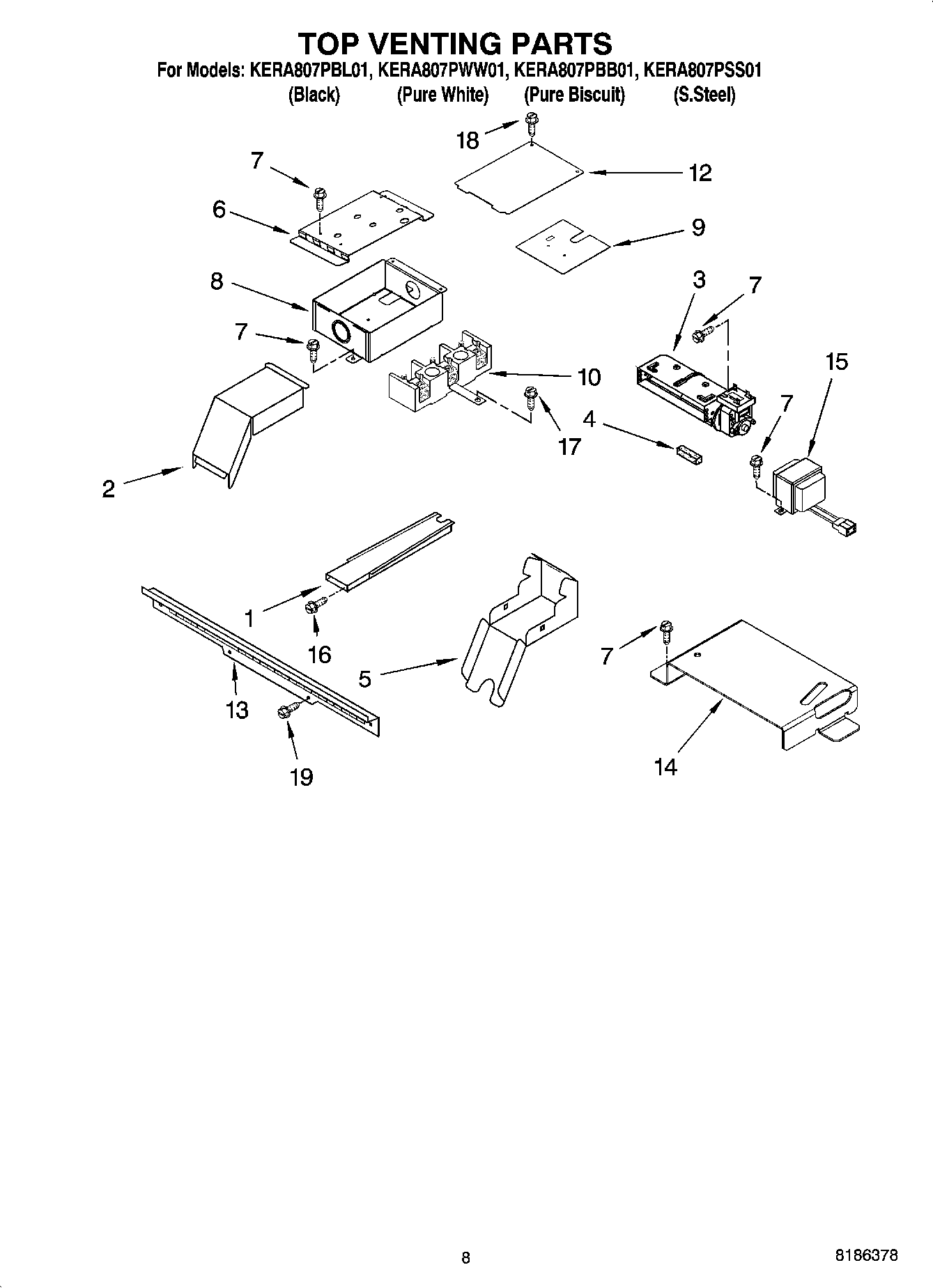

KERA807PWW01 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI86327A6
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Harness, Wir
	Wire (14 Ga. 150 c Green)
	Harness, Wire (Left)
	Wire (14 Ga. 150 c Brown)
	Harness, Main Smart, Knob
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	Wire (12 Ga. 150 c Black)
	WPL 9760530
	WPL ARI86326A6
	WPL ARI86325A2
	261900 Whirlpool Microwave Spray
	WPL ARI86328A6
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	WPL 9760531
	18 Ga. 80~c Rating (Red)
	242831 Whirlpool Oven Wire
	WPL 9759855
	Conduit
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	350930 Whirlpool White Spray Paint
	WP112432 Whirlpool Nut Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	285006 Whirlpool Spray
	Harness, Wire
	Spacer, Harness
	Clip, Ground Wire
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Bracket, Term.Box
8	W10115858 Whirlpool Box Terminal
9	9759721 Whirlpool Oven Insulator
10	WP9761958 Whirlpool Range Terminal Block
12	Cover, Term Box
13	Vent, (Control Panel)
14	WP9757829 Whirlpool Mounting Bracket
15	Transformer
16	Screw
17	Screw
18	W10491985 Whirlpool Screw
19	WP4450038 Whirlpool Screw
