KERC500EAL1 01 – COOKTOP

Products

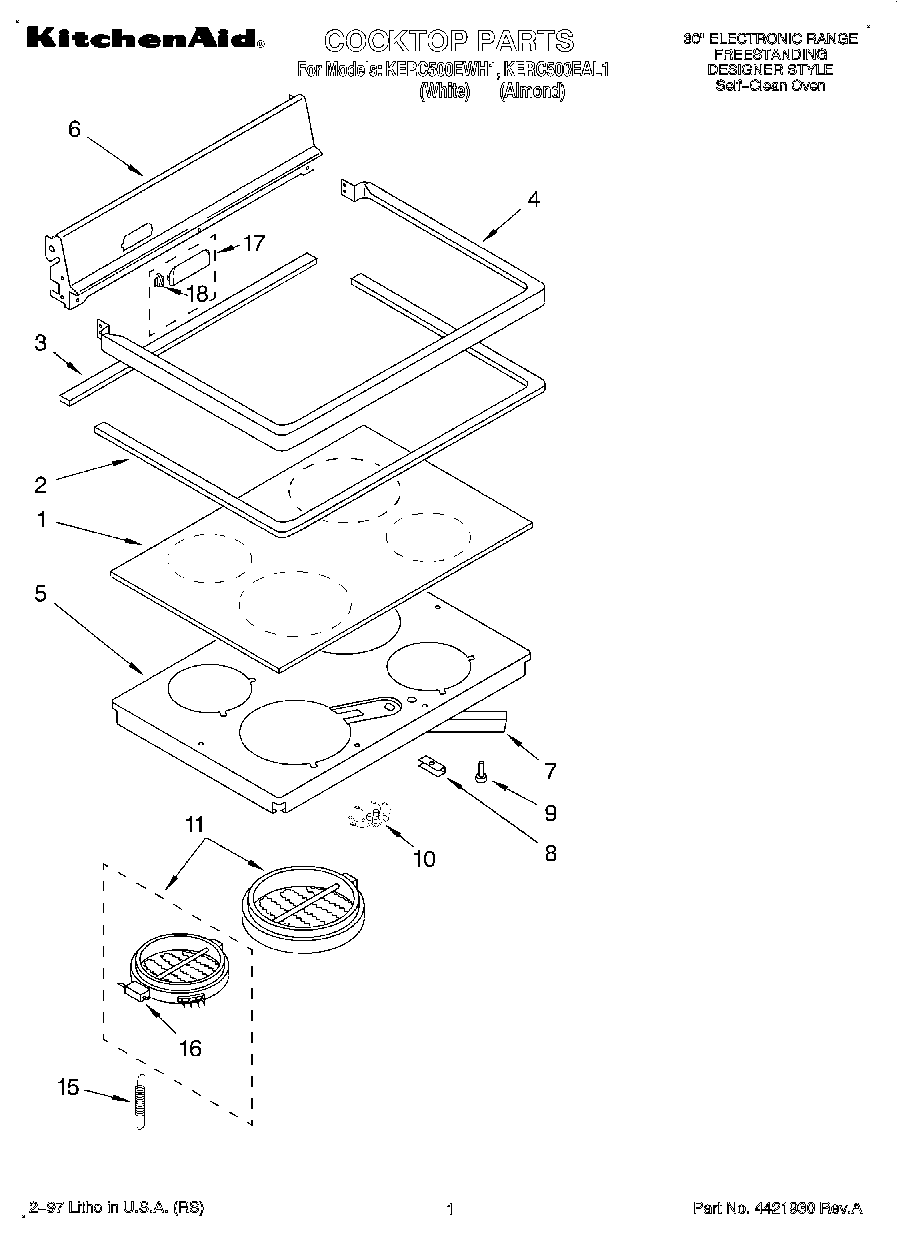

Position	Product
1	Cooktop, Ceran (White Mdl.)
1	Cooktop, Ceran (Almond Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (White)
5	Support, Element
6	Back Splash (Almond)
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (White)
7	Brace, Support
7	WP3387230 Whirlpool Screw
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	WP9781235 Whirlpool Clip
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (8“ R.R. 2100W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (6“ L.R. 1400W)
11	W10823694 Whirlpool Surface Element
15	Spring (12)
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp (2400W – LF)
17	Cover, Vent (Almond)
17	Cover, Vent (White)
18	Clip, Vent Cover
