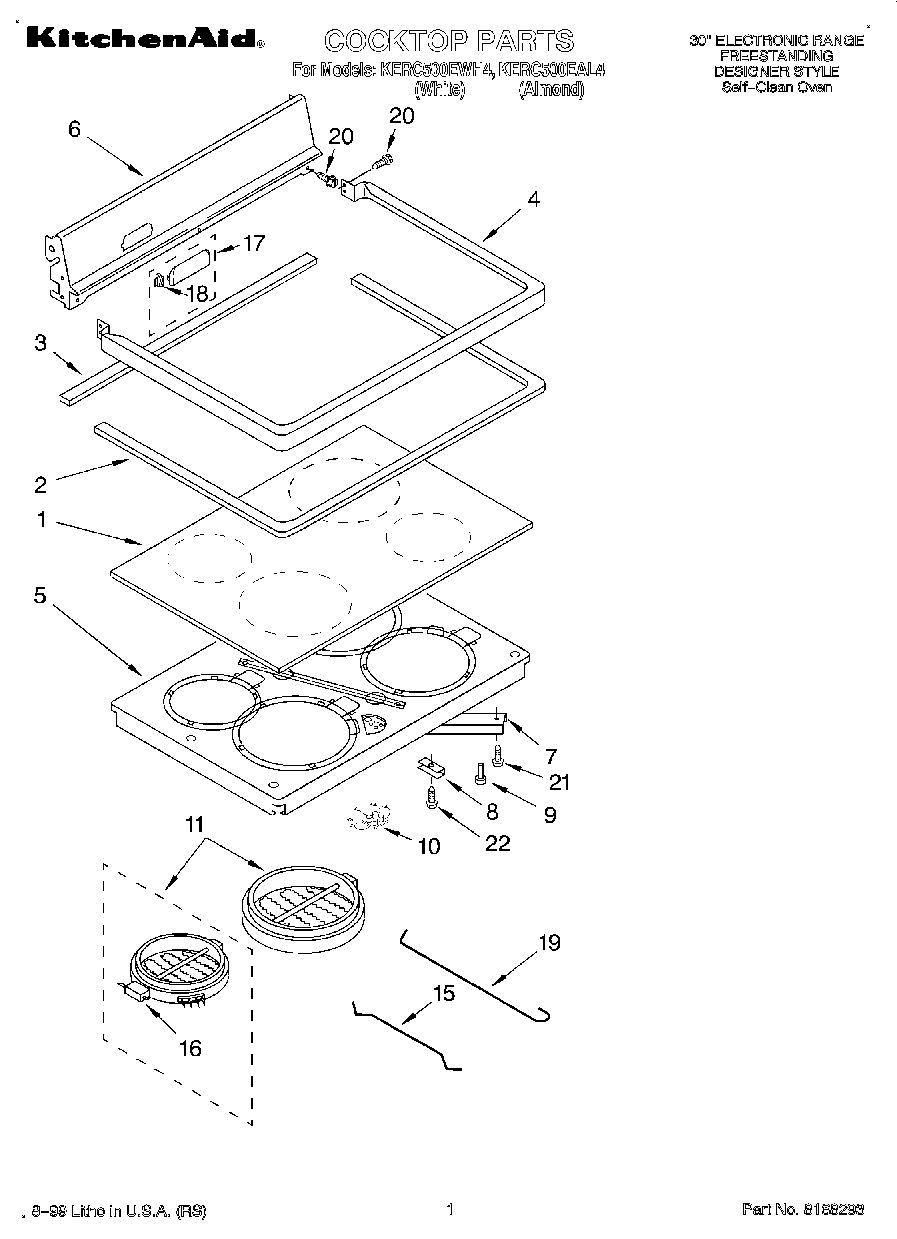

| 1 | Cooktop, Ceran (Almond Mdl.) |
| 1 | Cooktop, Ceran (White Mdl.) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Rear Gasket |
| 4 | Frame, Cooktop (Almond) |
| 4 | Frame, Cooktop (White) |
| 5 | Support, Element |
| 6 | Back Splash (Almond) |
| 6 | Back Splash (White) |
| 7 | Brace, Support |
| 8 | Support Clip (4) |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11 | Element, Surface (7`` R.F. 1700W) |
| 11 | Element, Surface (8`` R.R. 2100W) |
| 11 | W10823694 Whirlpool Surface Element |
| 11 | Element, Surface (6`` L.R. 1400W) |
| 15 | Rod, Small Ceran Element |
| 16 | Limiter, Temp (1700W - RF) |
| 16 | Limiter, Temp (2100W - RR) |
| 16 | Limiter, Temp. (1400 W - LR) |
| 16 | Limiter, Temp (2400W - LF) |
| 17 | Cover, Vent (White) |
| 17 | Cover, Vent (Almond) |
| 18 | Clip, Vent Cover |
| 19 | Rod, Large Ceran Element |
| 20 | Back Splash (Screw (4) 10AB x 1/2``) |
| 21 | Screw (4) 10 x 1/2 |
| 22 | Screw, (4) 10PH-B x 3/4 |
