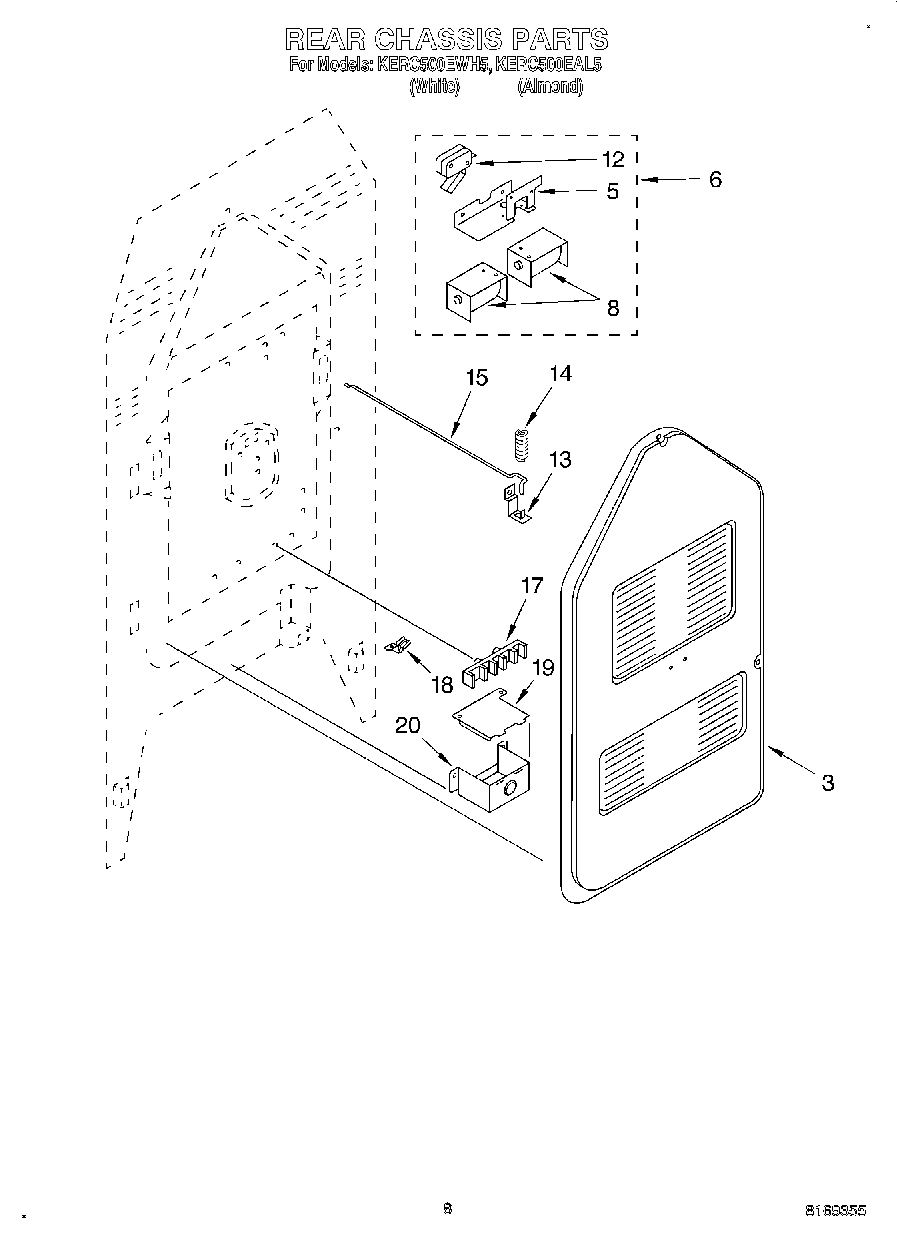

KERC500EAL5 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL 9750376
	WPL 9752377
	WPL 9781821
	WPL 9752343
	WPW10339879 Whirlpool Wire Tie
	WPL 9781542
	WPL LIT9752381
	WPL LIT9752776
	SCREW
	WPL 9752771
	WPL LIT9780689
	WPL LIT9752387
	WPL LIT9780944
	WPL LIT9753308
	WPL LIT9753481
	WPL 9751745
	Safer Cooking Tips
	WPL 9781214
3	Panel, Rear
3	Screw (4) 10 x 3/8
5	Bracket, Lock
6	Oven Lock Assembly
8	Solenoid
8	Washer (2)
8	Screw (2) 10-32 x 5/16
12	Nut (2)
12	Switch, Interlock
12	Screw, (2)
13	Bracket, Spring
14	Spring, Door Lock
15	Rod, Lock
17	WP112432 Whirlpool Nut Assembly
17	WP8203546 Whirlpool Terminal Block
17	Screw, (2) 10-16 x 1
18	Clip, Ground Wire
18	Ground Strap
19	WP4159387 Whirlpool Compactor Screw
19	Cover, Terminal Box
20	WPL 9752344
20	Wire (14 Ga. 150 c Brown)
20	8212471 Whirlpool Oven Paint
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	Grease
20	Golden Harvest
20	1
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	350942 Whirlpool Spray Paint
20	WPL 72112
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest (Uncut)
20	72113 Whirlpool Touch-Up Paint
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	511873 Whirlpool Refrigerator Paint
20	WPL 799832
20	paint, spray 13 oz. (coffee)
20	Screw (4) 10 x 1/2
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Paint, Spray 13 Oz. (Avocado)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	WPW10208653 Whirlpool Insulation
20	350930 Whirlpool White Spray Paint
20	350956 Whirlpool Spray Assembly
