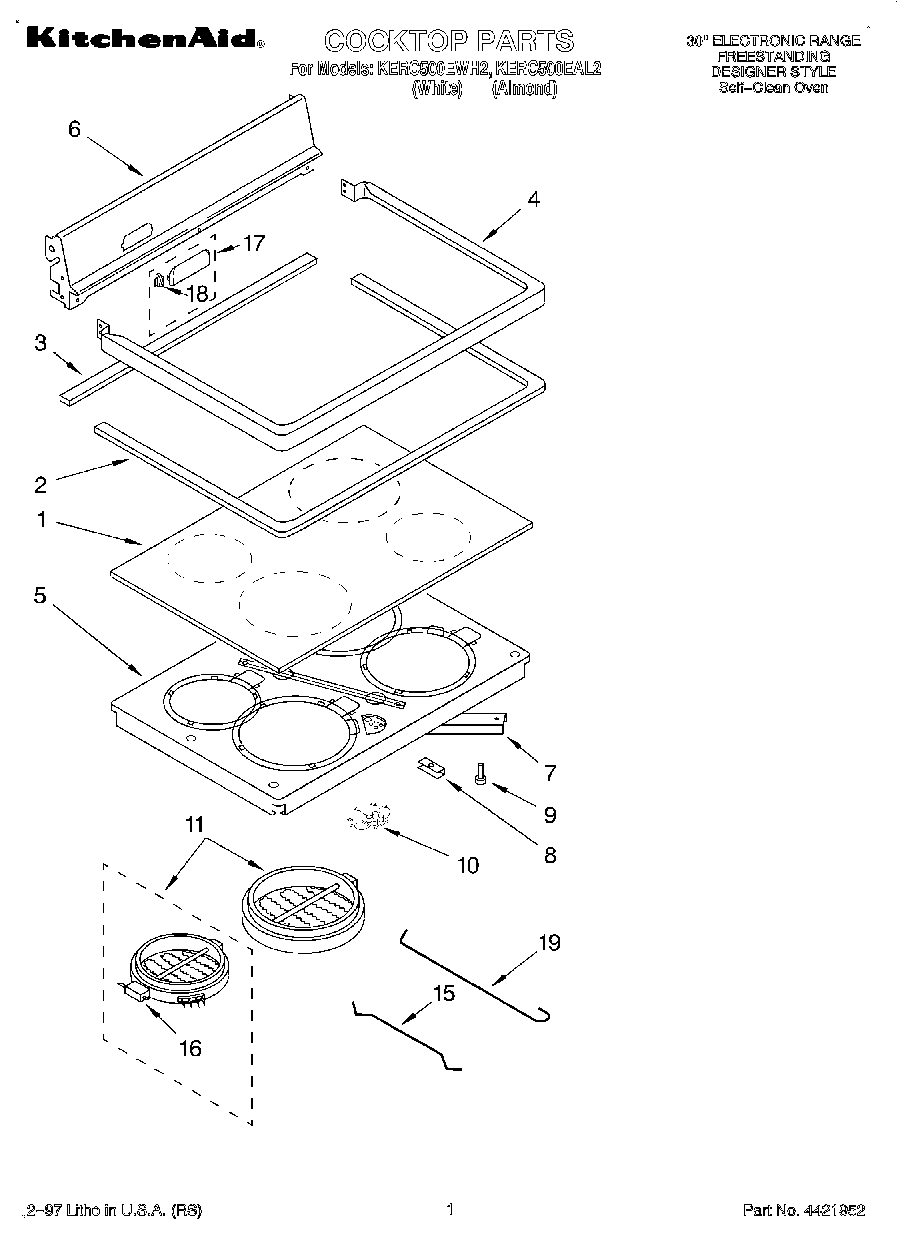

KERC500EWH2 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Almond Mdl.)
1	Cooktop, Ceran (White Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
5	Support, Element
6	Back Splash (Almond)
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (White)
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	WP9781235 Whirlpool Clip
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (8“ R.R. 2100W)
11	W10823694 Whirlpool Surface Element
11	Element, Surface (6“ L.R. 1400W)
15	Rod, Small Ceran Element
16	Limiter, Temp (2400W – LF)
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2100W – RR)
17	Cover, Vent (White)
17	Cover, Vent (Almond)
18	Clip, Vent Cover
19	Rod, Large Ceran Element
