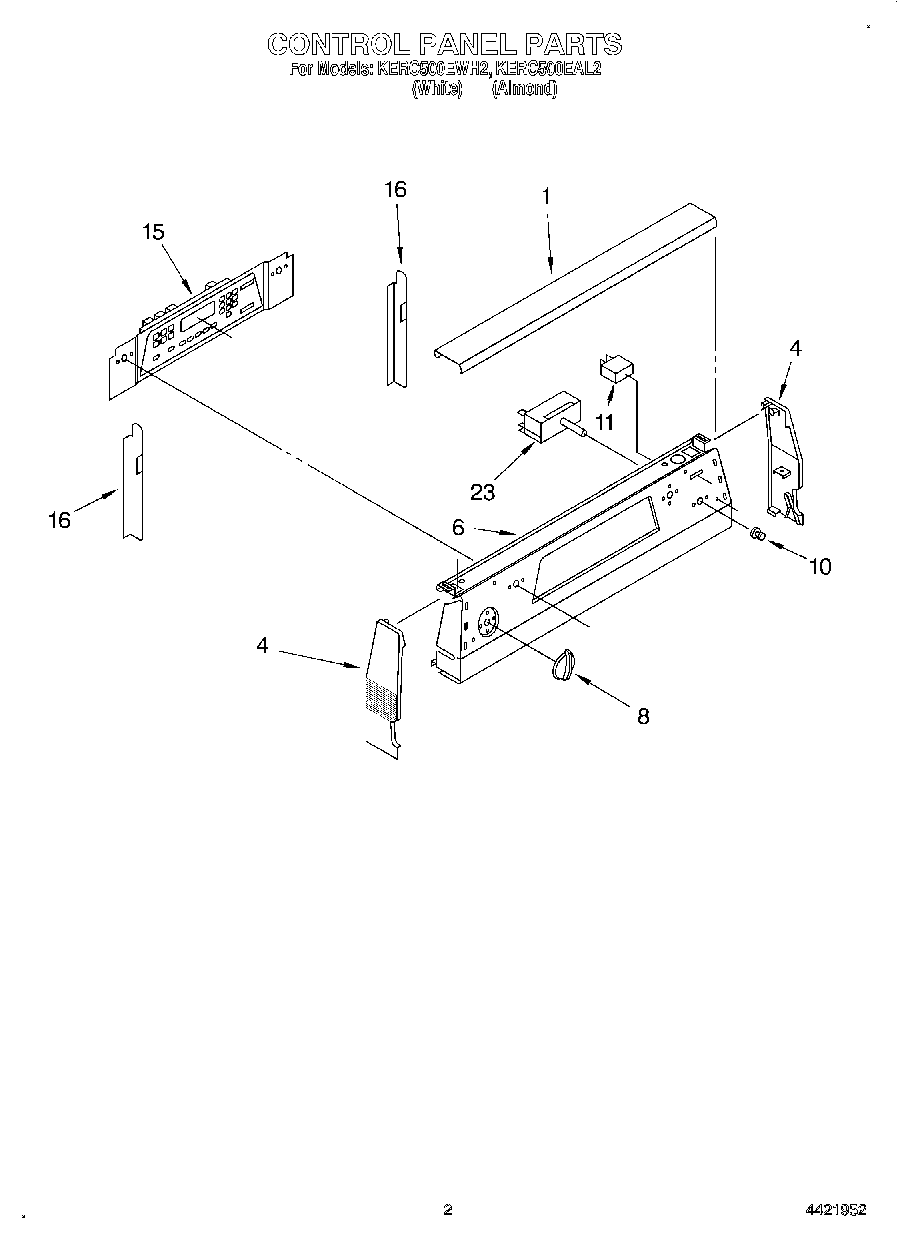

KERC500EWH2 02 – CONTROL PANEL

Products

Position	Product
1	Lamp Cover (White)
1	Lamp Cover (Almond)
4	End Cap (Left Hand) (White)
4	WP4159387 Whirlpool Compactor Screw
4	End Cap (Left Hand) (Almond)
4	End Cap (Right Hand) (Almond)
4	End Cap (Right Hand) (White)
6	Panel, Control (White)
6	Panel, Control (Almond)
6	Panel, Control (Screw, (2) 8 x 3/8)
8	Knobs, Control (Almond)
8	WP9750372FW Whirlpool Knob Assembly
10	WP9750343 Whirlpool Light Lens
11	Light Module
15	Oven Control Assembly (Almond)
15	Oven Control Assembly (White)
16	Brace, Control Pnl
23	WP9750641 Whirlpool Infinite Switch
23	WP9750639 Whirlpool Infinite Switch
23	WP9750638 Whirlpool Infinite Switch
23	WP8203529 Whirlpool Infinite Switch
23	WP3400882 Whirlpool Screw
23	Infinite Switch (Insulation, Control)
