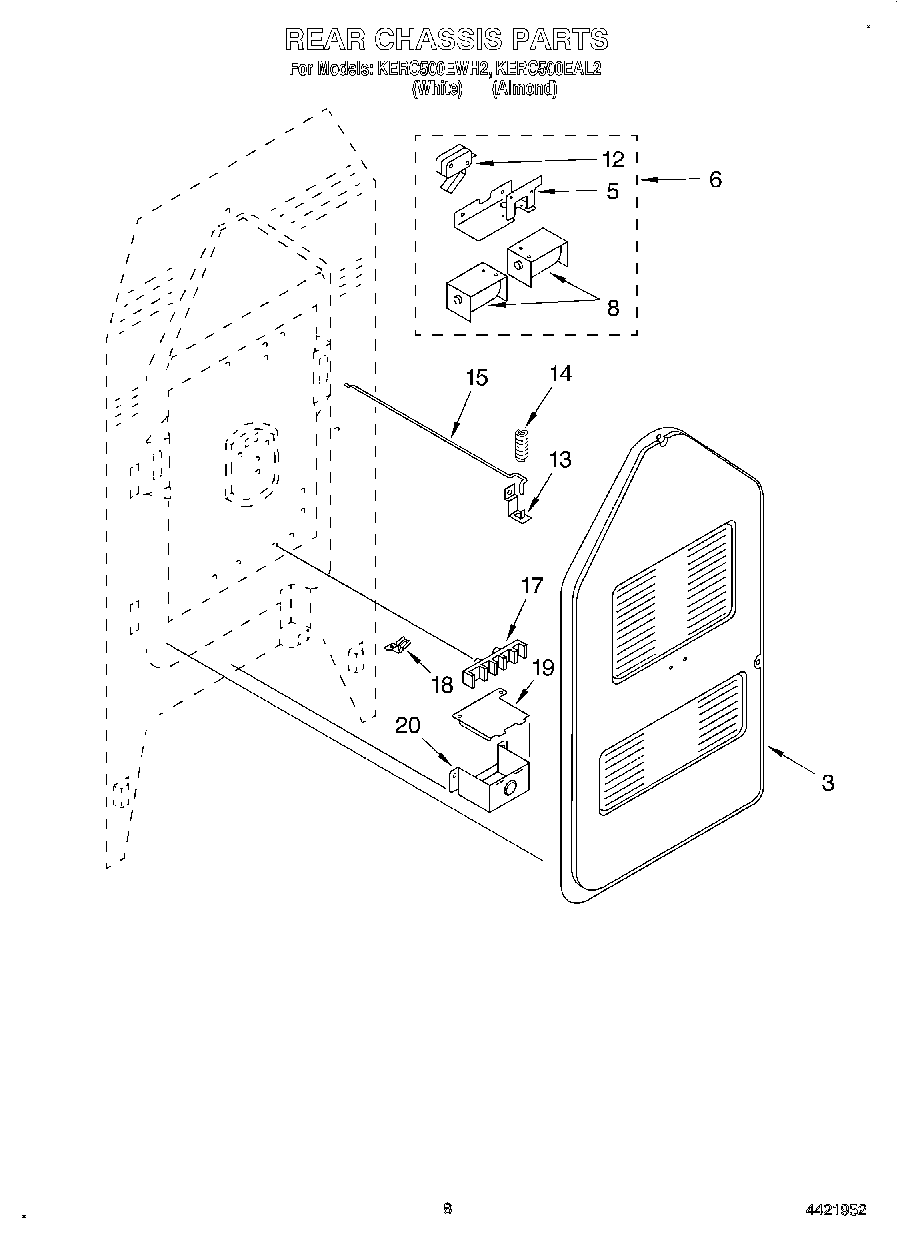

KERC500EWH2 06 – REAR CHASSIS, LIT/OPTIONAL

KERC500EWH2 06 – REAR CHASSIS, LIT/OPTIONAL

Written by

in

KERC500EWH2 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9780944
	WPW10339879 Whirlpool Wire Tie
	WPL 9781299
	WPL 9781285
	WPL 3191042
	WPL 9750376
	WPL 9752343
	WPL 9752377
	WPL 9781214
	WPL 9781298
	WPL LIT9781538
	WPL LIT9780933
	WPL LIT9780689
	WPL LIT9752387
	WPL LIT9752381
	WPL 9781567
	WPL 9781540
3	Screw, (2) 10 x 3/8
3	Panel, Rear
5	Bracket, Lock
6	Oven Lock Assembly
8	Washer
8	Screw, (2) 10-32 x 5/16
8	Solenoid
12	Nut (2)
12	Switch, Interlock
12	Screw, (2)
13	Bracket, Spring
14	Spring, Door Lock
14	WP4159387 Whirlpool Compactor Screw
15	Rod, Lock
17	WP112432 Whirlpool Nut Assembly
17	Screw, (2) 10-16 x 1
17	WP8203546 Whirlpool Terminal Block
18	SCREW
18	Clip, Ground Wire
18	Ground Strap
19	Cover, Terminal Box
20	8212471 Whirlpool Oven Paint
20	Grease
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (12 Ga. 150 c Black)
20	1
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 150 c Blue)
20	WPL 9752344
20	242831 Whirlpool Oven Wire
20	Paint, Spray 13 Oz. (Avocado)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest (Uncut)
20	Golden Harvest
20	72113 Whirlpool Touch-Up Paint
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Platinum (Uncut)
20	WPL 72112
20	350942 Whirlpool Spray Paint
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	WPW10208653 Whirlpool Insulation
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	350930 Whirlpool White Spray Paint
