KERC500EWH3 03 – DOOR AND DRAWER
Written by
in

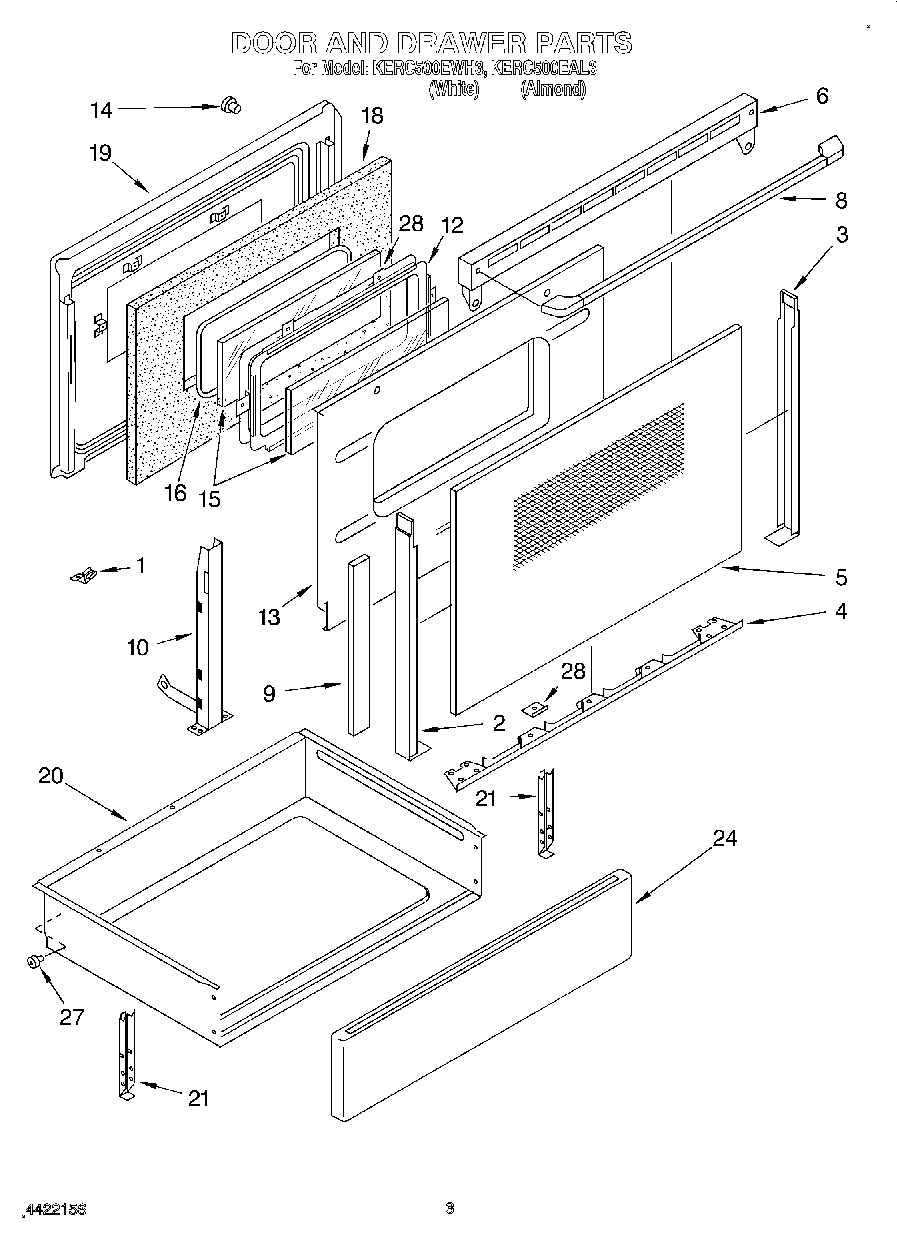

KERC500EWH3 03 – DOOR AND DRAWER
Products
Position
Product
1
Retainer, Glass
2
Trim, Door-Left (White)
2
Trim, Door-Left (Almond)
3
Trim, Door-Right (Almond)
3
Trim, Door-Right (White)
4
Trim, Door Bottom (White)
4
Trim, Door Bottom (Almond)
5
Glass, Door (Almond)
5
Glass, Door (White)
6
Vent, Door (Gasket, Vent)
6
Vent, Door (Seal, Door Vent Side)
6
Vent, Door (White)
6
Vent, Door (Almond)
8
Handle, Door (White)
8
Handle, Door (Almond)
8
WPW10001180 Whirlpool Refrigerator Screw
9
Gasket, Door Glass
10
WP9782033 Whirlpool Door Hinge
12
Frame, Window
13
Shield Door
14
238614 Whirlpool Bumper Hinge
15
WP9781654 Whirlpool Door Glass
16
Seal, Window
18
WPW10208653 Whirlpool Insulation
19
Liner, Door
20
Drawer & Roller
21
Bracket, Drawer
21
Screw (4) 10 x 1/2
24
Front, Drawer (White)
24
Front, Drawer (Almond)
27
814229 Whirlpool Primary Roller
27
WP90296 Whirlpool Clip
28
Spacer, Door (8)
28
WP4159387 Whirlpool Compactor Screw
←
