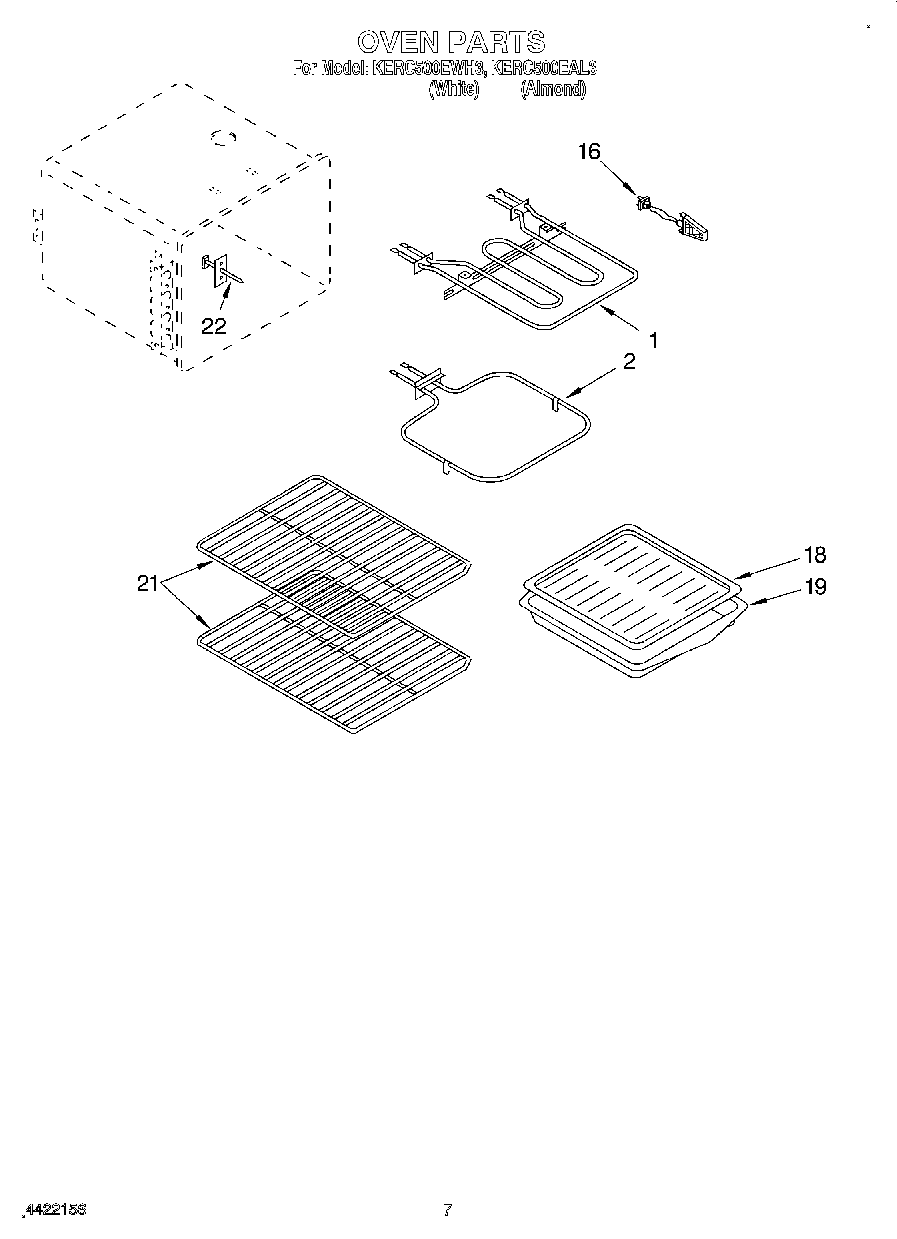

KERC500EWH3 05 – OVEN
Products
| Position | Product |
|---|---|
| 1 | Element, Broil |
| 2 | ELMNT-BAKE |
| 16 | WP4448972 Whirlpool Oven Light |
| 16 | Screw (2) |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 21 | Rack, Standard |
| 22 | Sensor, Heat |
| 22 | Screw |
KERC500EWH3 05 – OVEN
| Position | Product |
|---|---|
| 1 | Element, Broil |
| 2 | ELMNT-BAKE |
| 16 | WP4448972 Whirlpool Oven Light |
| 16 | Screw (2) |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 21 | Rack, Standard |
| 22 | Sensor, Heat |
| 22 | Screw |
