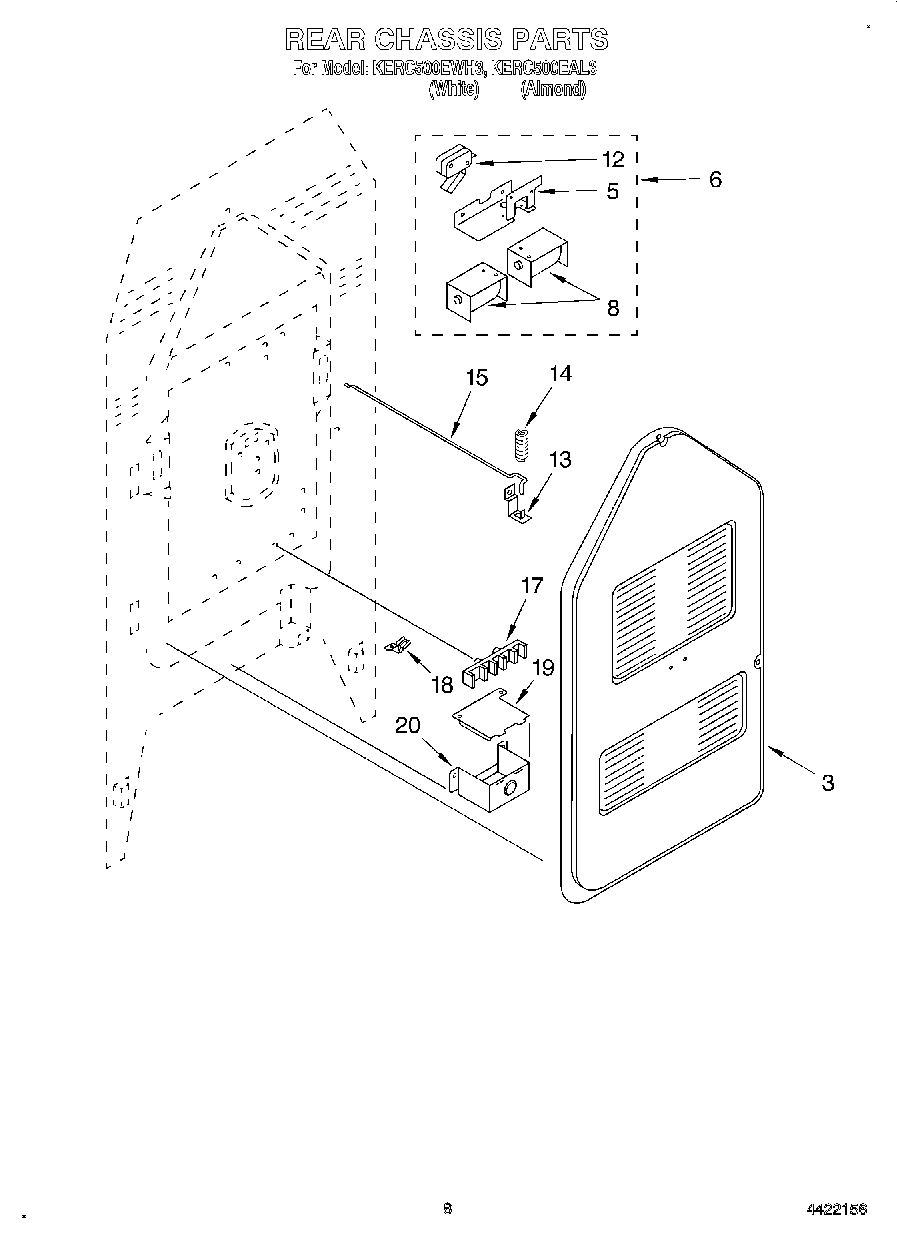

KERC500EWH3 06 – REAR CHASSIS, LIT/OPTIONAL

KERC500EWH3 06 – REAR CHASSIS, LIT/OPTIONAL

Written by

in

KERC500EWH3 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9780944
	WPL LIT9752387
	WPL LIT9752381
	WPL 9781567
	WPL 9781542
	WPL 9781540
	WPL 9781298
	WPL 9781214
	WPL 9752377
	WPL 9752343
	WPW10339879 Whirlpool Wire Tie
	WPL 9751745
	WPL 9750376
	WPL 3191042
	WPL LIT9752776
	WPL LIT9780689
	WPL LIT9780933
	WPL LIT9781538
	WPL 9781299
	SCREW
	Safer Cooking Tips
3	Screw (4) 10 x 3/8
3	Panel, Rear
5	Bracket, Lock
6	Oven Lock Assembly
8	Screw (2) 10-32 x 5/16
8	Washer (2)
8	Solenoid
12	Screw, (2)
12	Nut (2)
12	Switch, Interlock
13	Bracket, Spring
14	Spring, Door Lock
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
17	WP112432 Whirlpool Nut Assembly
17	Screw, (2) 10-16 x 1
18	Ground Strap
18	Clip, Ground Wire
19	Cover, Terminal Box
19	WP4159387 Whirlpool Compactor Screw
20	Wire (14 Ga. 150 c Yellow)
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Orange)
20	WP72107 Whirlpool Touchup
20	Wire (12 Ga. 150 c Black)
20	Almond (Uncut)
20	Wire (14 Ga. 200 c Brown)
20	1
20	799344 Whirlpool Refrigerator Paint
20	WPL 9752344
20	350956 Whirlpool Spray Assembly
20	Golden Harvest
20	72017 Whirlpool Appliance Touch-Up Paint White
20	8212471 Whirlpool Oven Paint
20	Grease
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WPW10208653 Whirlpool Insulation
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	Wire, 25` Roll (Black 14 Ga.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25“ Roll (White 14 GA.)
20	285006 Whirlpool Spray
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	Screw (4) 10 x 1/2
20	paint, spray 13 oz. (coffee)
20	350930 Whirlpool White Spray Paint
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	72113 Whirlpool Touch-Up Paint
20	Golden Harvest (Uncut)
20	Toast
20	242831 Whirlpool Oven Wire
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Paint, Spray (13 Oz.) (Platinum)
20	Enamal, Toast (1 Qt. Uncut)
20	Platinum (Uncut)
20	WPL 72112
20	350942 Whirlpool Spray Paint
20	Paint, Spray 13 Oz. (Avocado)
