KERC500EWH4 01 – COOKTOP

KERC500EWH4 01 – COOKTOP

Written by

in

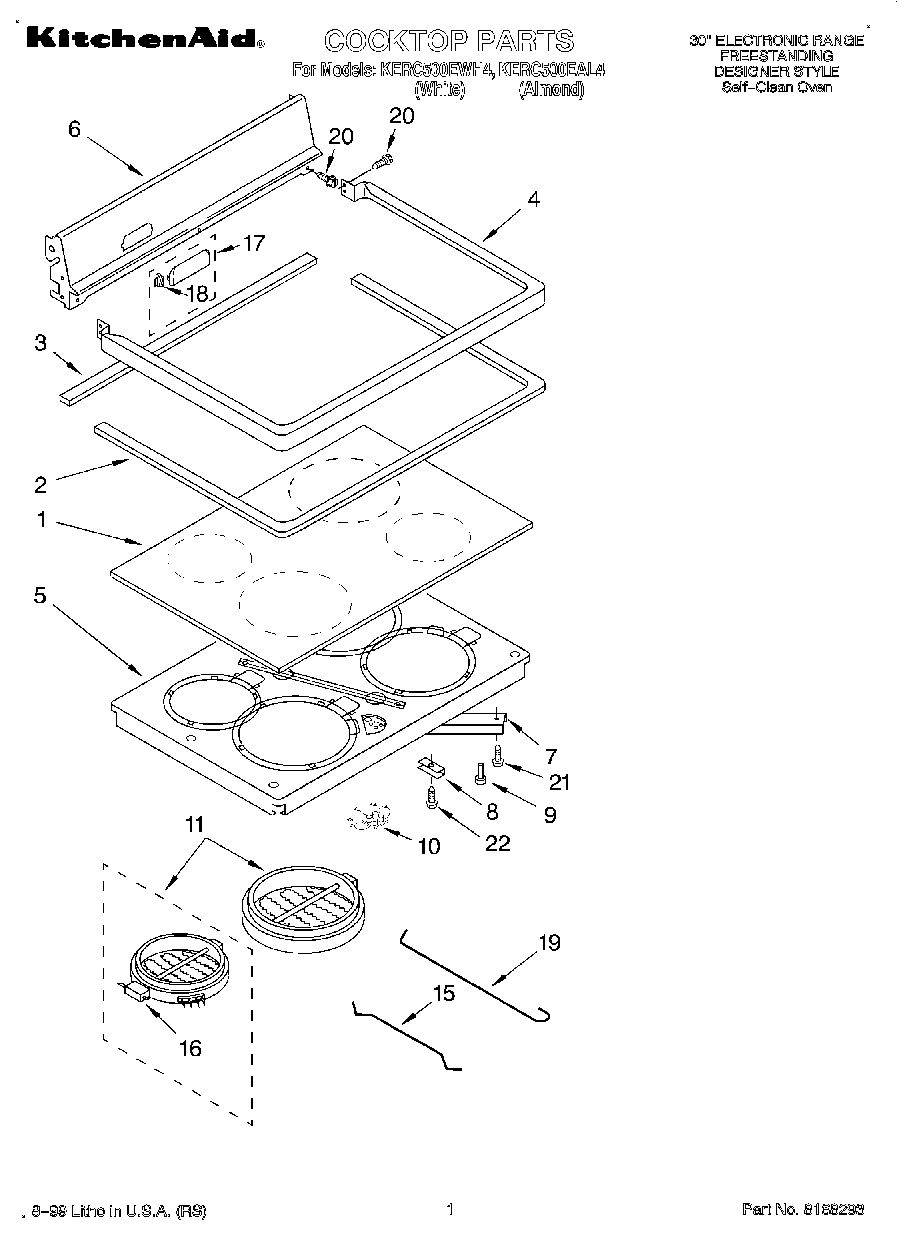

KERC500EWH4 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Almond Mdl.)
1Cooktop, Ceran (White Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Almond)
4Frame, Cooktop (White)
5Support, Element
6Back Splash (Almond)
6Back Splash (White)
7Brace, Support
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11Element, Surface (7“ R.F. 1700W)
11Element, Surface (8“ R.R. 2100W)
11W10823694 Whirlpool Surface Element
11Element, Surface (6“ L.R. 1400W)
15Rod, Small Ceran Element
16Limiter, Temp (1700W – RF)
16Limiter, Temp (2100W – RR)
16Limiter, Temp. (1400 W – LR)
16Limiter, Temp (2400W – LF)
17Cover, Vent (White)
17Cover, Vent (Almond)
18Clip, Vent Cover
19Rod, Large Ceran Element
20Back Splash (Screw (4) 10AB x 1/2“)
21Screw (4) 10 x 1/2
22Screw, (4) 10PH-B x 3/4
