KERC500EWH5 01 – COOKTOP

Products

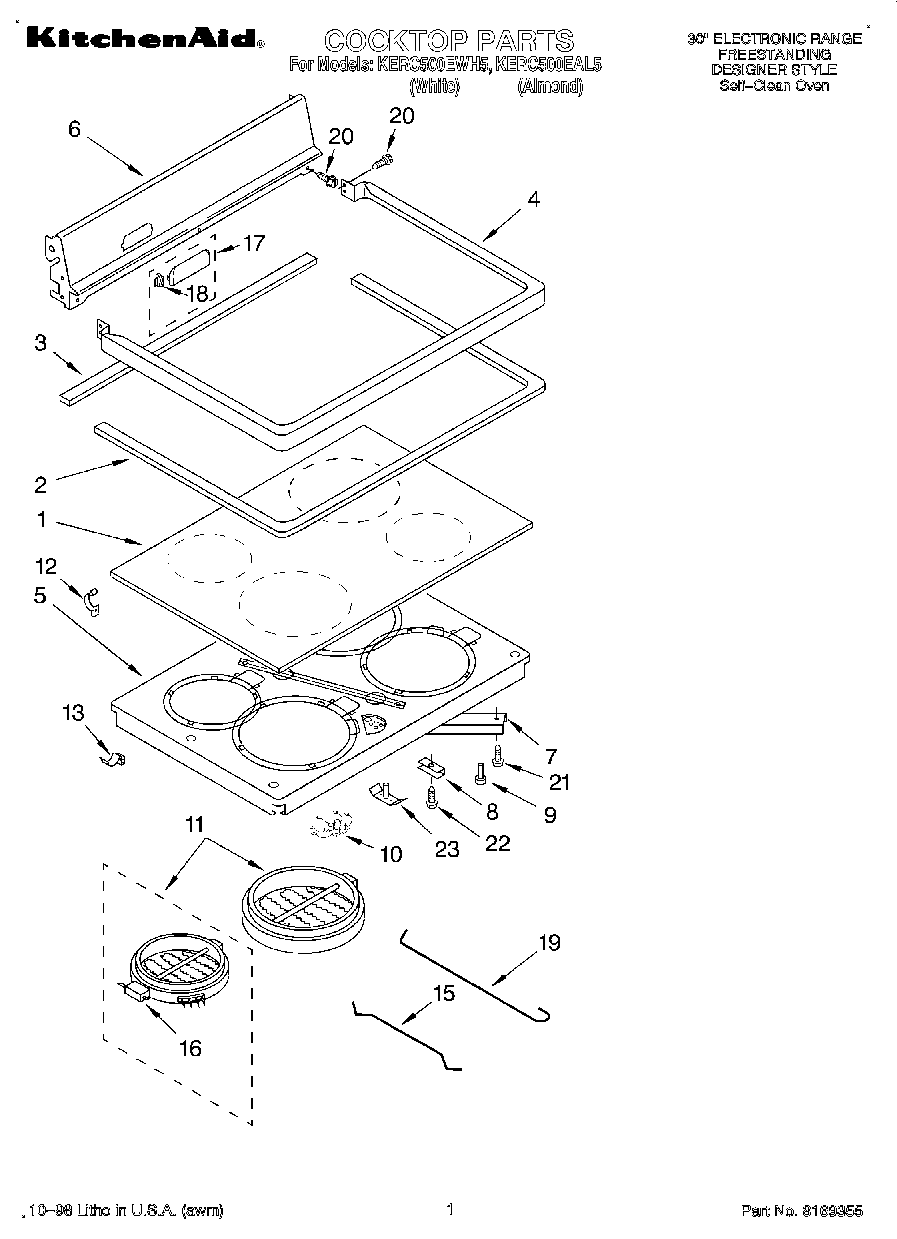

PositionProduct
1Cooktop, Ceran (White Mdl.)
1Cooktop, Ceran (Almond Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (White)
4Frame, Cooktop (Almond)
5Support, Element
6Back Splash (Almond)
6Back Splash (White)
7Brace, Support
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823694 Whirlpool Surface Element
11Element, Surface (2200W – RR)
11W10823698 Whirlpool Surface Element Right Rear
11W10823699 Whirlpool Right Front Surface Element
128528351 Whirlpool Clip
13WP90016 Whirlpool Clip
15Rod, Small Ceran Element
16Limiter, Temp. (LF)
16Limiter, Temp. (LR-RF-RR)
17Cover, Vent (White)
17Cover, Vent (Almond)
18Clip, Vent Cover
19Rod, Large Ceran Element
20Back Splash (Screw (4) 10AB x 1/2“)
21Screw (4) 10 x 1/2
22Screw, (4) 10PH-B x 3/4
23WP9781235 Whirlpool Clip
