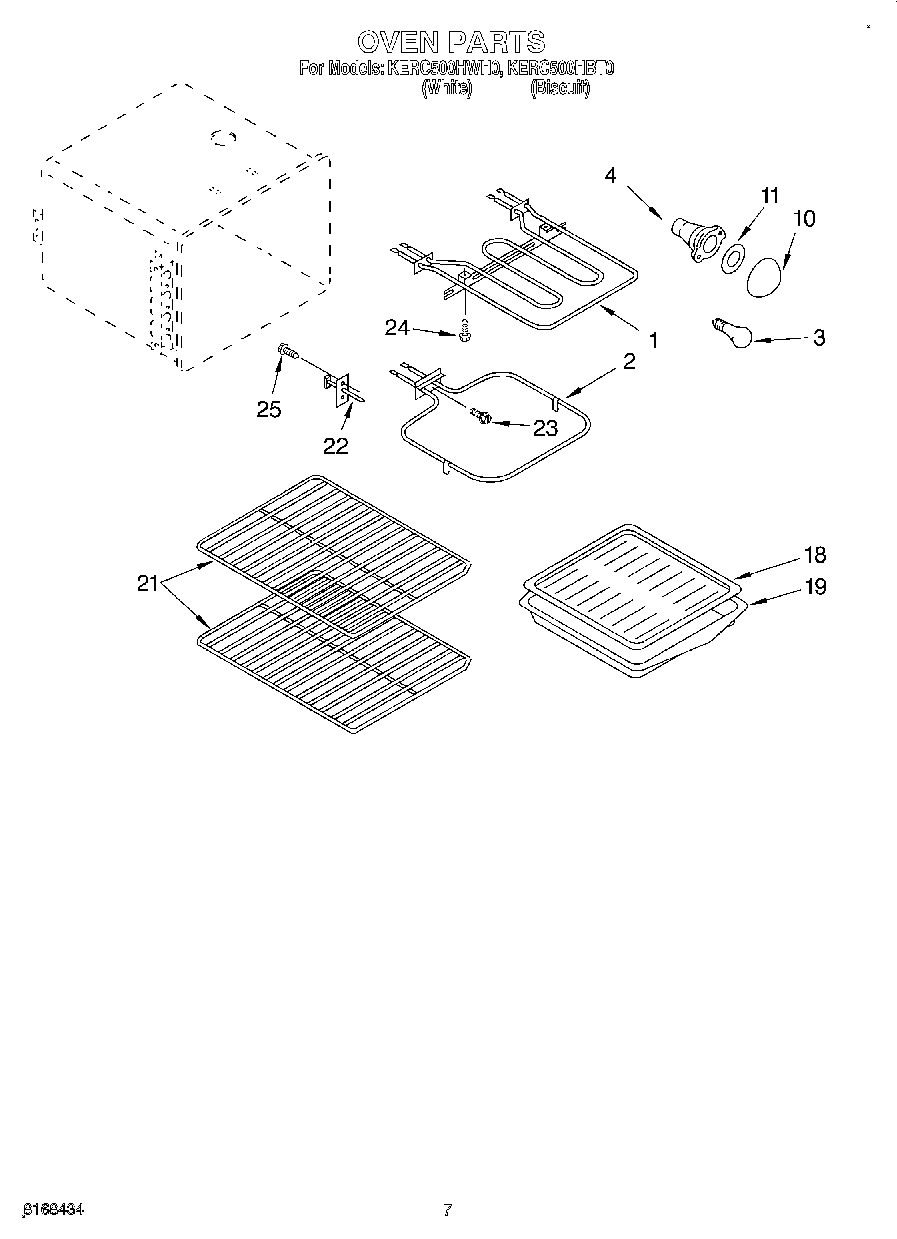

KERC500HBT0 05 – OVEN

Written by

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
10	WP9781049 Whirlpool Light Lens
11	WP3184533 Whirlpool Range Light Lens Gasket
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
21	Rack, Standard
22	Sensor
23	Screw
24	340184 Whirlpool Screw
25	WP4159387 Whirlpool Compactor Screw
