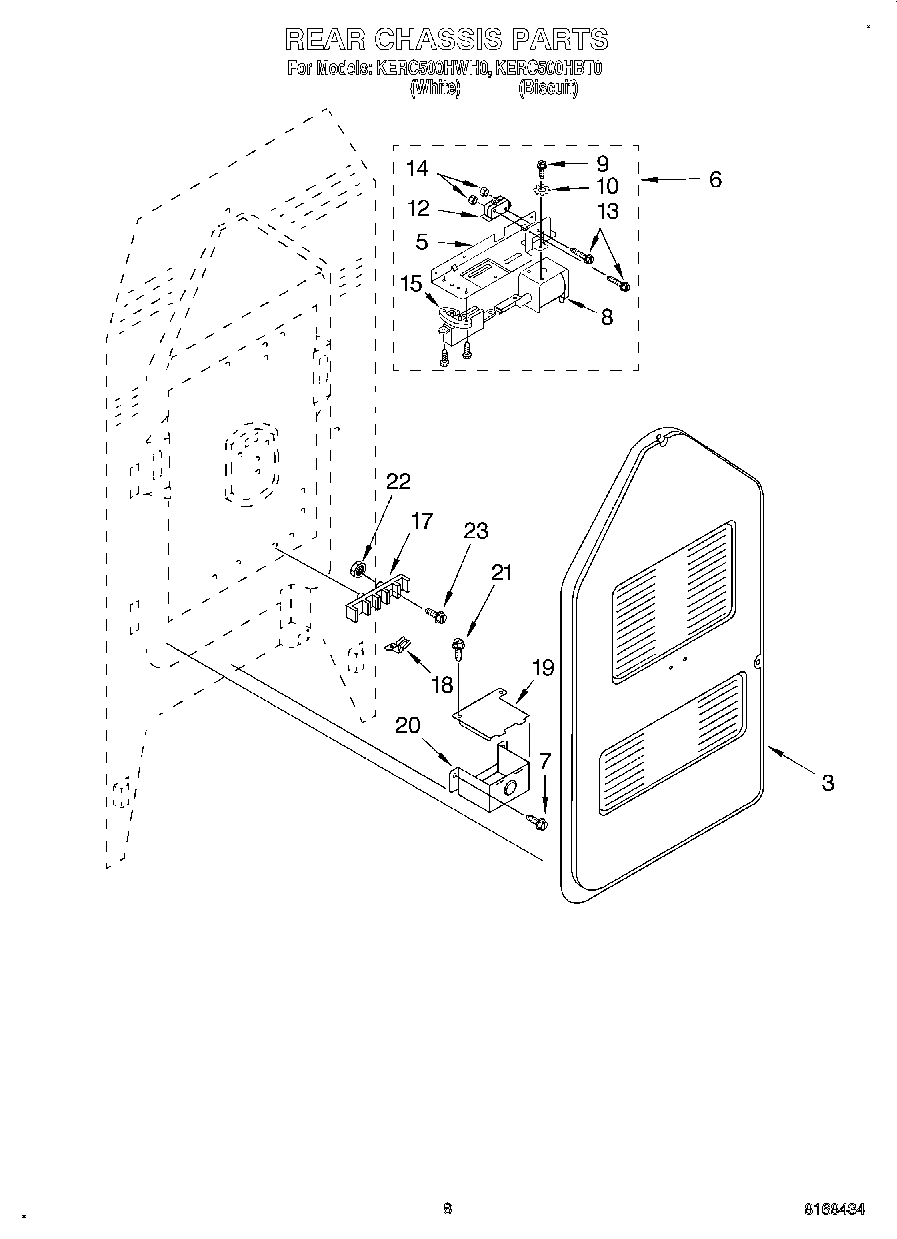

KERC500HBT0 06 – REAR CHASSIS, OPTIONAL

KERC500HBT0 06 – REAR CHASSIS, OPTIONAL

Written by

in

KERC500HBT0 06 – REAR CHASSIS, OPTIONAL

Products

Position	Product
3	Panel, Rear
5	Bracket, Lock
6	Oven Lock Assembly (Includes No.21)
7	WP4159387 Whirlpool Compactor Screw
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
13	Nut (2)
15	Single Position Device (Not Serviced)
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
19	Cover, Terminal Box
20	WPL 9752344
21	Screw (4) 10 x 1/2
22	WP112432 Whirlpool Nut Assembly
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Green)
23	8212471 Whirlpool Oven Paint
23	Wire (14 Ga. 150 c Orange)
23	Grease
23	Wire (14 Ga. 150 c Yellow)
23	18 Ga. 80~c Rating (Red)
23	Wire (14 Ga. 200 c Brown)
23	1
23	WPL 9753680
23	WPL 9752771
23	Golden Harvest
23	WPL 9753681
23	Screw, (2) 10-16 x 1
23	WPL 9753685
23	WPL 9753687
23	WPL 9753682
23	WPL 9750744
23	Wire (14 Ga. 150 c Brown)
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	511873 Whirlpool Refrigerator Paint
23	350942 Whirlpool Spray Paint
23	Golden Harvest (Uncut)
23	SCREW
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	WPL 9781542
23	WPL 9751745
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	285006 Whirlpool Spray
23	WPW10339879 Whirlpool Wire Tie
23	Wire, 25“ Roll (White 14 GA.)
23	350930 Whirlpool White Spray Paint
