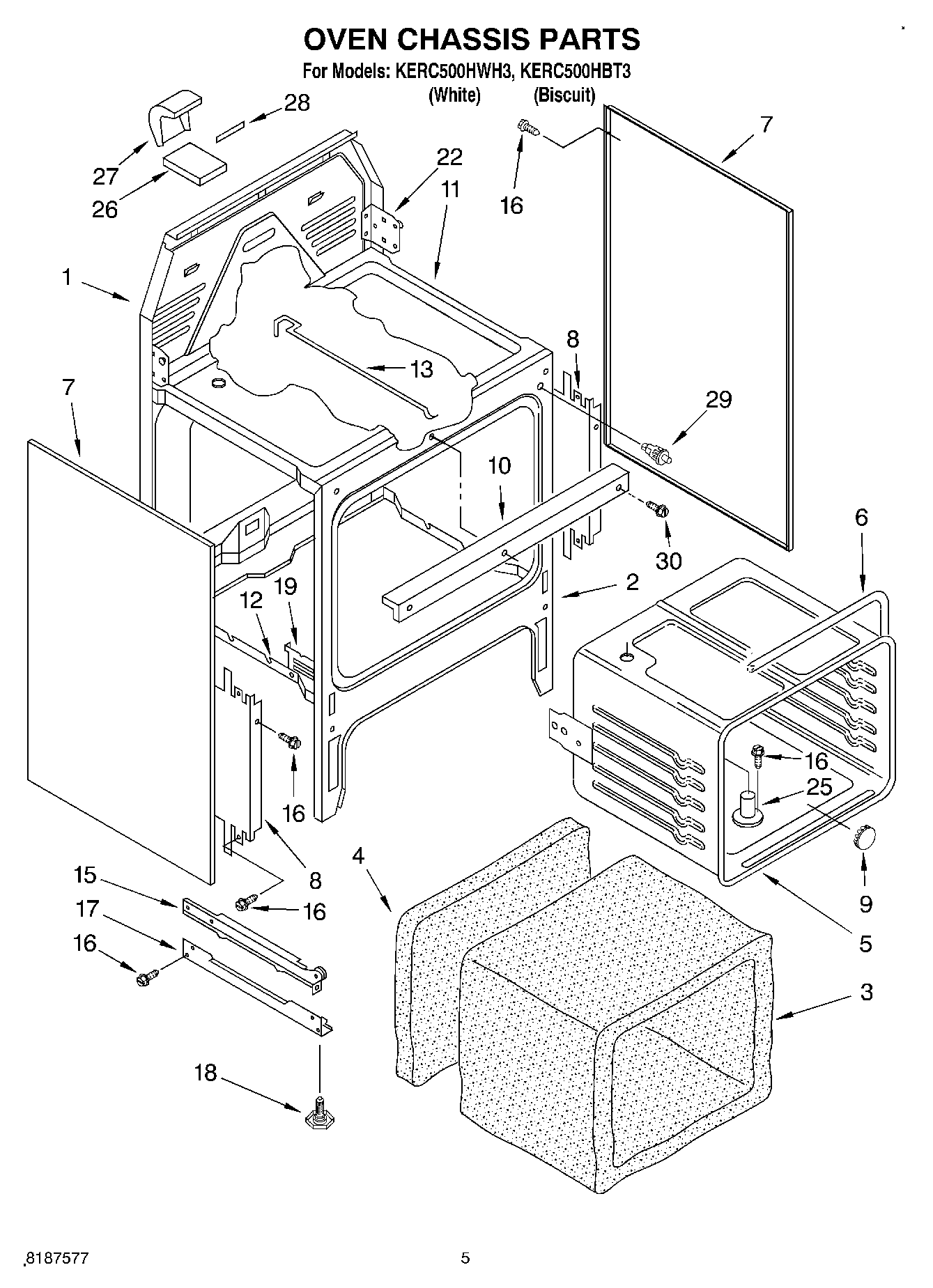

KERC500HBT3 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Biscuit)
7	Body, Side (White)
8	Shield, Insulation
9	Button, Plug
10	Guard, Wire
11	Burner Box
12	Oven Bottom
13	Rod, Lock
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	WP4159387 Whirlpool Compactor Screw
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
25	Vent Tube
26	Cover, Vent
27	Back, Vent
28	Vent Gasket
29	Door Switch (Oven Light)
30	Screw
