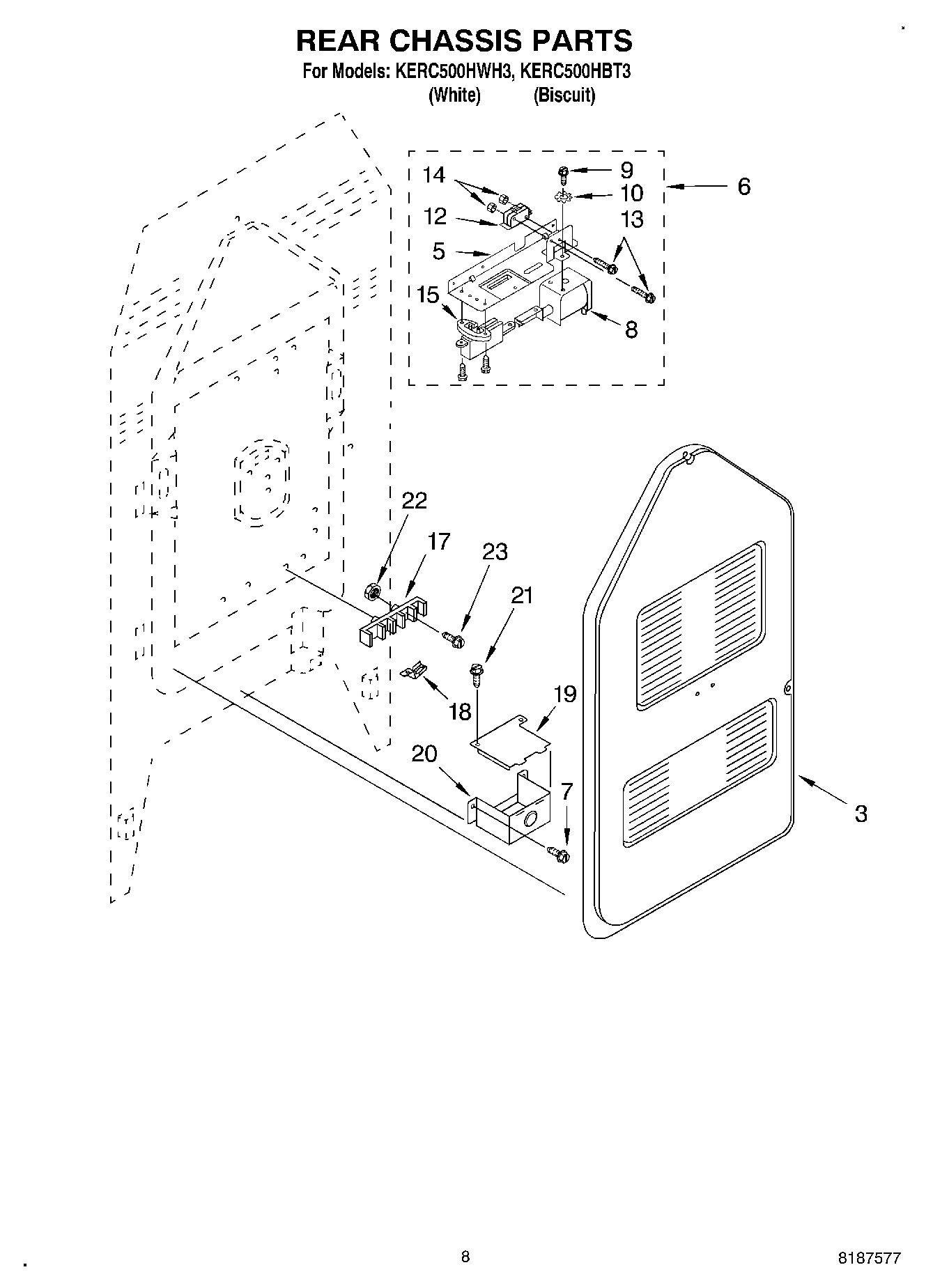

KERC500HBT3 06 – REAR CHASSIS, OPTIONAL

Products

Position	Product
3	Panel, Rear
5	Bracket, Lock
6	Oven Lock Assembly (Includes No.21)
7	WP4159387 Whirlpool Compactor Screw
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Single Position Device (Not Serviced)
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
19	Cover, Terminal Box
20	WPL 9752344
21	Screw (4) 10 x 1/2
22	WP112432 Whirlpool Nut Assembly
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 200 c Brown)
23	1
23	WPL 9781903
23	WPL 9782137
23	Grease
23	8212471 Whirlpool Oven Paint
23	WPL 9781930
23	WPL 9753687
23	WPL 9753682
23	WPL 9753680
23	WPL 9752771
23	WPL 9750744
23	Screw, (2) 10-16 x 1
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	511873 Whirlpool Refrigerator Paint
23	4392901 Whirlpool Biscuit Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	SCREW
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire (14 Ga. 150 c Green)
23	350942 Whirlpool Spray Paint
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Clip, Ground Wire
23	WPL 9751745
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	285006 Whirlpool Spray
23	WPW10339879 Whirlpool Wire Tie
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	350930 Whirlpool White Spray Paint
