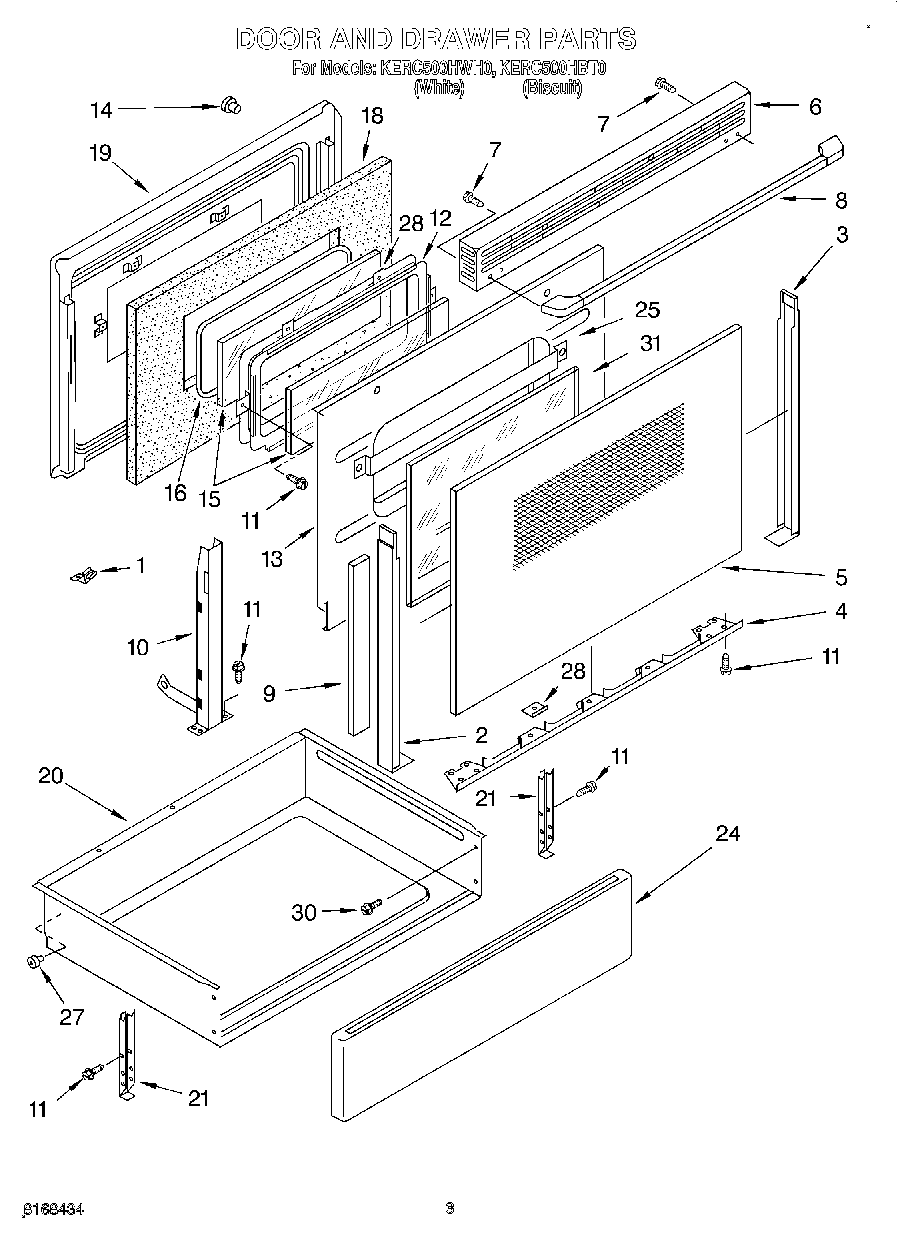

KERC500HWH0 03 – DOOR AND DRAWER

Products

Position	Product
1	Retainer, Glass
2	Trim, Door-Left (White)
2	Trim, Door-Left (Biscuit)
3	Trim, Door-Right (Biscuit)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (Biscuit)
4	Trim, Door Bottom (White)
5	Glass, Door Front (Biscuit)
5	Glass, Door Front (White)
6	Vent, Door (White)
6	Vent, Door (Biscuit)
7	Vent, Door (Gasket, Vent)
7	Vent, Door (Seal, Door Vent Side)
7	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (White)
8	Handle, Door (Biscuit)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	WP4159387 Whirlpool Compactor Screw
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
18	Insulation
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
24	Front, Drawer (Biscuit)
24	Front, Drawer (White)
25	Channel, Heat
27	WP90296 Whirlpool Clip
27	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
30	Screw (4) 10 x 1/2
31	Baffle, Glass
