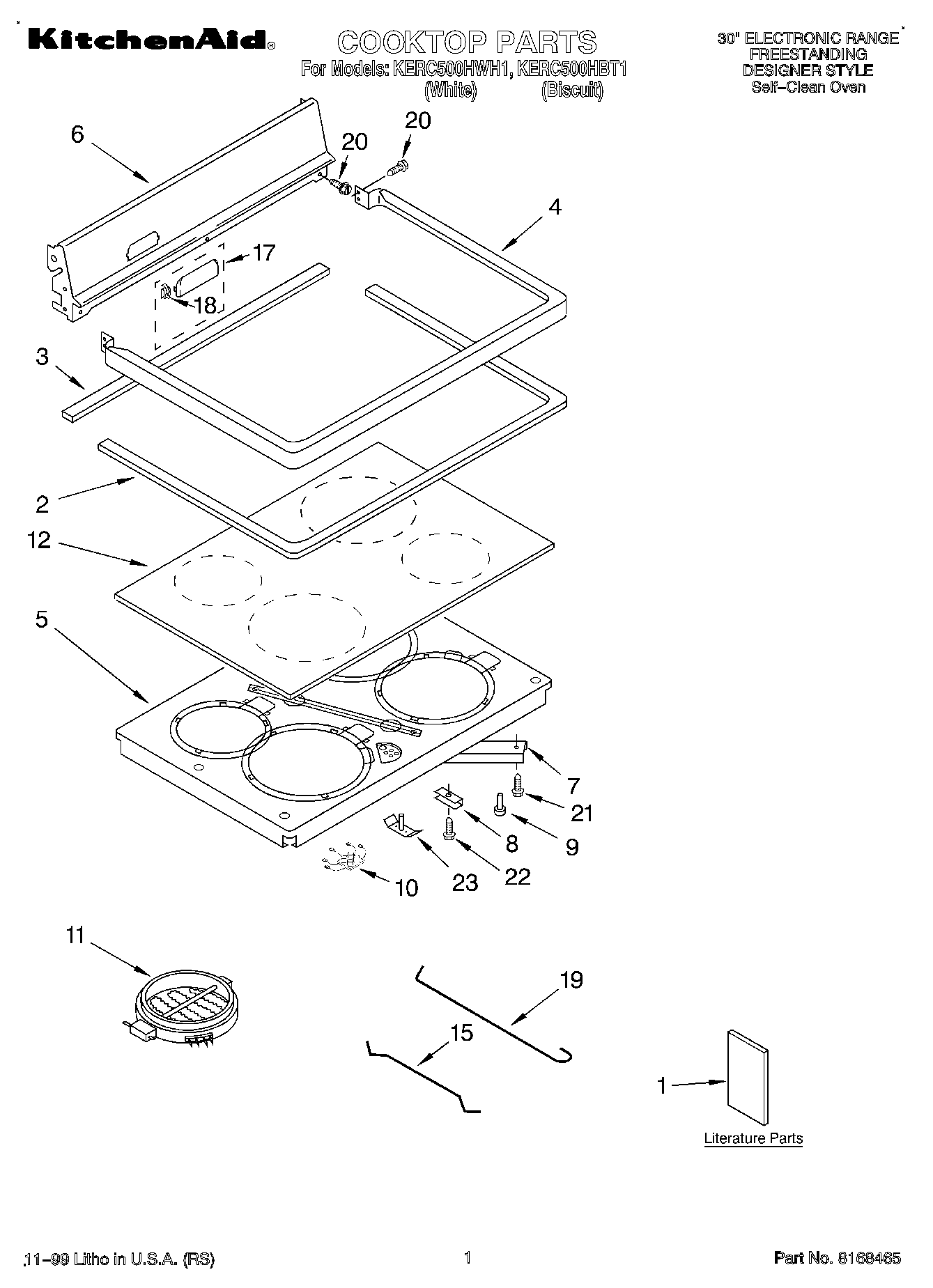

KERC500HWH1 01 – COOKTOP, LITERATURE

KERC500HWH1 01 – COOKTOP, LITERATURE

Written by

in

KERC500HWH1 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Wiring Diagram)
1WPL LIT9752387
1WPL LIT9752776
1Literature Parts (Use & Care Guide)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Biscuit)
4Frame, Cooktop (White)
5Support, Element
6Back Splash (White)
6Back Splash (Biscuit)
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823698 Whirlpool Surface Element Right Rear
11W10823692 Whirlpool Dual Radiant Element
11WP8523700 Whirlpool Surface Element
11W10823699 Whirlpool Right Front Surface Element
12Cooktop, Ceran (White)
12Cooktop, Ceran (Almond)
15Rod, Small Ceran Element
17Cover, Vent (Biscuit)
17Cover, Vent (White)
18Clip, Vent Cover
19Rod, Large Ceran Element
20Back Splash (Screw (4) 10AB x 1/2“)
21Screw (4) 10 x 1/2
22Screw, (4) 10PH-B x 3/4
23WP9781235 Whirlpool Clip
