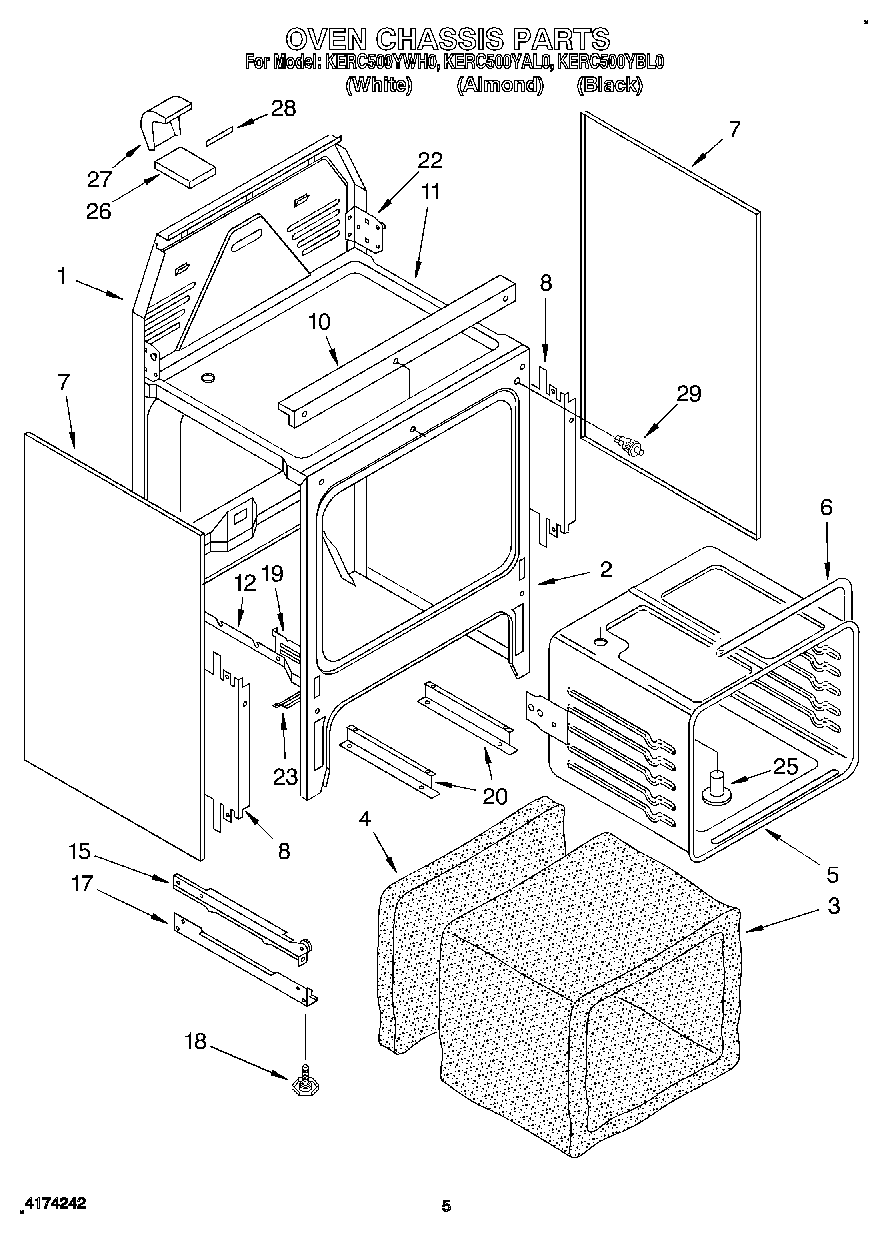

KERC500YAL0 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
1	340184 Whirlpool Screw
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (White)
7	Oven , Side L or R (Black)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
10	SCREW
10	Guard, Wire
11	Burner Box
11	Screw, (2)
12	Oven Bottom
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (2) 8 x 3/8
19	Hinge, Receiver (2)
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Screw (4) 10 x 1/2
23	Bracket, Power Cord
25	Vent Tube
26	Cover, Vent
27	Back, Vent
27	WP4159387 Whirlpool Compactor Screw
28	Vent Gasket
29	Switch, Door
29	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29	WA906B Whirlpool Cooktop Glass Scraper
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
