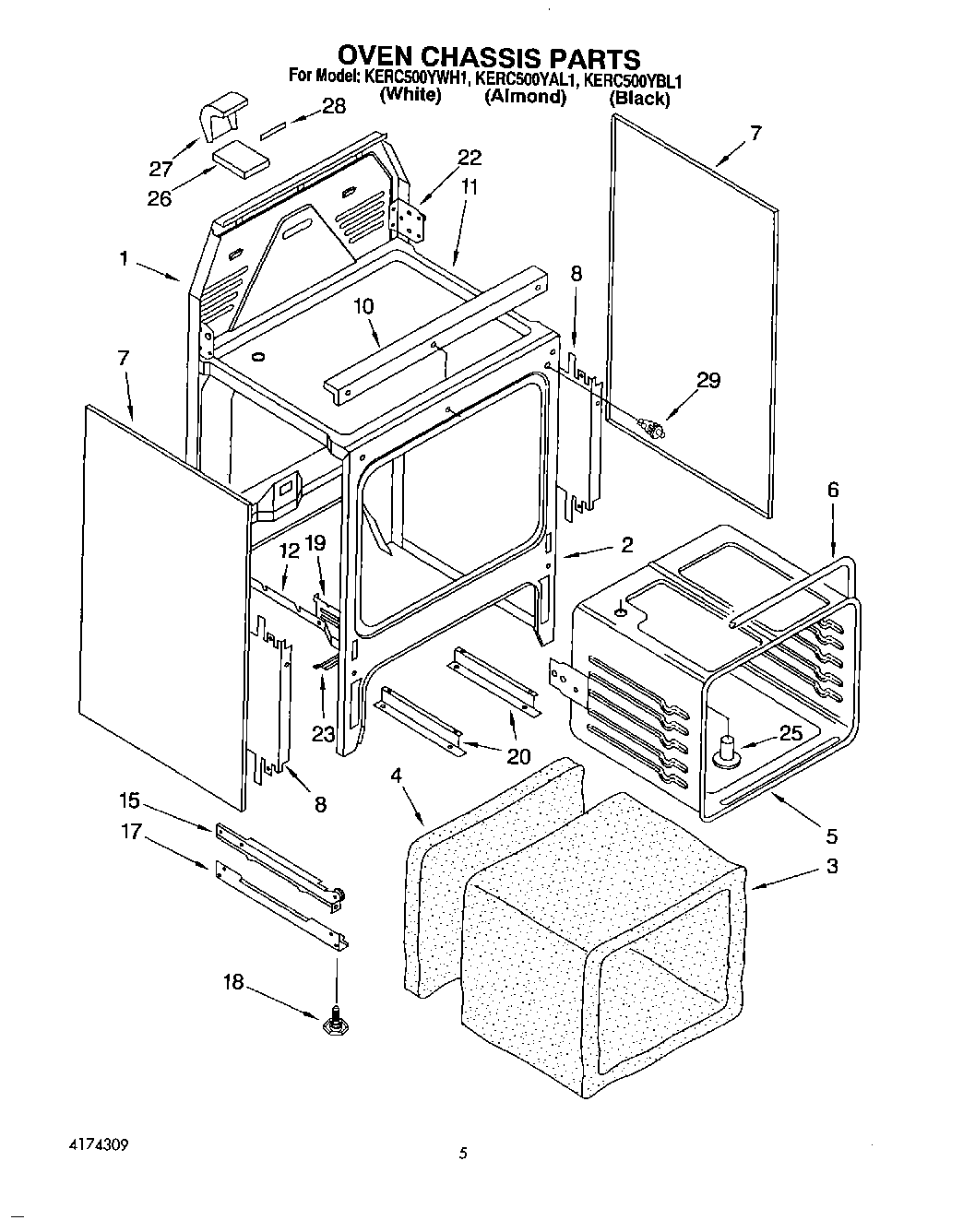

KERC500YAL1 04 – OVEN CHASSIS
Written by
in
KERC500YAL1 04 – OVEN CHASSIS
Products
Position
Product
1
340184 Whirlpool Screw
1
Main Chassis, Back
2
Chassis, Front
3
Insulation, Wrap
4
Insulation, Rear
5
Oven Liner
6
Gasket Oven
7
Oven , Side L or R (White)
7
Oven , Side L or R (Almond)
7
Oven , Side L or R (Black)
8
Shield, Insulation
10
Guard, Wire
10
Screw, Anchor
11
Burner Box
11
Screw, (2)
12
Oven Bottom
15
Rail, Drawer (Right)
15
Drawer Rail, Left
17
Bottom Rail (2)
18
WPW10058460 Whirlpool Appliance Levelling Leg
19
Hinge, Receiver (2)
19
Screw (2) 8 x 3/8
20
Support Rail, Pan
22
Hinge, Cktp.-Left
22
Hinge, Cktp.-Right
23
Bracket, Power Cord
25
Vent Tube
26
Cover, Vent
27
Back, Vent
27
WP4159387 Whirlpool Compactor Screw
28
Vent Gasket
29
Switch, Door
29
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
←
