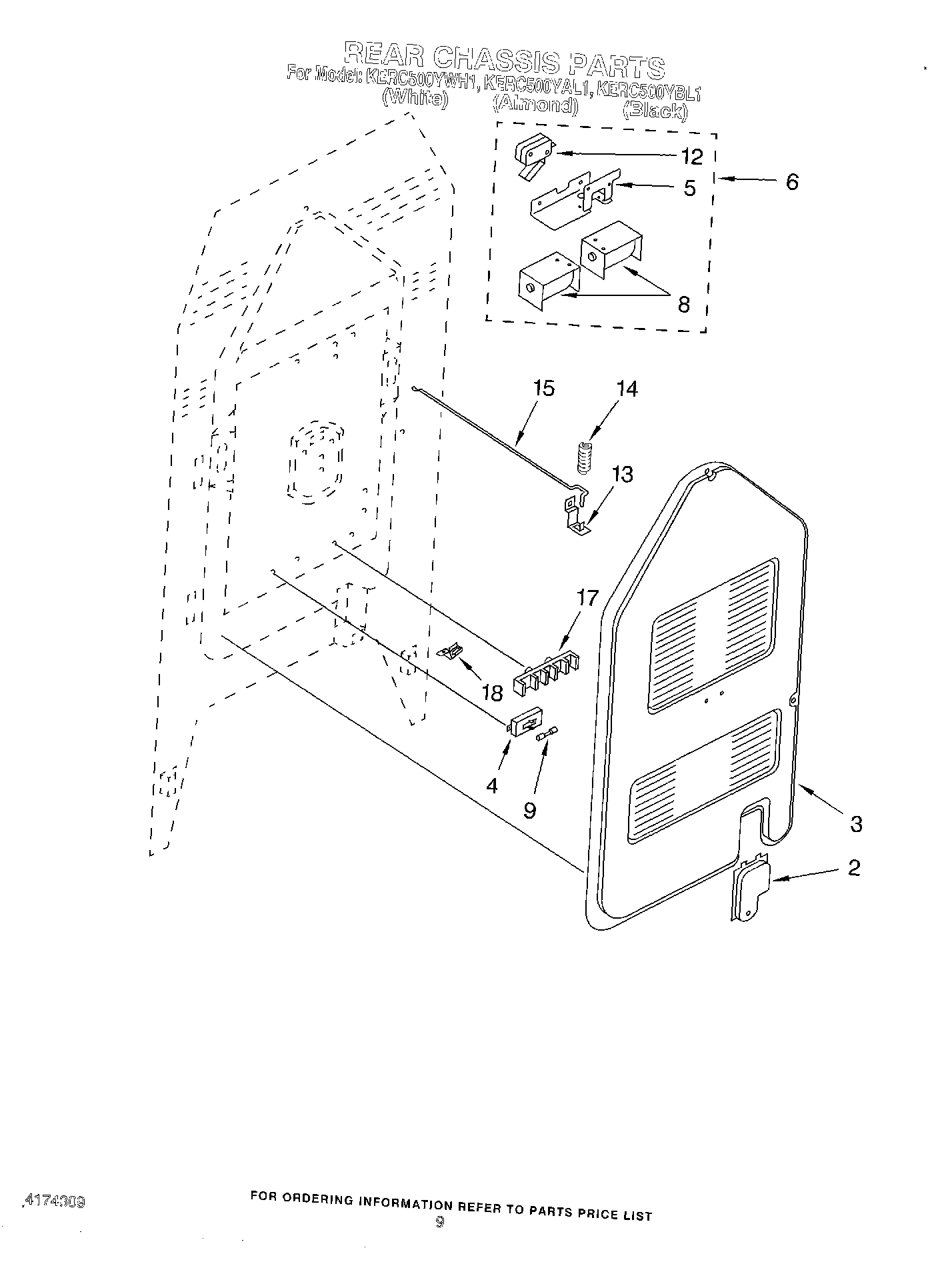

KERC500YAL1 07 – REAR CHASSIS, OPTIONAL

KERC500YAL1 07 – REAR CHASSIS, OPTIONAL

Written by

in

KERC500YAL1 07 – REAR CHASSIS, OPTIONAL

Products

PositionProduct
2Cover, Rear Access
3Rear Panel
3Screw, (2) 10 x 3/8
4Washer
4Screw (1)
4Holder, Fuse
5Bracket, Lock
6Oven Lock Assembly
8Screw, (2) 10-32 x 5/16
8Washer
8Solenoid
9Fuse, 20-Amp xxNOTE
12Screw, (2)
12Switch, Interlock
12Nut (2)
13Bracket, Spring
14Spring, Door Lock
14WP4159387 Whirlpool Compactor Screw
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
17WP112432 Whirlpool Nut Assembly
17Screw, (2) 10-16 x 1
18242831 Whirlpool Oven Wire
18Leveler (Thinner) (2oz.)
188212471 Whirlpool Oven Paint
18Grease
18Wire (14 Ga. 150 c Blue)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Green)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 200 c Brown)
181
18WPL 308498
18285006 Whirlpool Spray
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
18SCREW
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18Platinum (Uncut)
18WPL 72112
18350942 Whirlpool Spray Paint
18Clip, Ground Wire
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18350930 Whirlpool White Spray Paint
