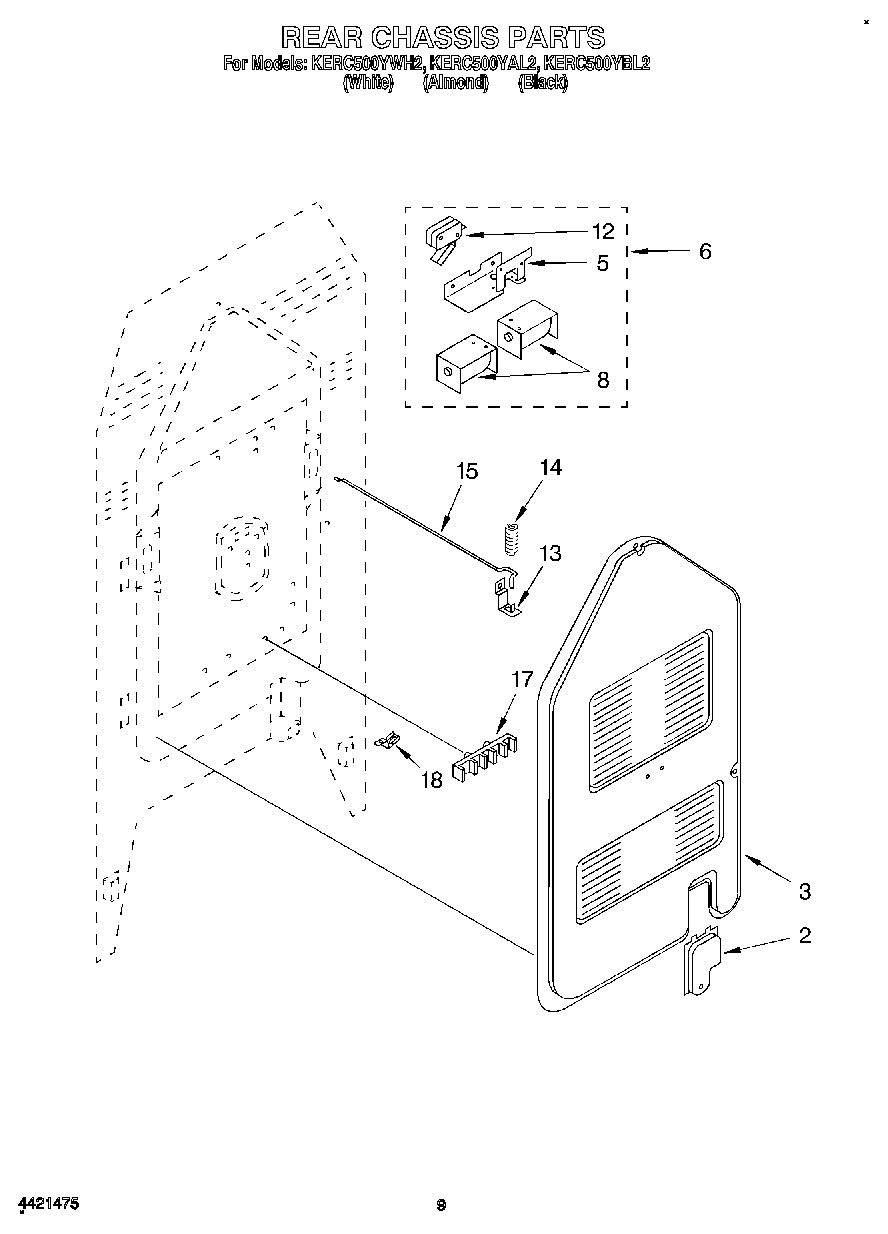

KERC500YAL2 07 – REAR CHASSIS, OPTIONAL

KERC500YAL2 07 – REAR CHASSIS, OPTIONAL

Written by

in

KERC500YAL2 07 – REAR CHASSIS, OPTIONAL

Products

PositionProduct
2Cover, Rear Access
3Screw, (2) 10 x 3/8
3Rear Panel
5Bracket, Lock
6Oven Lock Assembly
8Washer
8Solenoid
8Screw, (2) 10-32 x 5/16
12Switch, Interlock
12Screw, (2)
12Nut (2)
13Bracket, Spring
14WP4159387 Whirlpool Compactor Screw
14Spring, Door Lock
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
17Screw, (2) 10-16 x 1
17WP112432 Whirlpool Nut Assembly
18242831 Whirlpool Oven Wire
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Orange)
18Grease
188212471 Whirlpool Oven Paint
1818 Ga. 80~c Rating (Red)
181
18Wire (14 Ga. 200 c Brown)
18Wire (12 Ga. 150 c Black)
18WPL 308498
18Wire (14 Ga. 150 c Yellow)
18Clip, Ground Wire
18Wire, 25“ Roll (White 14 GA.)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
18SCREW
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18Platinum (Uncut)
18WPL 72112
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18350942 Whirlpool Spray Paint
18350930 Whirlpool White Spray Paint
