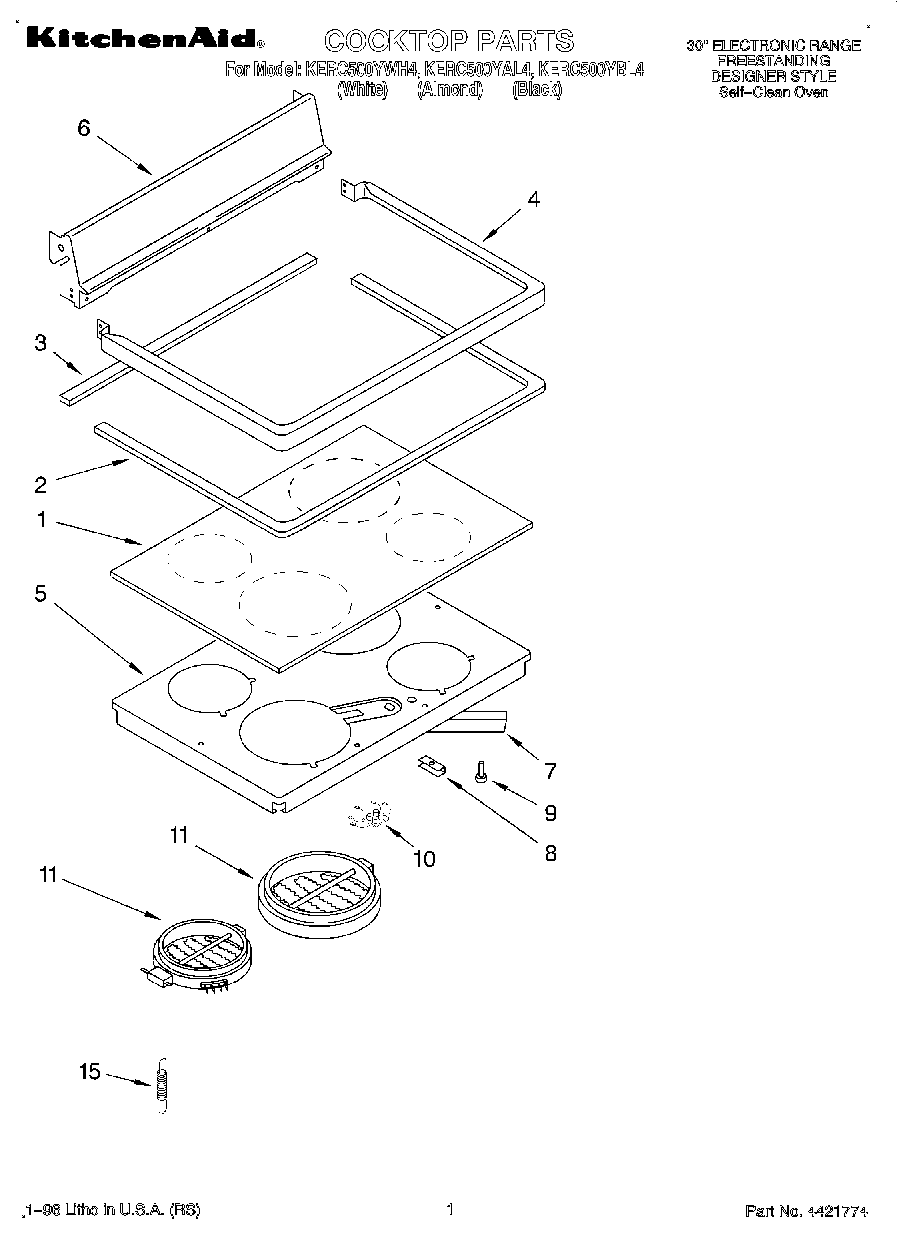

KERC500YAL4 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (White Mdl.)
1	Cooktop, Ceran (Almond/Black Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (Black)
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
5	Support, Element
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (Black)
6	Back Splash (Almond)
6	Back Splash (White)
7	Brace, Support
7	WP3387230 Whirlpool Screw
8	Screw, (4) 10PH-B x 3/4
8	Support Clip (4)
9	238614 Whirlpool Bumper Hinge
9	Bumper (4) (Screw, Anchor)
10	Hot Light Element, Surface
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (6“ L.R. 1400W)
11	Element, Surface (8“ R.R. 2100W)
11	Element, Surface (9“ L.F. 2400W)
15	Spring (12)
