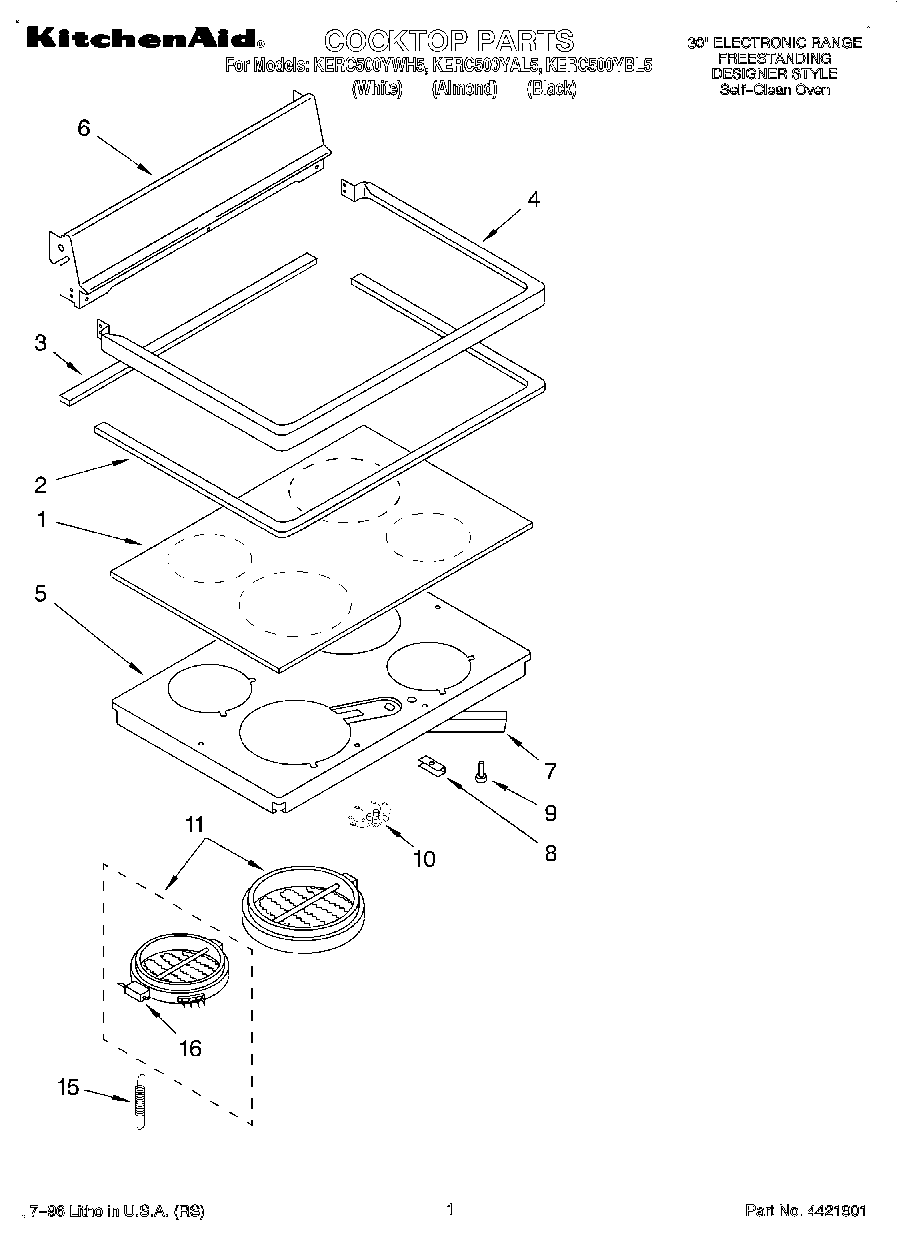

KERC500YAL5 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran (Almond/Black Mdl.)
1	Cooktop, Ceran (White Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (Black)
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
5	Support, Element
6	Back Splash (Black)
6	Back Splash (Almond)
6	Back Splash (White)
6	Back Splash (Screw (4) 10AB x 1/2“)
7	WP3387230 Whirlpool Screw
7	Brace, Support
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	WP9781235 Whirlpool Clip
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (9“ L.F. 2400W)
11	Element, Surface (6“ L.R. 1400W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (8“ R.R. 2100W)
15	Spring (12)
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp. (2400 W – LF)
16	Limiter, Temp. (1400 W – LR)
