KERC500YBL0 01 – COOKTOP, LITERATUREadmin2025-04-26T09:55:33+00:00KERC500YBL0 01 – COOKTOP, LITERATURE
Products
| Position | Product |
|---|
| Wiring Diagram |
| Instructions, Installation |
| Use And Care Guide |
| Guide, Auto Set |
| WPL LIT9780689 |
| WPL LIT9780944 |
| Tech Sheet-K/A |

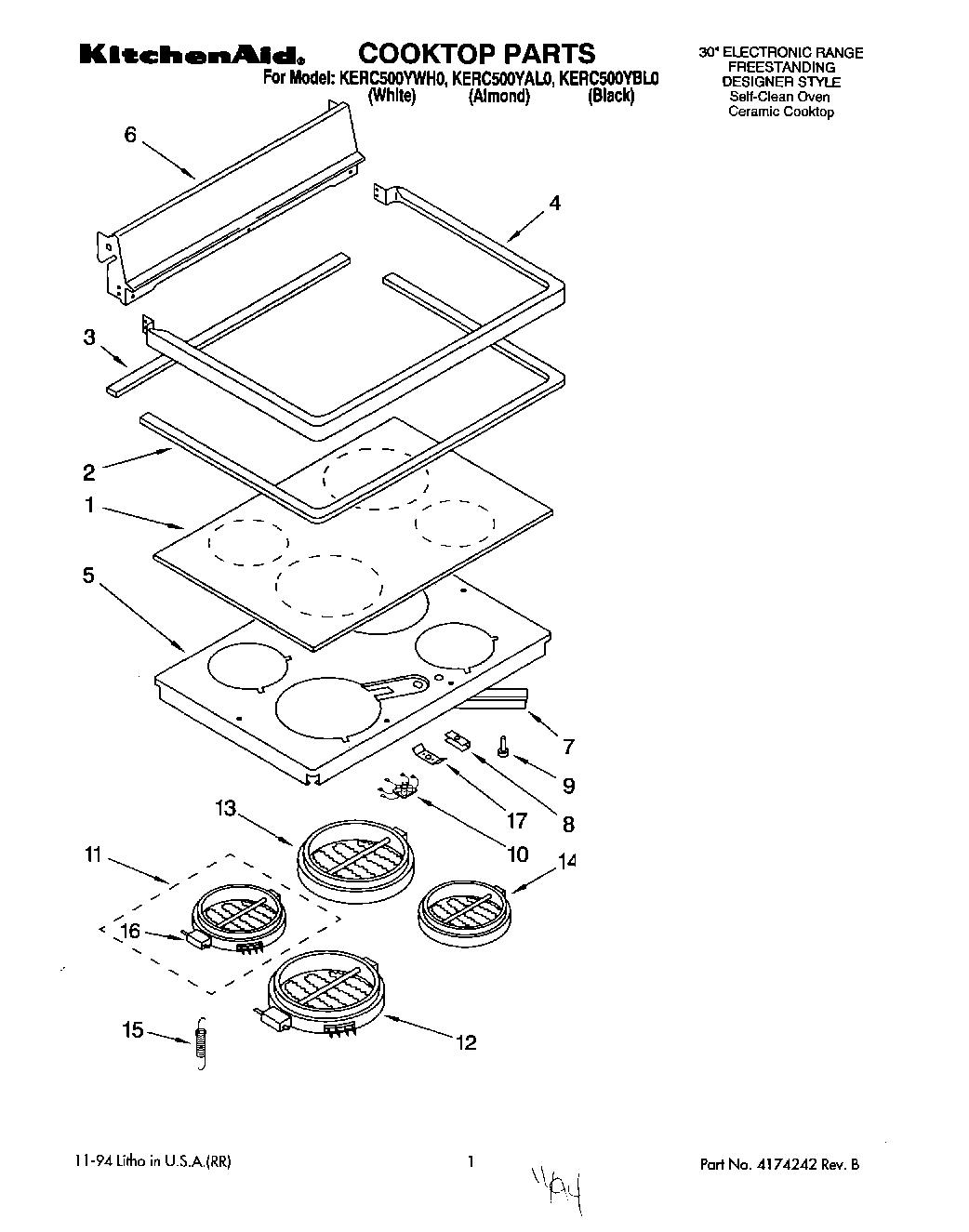

| 1 | Cooktop, Ceran (White Mdl.) |
| 1 | Cooktop, Ceran (Almond/Black Mdl.) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Rear Gasket |
| 4 | Frame, Cooktop (White) |
| 4 | Frame, Cooktop (Almond) |
| 4 | Frame, Cooktop (Black) |
| 5 | Support, Element |
| 6 | Back Splash (White) |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 6 | Back Splash (Almond) |
| 6 | Back Splash (Black) |
| 7 | WP3387230 Whirlpool Screw |
| 7 | Brace, Support |
| 8 | Support Clip (4) |
| 8 | Screw, (4) 10PH-B x 3/4 |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light Element, Surface |
| 11 | 6`` - LR |
| 12 | 9`` L.F. |
| 13 | 8`` - RR |
| 14 | W10823693 Whirlpool Surface Element |
| 15 | Spring (12) |
| 16 | Limiter, Temp. (6`` L.R.) |
| 16 | Limiter Temp. (8`` - RR) |
| 16 | Limiter, Temp. (9`` L.F.) |
| 16 | Limiter Temp. (7`` - RF) |
| 17 | Screw, Anchor |
