KERC500YBL1 01 – COOKTOP, LITERATURE

KERC500YBL1 01 – COOKTOP, LITERATURE

Written by

in

KERC500YBL1 01 – COOKTOP, LITERATURE

Products

Position	Product
	WPL LIT9780944
	WPL LIT9780933
	WPL LIT9780689
	Repair Parts List
	Instructions, Installation
	Wiring Diagram
	Tech Sheet-K/A

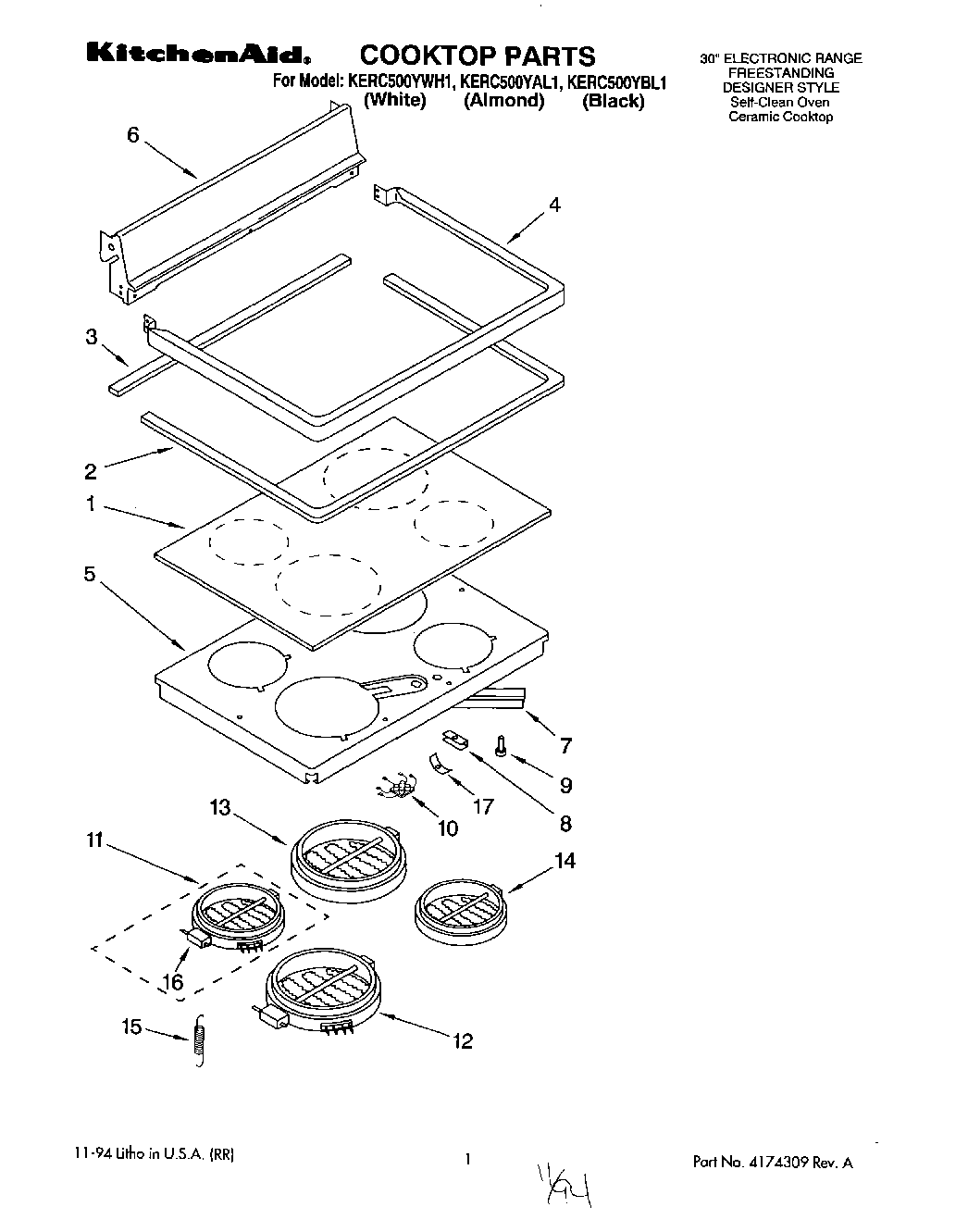

1	Cooktop, Ceran (Black)
1	Cooktop, Ceran (Almond)
1	Cooktop, Ceran (White)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (Black)
5	Support, Element
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (White)
6	Back Splash (Black)
6	Back Splash (Almond)
7	Brace, Support
7	WP3387230 Whirlpool Screw
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	238614 Whirlpool Bumper Hinge
10	Hot Light Element, Surface
11	6“ L.R.
12	9“ L.F.
13	8“ – RR
14	W10823693 Whirlpool Surface Element
15	Spring (12)
16	Limiter, Temp. (6“ L.R.)
16	Limiter Temp. (8“ – RR)
16	Limiter, Temp. (9“ L.F.)
16	Limiter Temp. (7“ – RF)
17	Screw, Anchor
