KERC500YBL3 01 – COOKTOP, LITERATURE

KERC500YBL3 01 – COOKTOP, LITERATURE

Written by

in

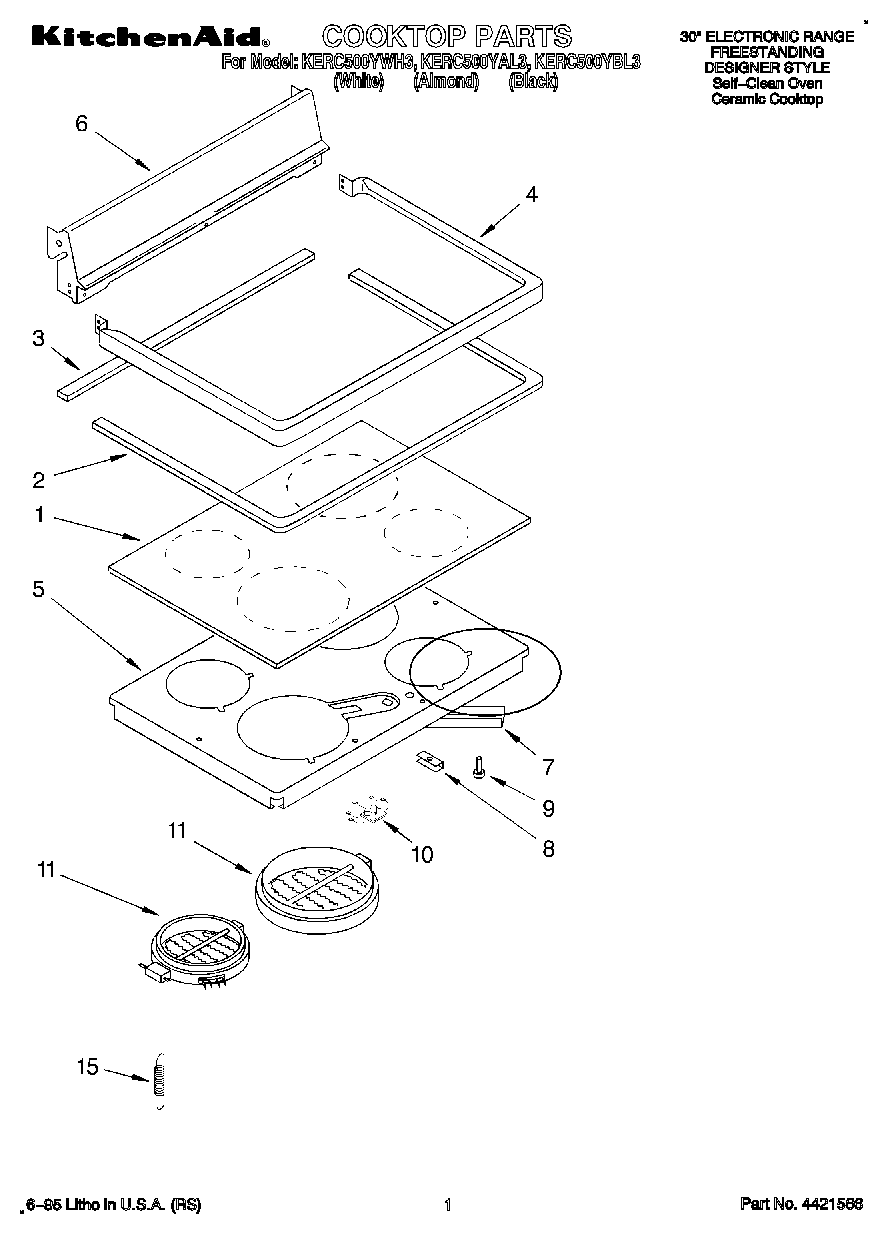

KERC500YBL3 01 – COOKTOP, LITERATURE

Products

PositionProduct
Tech Sheet-K/A
WPL LIT4317161
WPL LIT9780944
WPL LIT9780933
WPL LIT9780689
Instructions, Installation
Wiring Diagram
1Cooktop, Ceran (Almond/Black Mdl.)
1Cooktop, Ceran (White Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Almond)
4Frame, Cooktop (White)
4Frame, Cooktop (Black)
5Support, Element
6Back Splash (White)
6Back Splash (Screw (4) 10AB x 1/2“)
6Back Splash (Black)
6Back Splash (Almond)
7WP3387230 Whirlpool Screw
7Brace, Support
8Screw, (4) 10PH-B x 3/4
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light Element, Surface
11W10823693 Whirlpool Surface Element
118“ – RR
119“ L.F.
116“ L.R.
15Spring (12)
