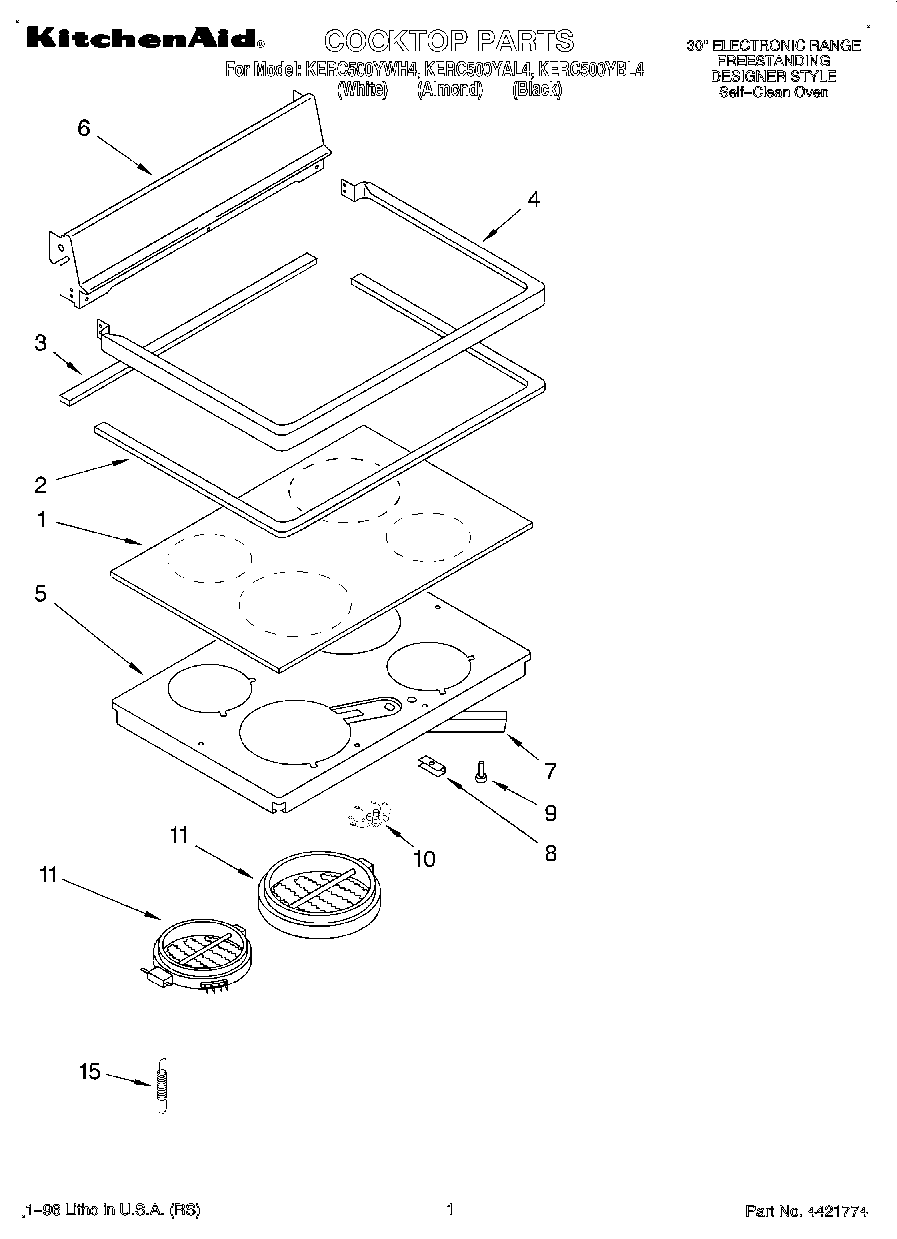

| 1 | Cooktop, Ceran (White Mdl.) |
| 1 | Cooktop, Ceran (Almond/Black Mdl.) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Rear Gasket |
| 4 | Frame, Cooktop (Black) |
| 4 | Frame, Cooktop (White) |
| 4 | Frame, Cooktop (Almond) |
| 5 | Support, Element |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 6 | Back Splash (Black) |
| 6 | Back Splash (Almond) |
| 6 | Back Splash (White) |
| 7 | Brace, Support |
| 7 | WP3387230 Whirlpool Screw |
| 8 | Screw, (4) 10PH-B x 3/4 |
| 8 | Support Clip (4) |
| 9 | 238614 Whirlpool Bumper Hinge |
| 9 | Bumper (4) (Screw, Anchor) |
| 10 | Hot Light Element, Surface |
| 11 | Element, Surface (7`` R.F. 1700W) |
| 11 | Element, Surface (6`` L.R. 1400W) |
| 11 | Element, Surface (8`` R.R. 2100W) |
| 11 | Element, Surface (9`` L.F. 2400W) |
| 15 | Spring (12) |
