KERC500YBL5 01 – COOKTOP

Products

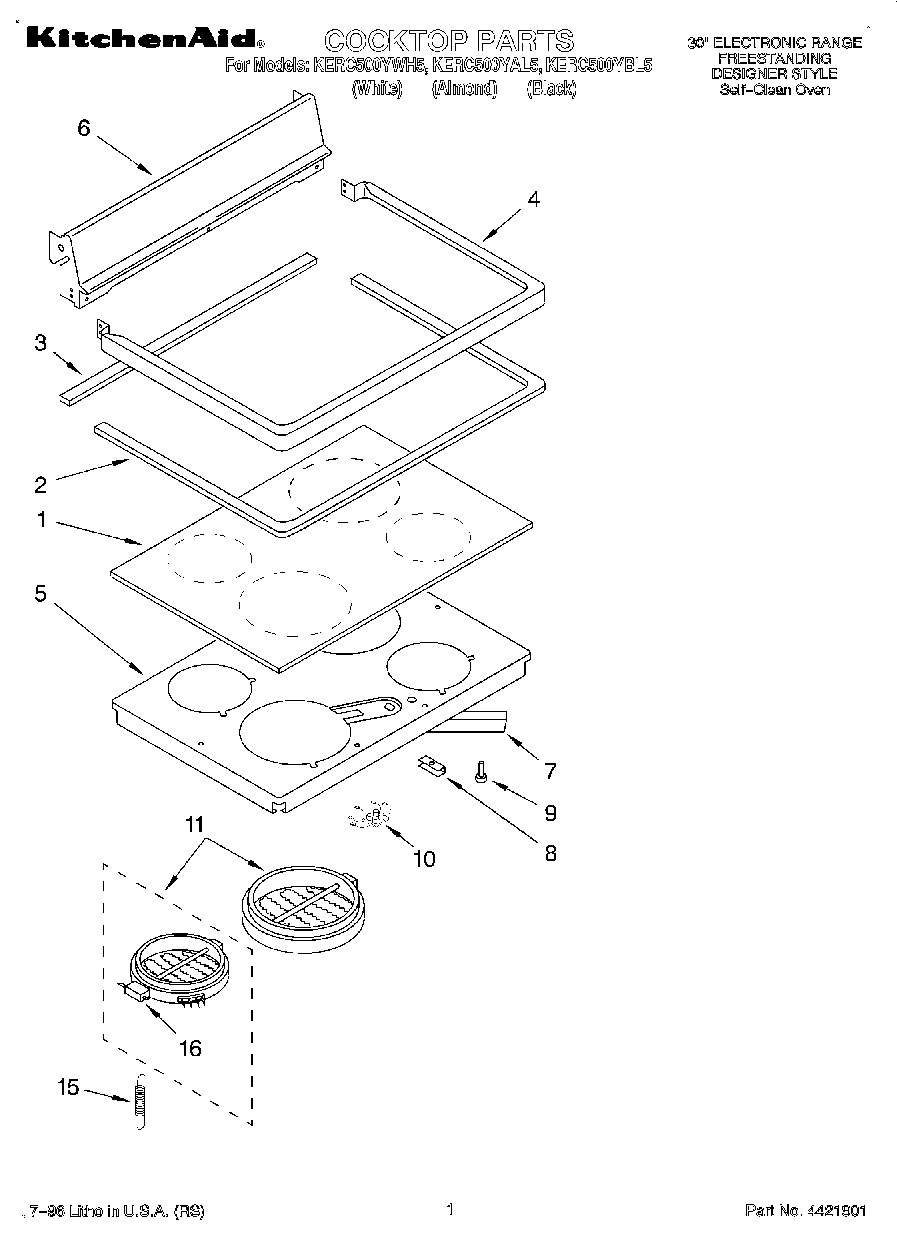

PositionProduct
1Cooktop, Ceran (Almond/Black Mdl.)
1Cooktop, Ceran (White Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Black)
4Frame, Cooktop (White)
4Frame, Cooktop (Almond)
5Support, Element
6Back Splash (Black)
6Back Splash (Almond)
6Back Splash (White)
6Back Splash (Screw (4) 10AB x 1/2“)
7WP3387230 Whirlpool Screw
7Brace, Support
8Support Clip (4)
8Screw, (4) 10PH-B x 3/4
9WP9781235 Whirlpool Clip
9238614 Whirlpool Bumper Hinge
10Hot Light
11Element, Surface (9“ L.F. 2400W)
11Element, Surface (6“ L.R. 1400W)
11Element, Surface (7“ R.F. 1700W)
11Element, Surface (8“ R.R. 2100W)
15Spring (12)
16Limiter, Temp (2100W – RR)
16Limiter, Temp (1700W – RF)
16Limiter, Temp. (2400 W – LF)
16Limiter, Temp. (1400 W – LR)
