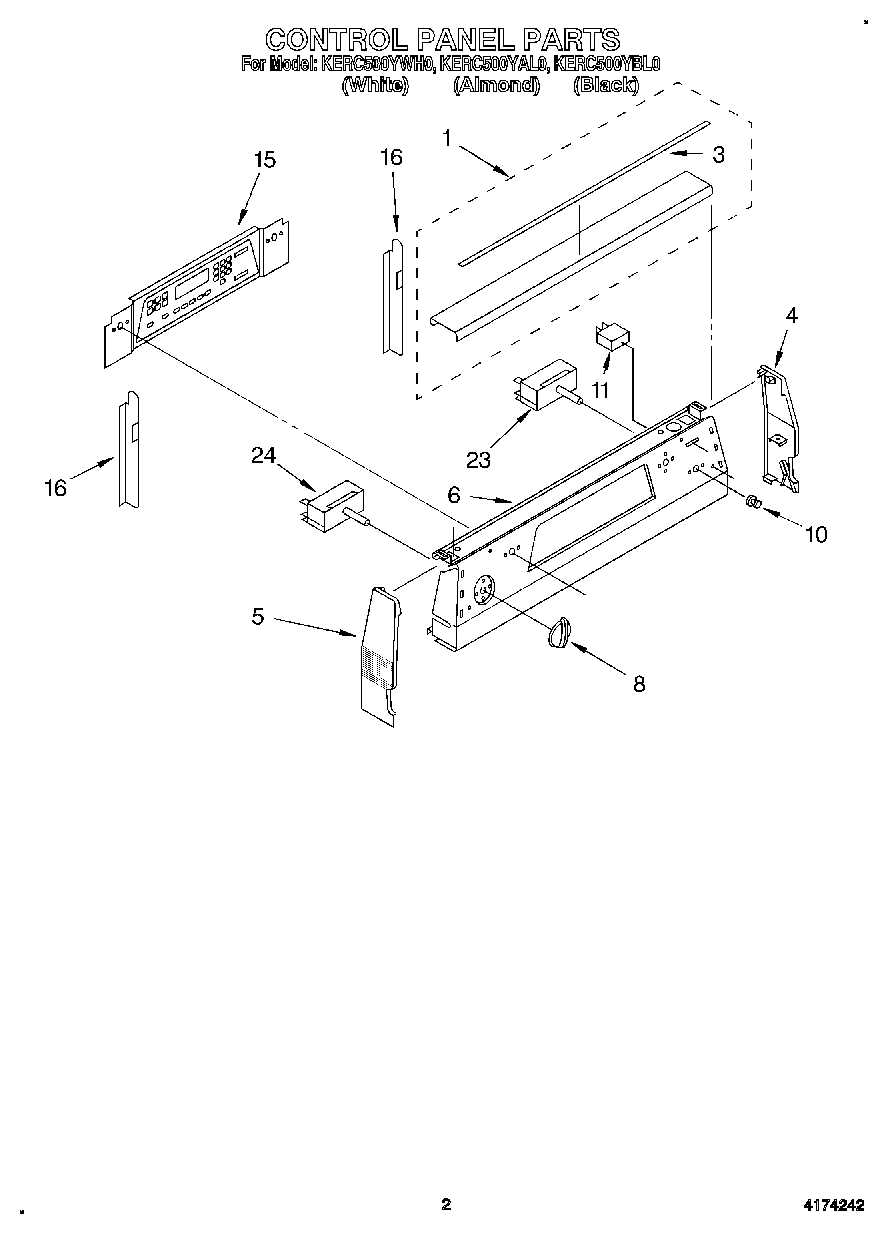

KERC500YWH0 02 – CONTROL PANEL

Products

Position	Product
1	Lamp Cover (Black)
1	Lamp Cover (Almond)
1	Lamp Cover (White)
3	Lamp Cover Insert (White)
3	Lamp Cover Insert (Almond)
3	Lamp Cover Insert (Black)
4	End Cap R.H. (Black)
4	End Cap R.H. (White)
4	End Cap R.H. (Almond)
5	End Cap L.H. (White)
5	End Cap L.H. (Almond)
5	WP4159387 Whirlpool Compactor Screw
5	End Cap L.H. (Black)
6	Panel, Control (Almond)
6	Panel, Control (White)
6	Panel, Control (Black)
6	Panel, Control (Screw, (2) 8 x 3/8)
8	WP9750372FW Whirlpool Knob Assembly
8	Knobs, Control (Black)
8	Knobs, Control (Almond)
10	WP9750343 Whirlpool Light Lens
11	Light Module
15	Oven Control Assembly (Black)
15	Oven Control Assembly (Almond)
15	Oven Control Assembly (White)
16	Brace, Control Pnl
23	WP9750639 Whirlpool Infinite Switch
24	WP9750641 Whirlpool Infinite Switch
24	Infinite Switch (Screw (8) 8-32 x 3/16)
