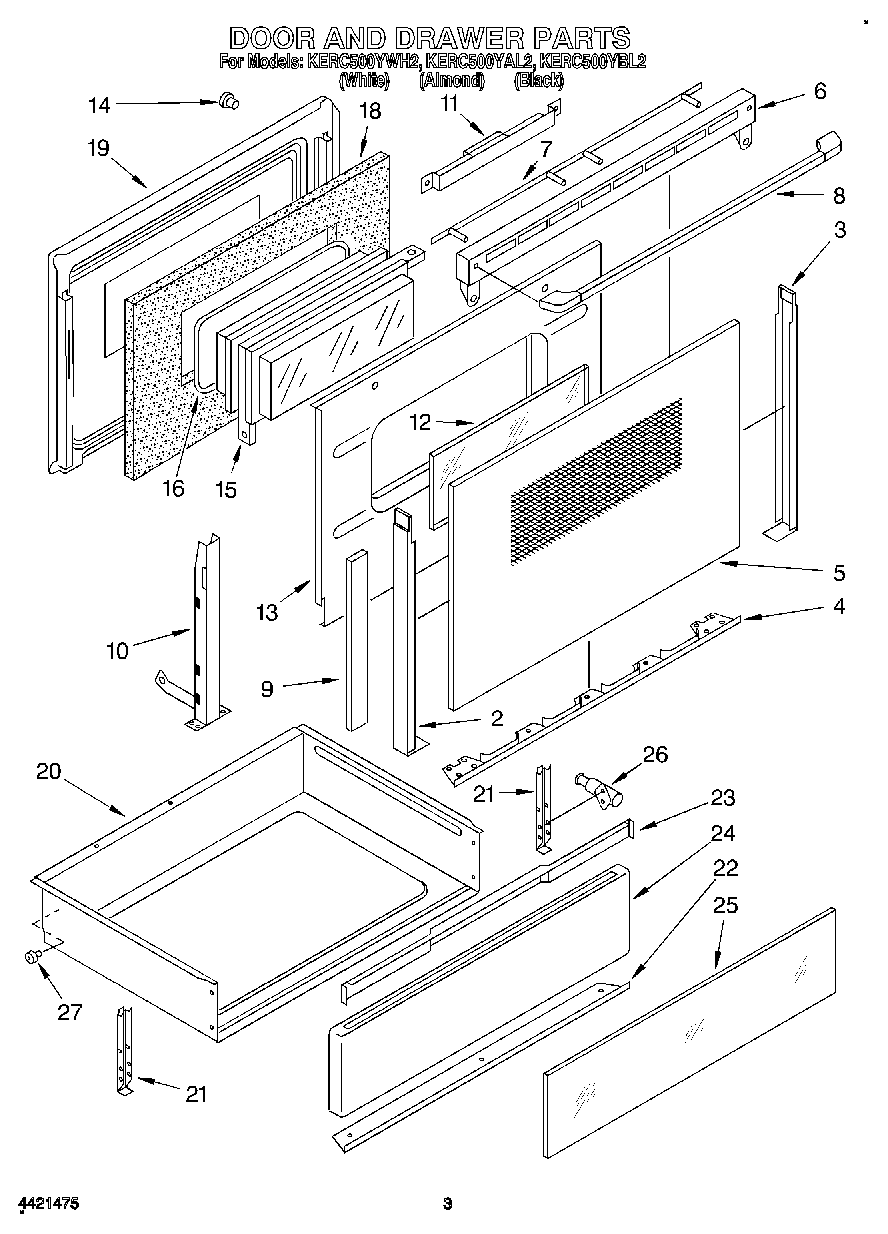

KERC500YWH2 03 – DOOR AND DRAWER

Products

Position	Product
2	Trim, Door-Left (White)
2	Trim, Door-Left (Black)
2	Trim, Door-Left (Almond)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Almond)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Almond)
4	Trim, Door Bottom (Black)
4	Trim, Door Bottom (White)
5	Glass, Door (Black)
5	Glass, Door (White)
5	Glass, Door (Almond)
6	Vent, Door (Almond)
6	Vent, Door (Black)
6	Vent, Door (White)
6	Back Splash (Screw (4) 10AB x 1/2``)
7	Vent Back
8	Handle, Door (Black)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (Almond)
8	Handle, Door (White)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
11	Channel, Heat
12	Baffle, Glass
13	Shield Door
14	238614 Whirlpool Bumper Hinge
15	Window Pack (2)
16	Seal, Window
18	WPW10208653 Whirlpool Insulation
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
21	Screw (4) 10 x 1/2
22	Trim, Drawer Bottm. (Almond)
22	Trim, Drawer Bottm. (White)
22	Trim, Drawer Bottm. (Black)
23	WP4159387 Whirlpool Compactor Screw
23	Trim, Drawer Top (Almond)
23	Trim, Drawer Top (White)
23	Trim, Drawer Top (Black)
24	WPL 4211917
24	Front
24	WPL 4211916
25	WPL 9780326
25	WPL 9750611
25	WPL 9750612
26	WPL 9780806
26	Latch, Drawer
27	814229 Whirlpool Primary Roller
