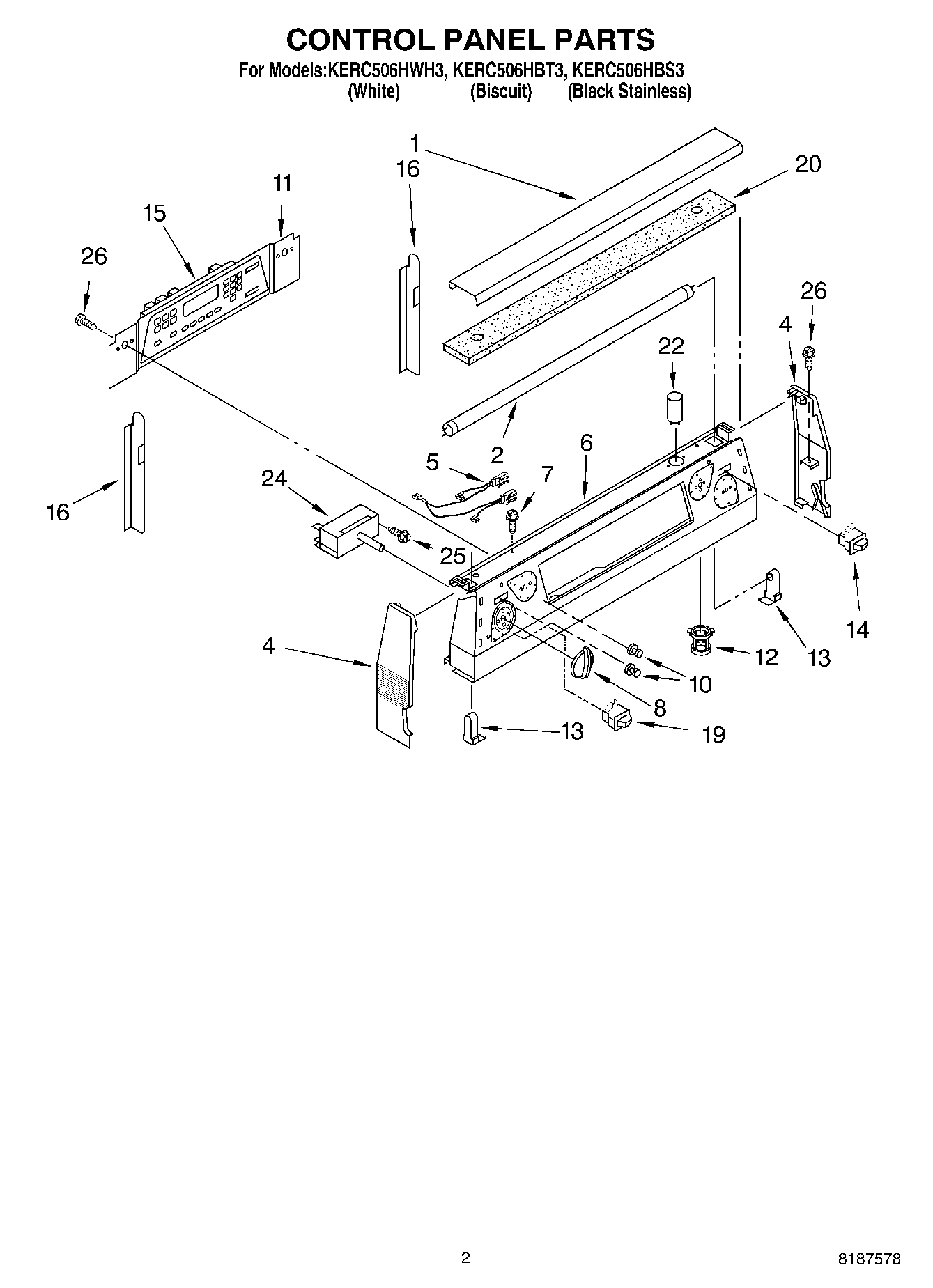

KERC506HBS3 02 – CONTROL PANEL PARTS

KERC506HBS3 02 – CONTROL PANEL PARTS

Written by

in

KERC506HBS3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lamp Cover (White)
1Lamp Cover (Black)
1Lamp Cover (Biscuit)
2WP95292 Whirlpool Fluorescent Light Bulb
4End Cap R.H. (Biscuit)
4End Cap L.H. (Biscuit)
4End Cap (Left Hand) (Black)
4End Cap (Right Hand) (Black)
4End Cap (Left Hand) (White)
4End Cap (Right Hand) (White)
5Light, Indicator
6Panel, Control (Biscuit)
6Panel, Control (Stainless)
6Panel, Control (White)
7Panel, Control (Screw, (2) 8 x 3/8)
8WP9750372FC Whirlpool Knob
8WP9750372FF Whirlpool Knob
8WP9750372FW Whirlpool Knob Assembly
10WP9750343 Whirlpool Light Lens
11Bracket, Timer
12Starter, Holder
13Receptacle, Light
14WPW10163899 Whirlpool Switch
14Switch, Simmer (White)
15Control, Oven (Biscuit)
15Control, Oven (Black)
15Control, Oven (White)
16Brace, Control Pnl
19Switch, Rocker (Warm Zone) (Black)
19Switch, Warm Zone (Biscuit)
19Switch, Warm Zone (White)
20Insulation, Cntrl
22Starter, Light
24WP9755173 Whirlpool Infinite Switch
24WP9750638 Whirlpool Infinite Switch
24WP9750639 Whirlpool Infinite Switch
25WP3400882 Whirlpool Screw
26WP4159387 Whirlpool Compactor Screw
