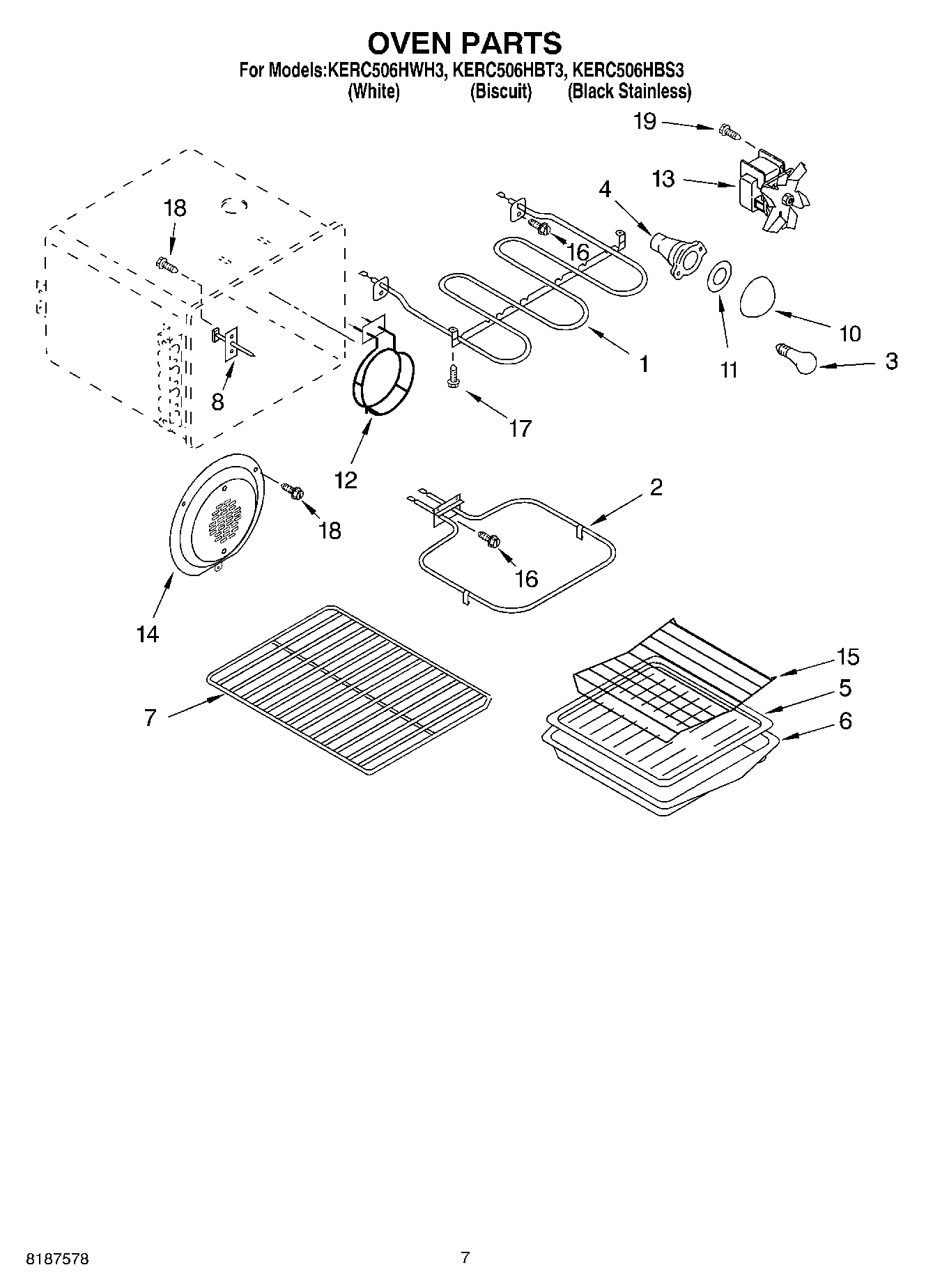

KERC506HBS3 05 – OVEN PARTS, MISCELLANEOUS PARTSadmin2025-04-26T09:54:41+00:00KERC506HBS3 05 – OVEN PARTS, MISCELLANEOUS PARTS
Products
| Position | Product |
|---|
| WPL ARI86339A8 |
| 1 |
| Wire (14 Ga. 200 c Brown) |
| 18 Ga. 80~c Rating (Red) |
| Wire (12 Ga. 150 c Black) |
| Wire (14 Ga. 150 c Yellow) |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Blue) |
| 242831 Whirlpool Oven Wire |
| WPL 9781542 |
| WPL 9750744 |
| WPL 9752771 |
| WPL 9752772 |
| WPL ARI86338A4 |
| WPL ARI86337A4 |
| WPL ARI86336A7 |
| WPL 9782122 |
| Grease |
| 8212471 Whirlpool Oven Paint |
| WPL 9781930 |
| WPL 9753687 |
| WP9782182 Whirlpool Wire |
| WPL 9753682 |
| WPL 9753680 |
| Clip, Ground Wire |
| 350930 Whirlpool White Spray Paint |
| WPW10208653 Whirlpool Insulation |
| WPL 799832 |
| PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) |
| 511873 Whirlpool Refrigerator Paint |
| 4392901 Whirlpool Biscuit Spray Paint |
| 4392899 Whirlpool Biscuit Touch-Up Paint |
| 350942 Whirlpool Spray Paint |
| SCREW |
| Almond (Uncut) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350956 Whirlpool Spray Assembly |
| FOIL, ALUMINUM OVEN (18`` X 25 ) |
| WPW10339879 Whirlpool Wire Tie |
| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| Ground Strap |
| 285006 Whirlpool Spray |
| 1 | Element, Broil |
| 2 | ELMNT-BAKE |
| 3 | RANGE ONLY 40W 120V APPL BULB |
| 4 | W11594027 Whirlpool Range Oven Light Socket |
| 6 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 7 | Rack, Standard (3) |
| 8 | Sensor |
| 10 | WP9781049 Whirlpool Light Lens |
| 11 | WP3184533 Whirlpool Range Light Lens Gasket |
| 12 | WPW10280189 Whirlpool Element |
| 13 | Fan Assembly |
| 14 | Baffle, Convection |
| 15 | Rack, Roasting |
| 16 | Screw |
| 17 | 340184 Whirlpool Screw |
| 18 | WP4159387 Whirlpool Compactor Screw |
| 19 | Screw (4) 10 x 1/2 |
