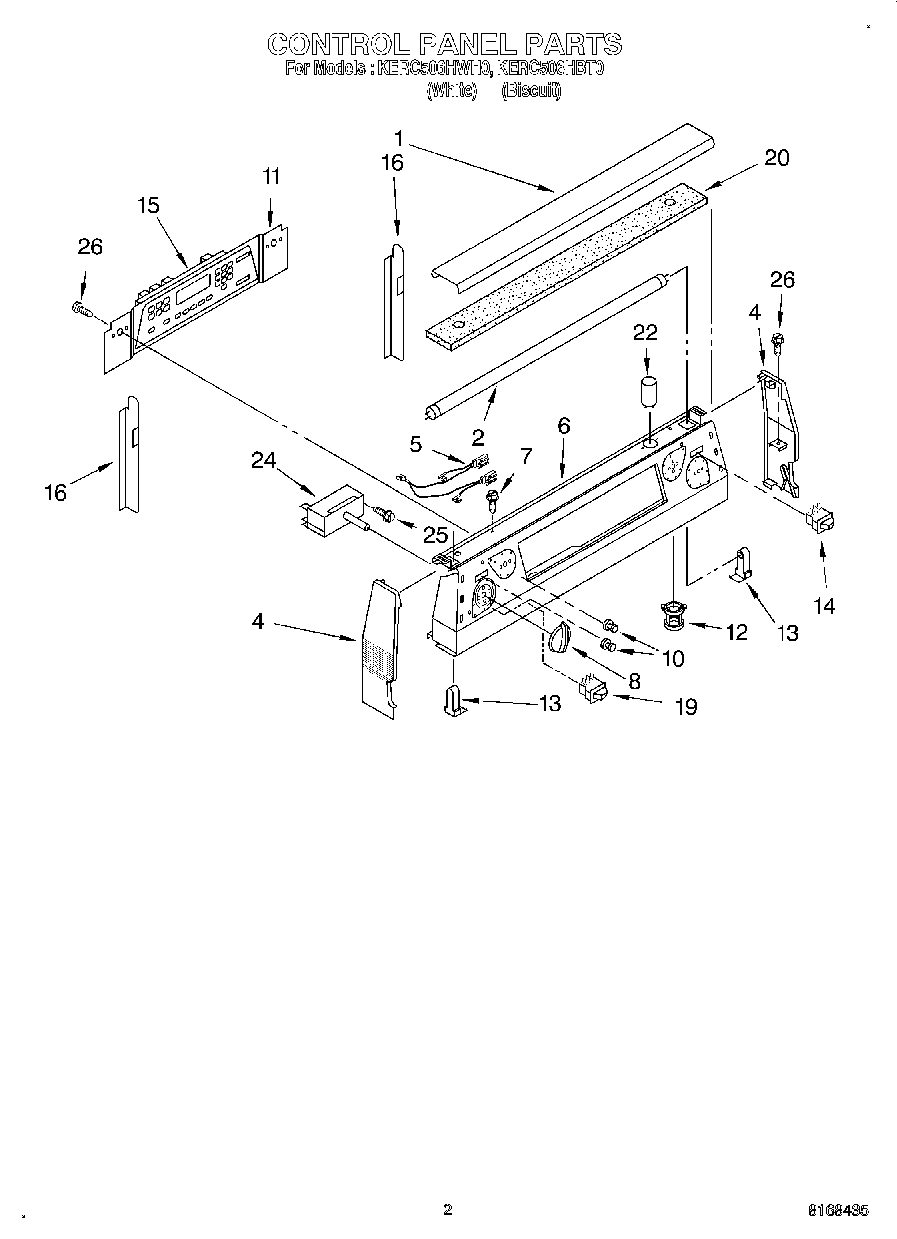

KERC506HBT0 02 – CONTROL PANEL

KERC506HBT0 02 – CONTROL PANEL

Written by

in

KERC506HBT0 02 – CONTROL PANEL

Products

PositionProduct
1Lamp Cover (White)
1Lamp Cover (Biscuit)
2WP95292 Whirlpool Fluorescent Light Bulb
4End Cap (Right Hand) (White)
4End Cap (Left Hand) (White)
4End Cap L.H. (Biscuit)
4End Cap R.H. (Biscuit)
5Light, Indicator
6Panel, Control (Biscuit)
6Panel, Control (White)
7Panel, Control (Screw, (2) 8 x 3/8)
8WP9750372FC Whirlpool Knob
8WP9750372FW Whirlpool Knob Assembly
10WP9750343 Whirlpool Light Lens
11Bracket, Timer
12Starter, Holder
13Receptacle, Light
14Switch, Simmer (White)
14WPW10163899 Whirlpool Switch
15Control, Oven (Biscuit)
15Control, Oven (White)
16Brace, Control Pnl
19Switch, Warm Zone (White)
19Switch, Warm Zone (Biscuit)
20Infinite Switch (Insulation, Control)
22Starter, Light
24WP9750639 Whirlpool Infinite Switch
248203538 Whirlpool Oven Infinite Switch
24WP9750638 Whirlpool Infinite Switch
25WP3400882 Whirlpool Screw
26WP4159387 Whirlpool Compactor Screw
