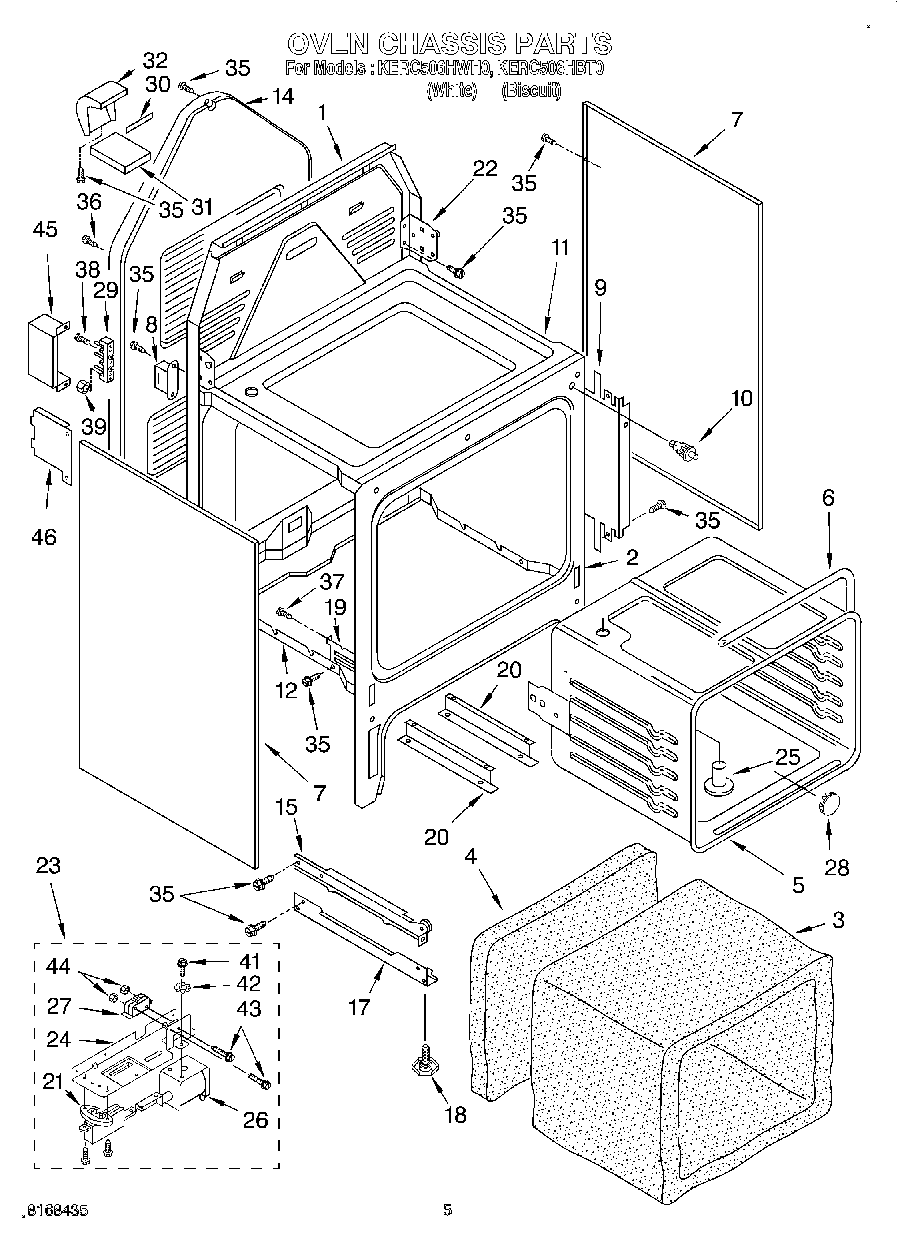

KERC506HBT0 04 – OVEN CHASSIS
Written by
in
KERC506HBT0 04 – OVEN CHASSIS
Products
Position
Product
1
Main Chassis, Back
2
Chassis, Front
3
Insulation, Wrap
4
Insulation, Rear
5
Oven Liner
6
Gasket, Oven
7
Body, Side (Biscuit)
7
Body, Side (White)
8
Ballast
9
Shield, Insulation
10
Door Switch (Oven Light)
11
Burner Box
12
Oven Bottom
14
Panel, Rear
15
Rail, Drawer (Right)
15
Drawer Rail, Left
17
Bottom Rail (2)
18
WPW10058460 Whirlpool Appliance Levelling Leg
19
Hinge, Receiver (2)
20
Support Rail
21
Single Position Device (Not Serviced)
22
Hinge, Cktp.-Left
22
Hinge, Cktp.-Right
23
Oven Lock Assembly (Includes No.21)
24
Bracket, Lock
25
Vent Tube
26
Solenoid
27
Switch, Interlock
28
Button, Plug
29
WP8203546 Whirlpool Terminal Block
30
Vent Gasket
31
Cover, Vent
32
Back, Vent
35
WP4159387 Whirlpool Compactor Screw
36
Screw, (2)
37
Screw (4) 10 x 1/2
38
Screw, (2) 10-16 x 1
39
WP112432 Whirlpool Nut Assembly
41
Screw (2) 10-32 x 5/16
42
Washer (2)
43
Screw, (2)
44
Nut (2)
45
WPL 9752344
46
Cover, Terminal Box
←
