KERC506HBT0 05 – OVEN

Products

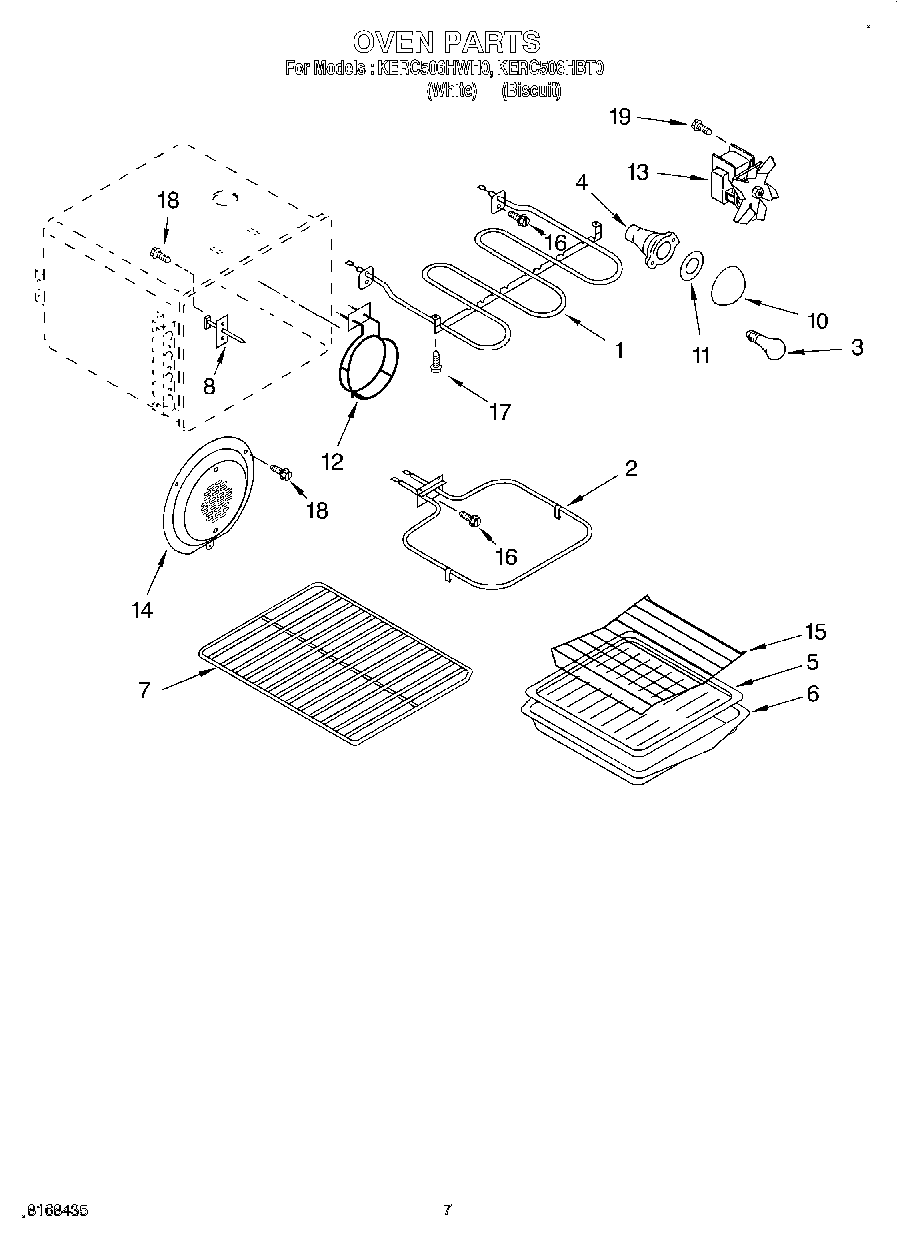

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard (3)
8	Sensor
10	WP9781049 Whirlpool Light Lens
11	WP3184533 Whirlpool Range Light Lens Gasket
12	WPW10280189 Whirlpool Element
13	Fan Assembly
14	Baffle, Convection
15	Rack, Roasting
16	Screw
17	340184 Whirlpool Screw
18	WP4159387 Whirlpool Compactor Screw
19	Wire (14 Ga. 200 c Brown)
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	1
19	Ground Strap
19	Grease
19	Golden Harvest
19	8212471 Whirlpool Oven Paint
19	WPL 9753687
19	WPL 9753685
19	WPL 9753682
19	WPL 9753680
19	WPL 9752772
19	WPL 9752771
19	WPL 9750744
19	WPL 9753681
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	WPW10208653 Whirlpool Insulation
19	WPL 799832
19	511873 Whirlpool Refrigerator Paint
19	350942 Whirlpool Spray Paint
19	Golden Harvest (Uncut)
19	SCREW
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	Wire, 25` Roll (Black 14 Ga.)
19	WPL 9781542
19	Clip, Ground Wire
19	paint, spray 13 oz. (coffee)
19	Screw (4) 10 x 1/2
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Paint, Spray 13 Oz. (Avocado)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	WPW10339879 Whirlpool Wire Tie
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	350930 Whirlpool White Spray Paint
