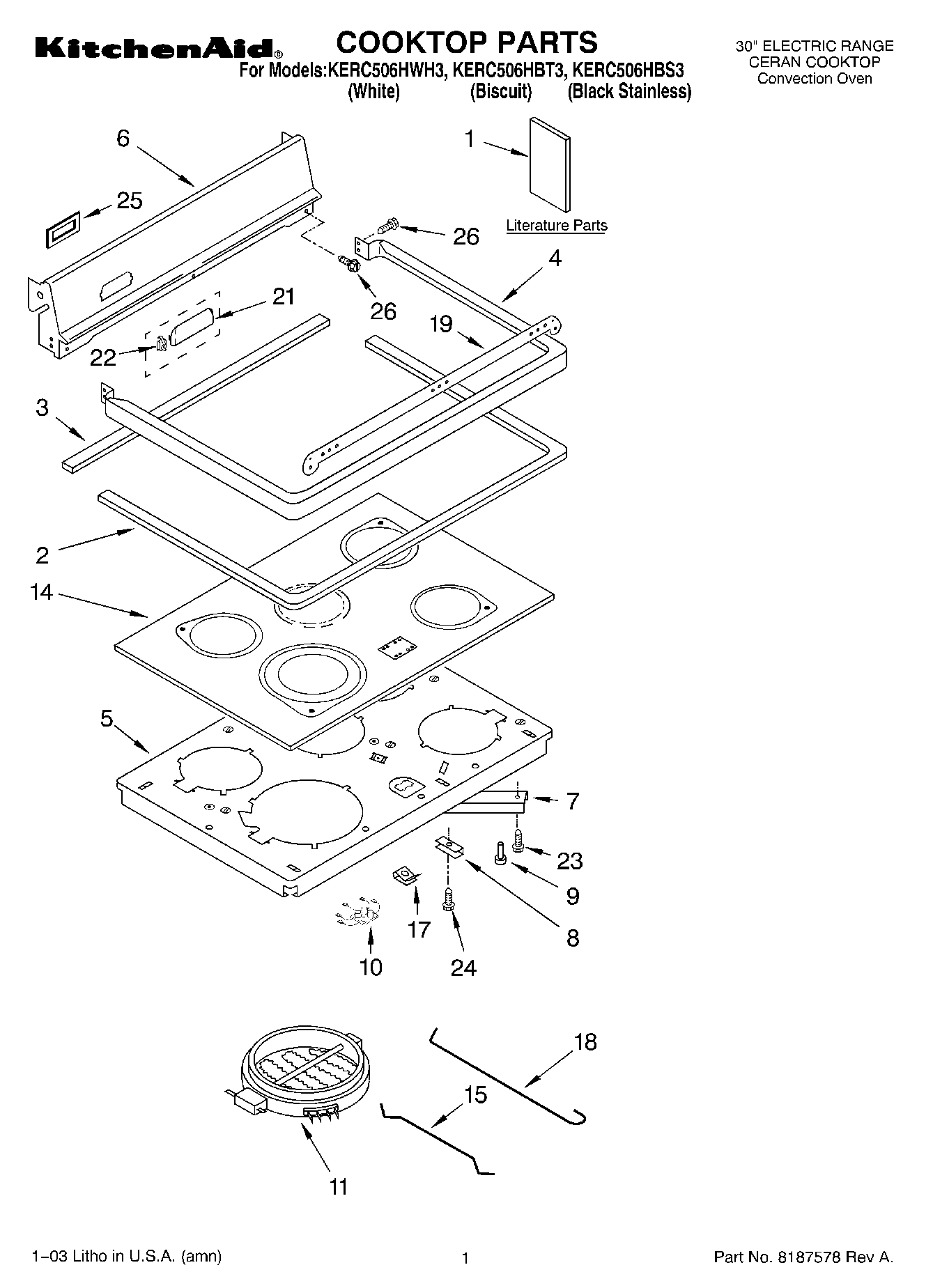

KERC506HBT3 01 – COOKTOP PARTS

KERC506HBT3 01 – COOKTOP PARTS

Written by

in

KERC506HBT3 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1WPL LIT9752776
1WPL LIT9752387
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Black)
4Frame, Cooktop (Biscuit)
4Frame, Cooktop (White)
5Support, Element
6Back Splash (Black)
6Back Splash (White)
6Back Splash (Biscuit)
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11WP8523700 Whirlpool Surface Element
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
14Cooktop, Ceran (White)
14Cooktop, Ceran (Almond)
14Cooktop, Ceran (Black)
15Rod, Small Ceran Element
17WP9781235 Whirlpool Clip
18Rod, Large Ceran Element
19Guard, Wire
21Cover, Vent (White)
21Cover, Vent (Black)
21Cover, Vent (Biscuit)
22Clip, Vent Cover
23Screw (4) 10 x 1/2
24Screw, (4) 10PH-B x 3/4
25Vent Gasket
26Back Splash (Screw (4) 10AB x 1/2“)
26Spring, Warm Zone Element
