KERC506HBT3 03 – DOOR AND DRAWER PARTS

KERC506HBT3 03 – DOOR AND DRAWER PARTS

Written by

in

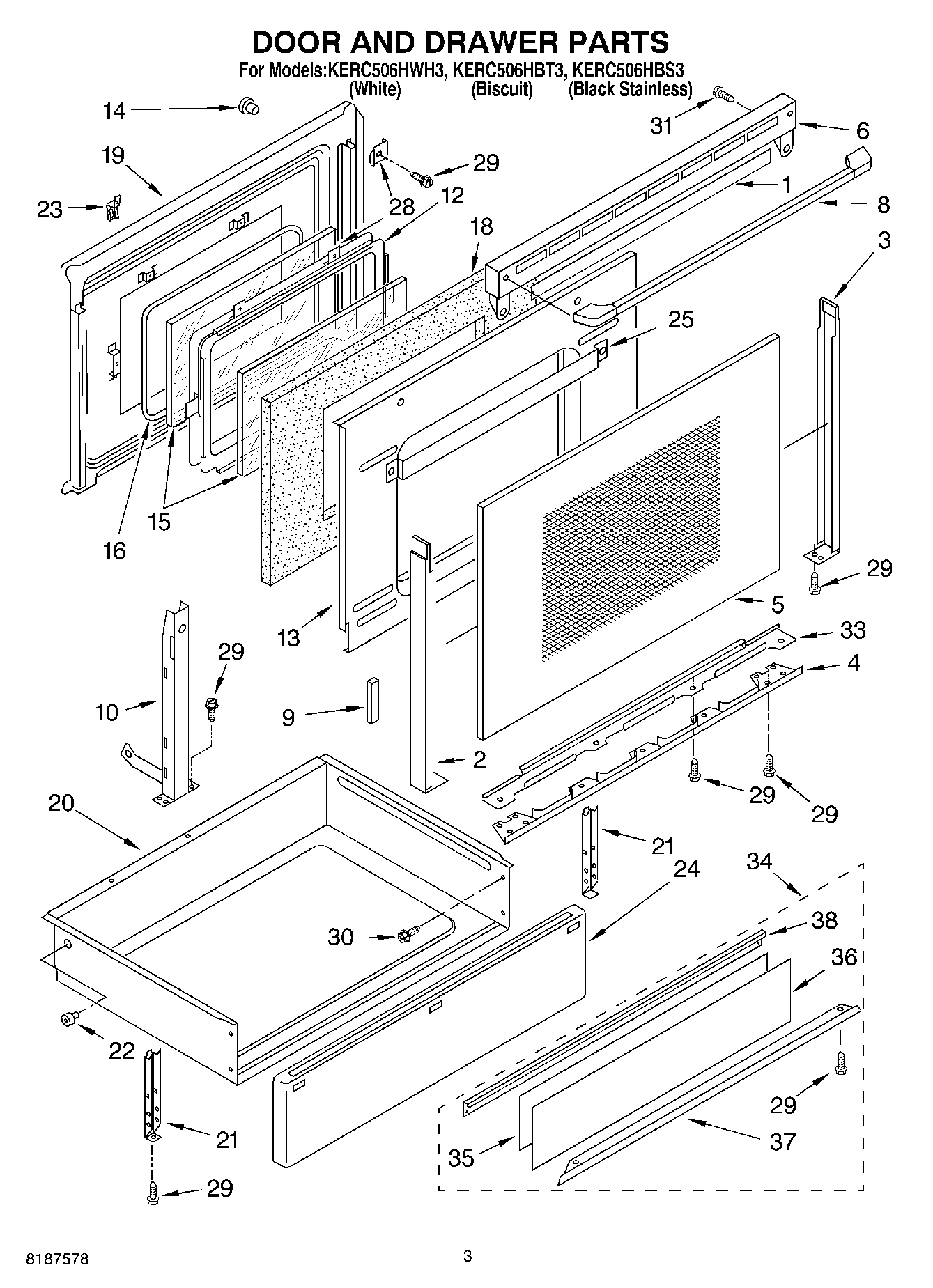

KERC506HBT3 03 – DOOR AND DRAWER PARTS

Products

PositionProduct
1Vent, Door (Gasket, Vent)
2Trim, Door-Left (Black)
2Trim, Door-Left (Biscuit)
2Trim, Door-Left (White)
3Trim, Door-Right (White)
3Trim, Door-Right (Biscuit)
3Trim, Door-Right (Black)
4Trim, Door Bottom (White)
4Trim, Door Bottom (Biscuit)
4Trim, Door Bottom (Black)
5Glass, Door (Black Stainless)
5Glass, Door Front (Biscuit)
5Glass, Door Front (White)
6Vent, Door (White)
6Vent, Door (Biscuit)
6Vent, Door (Black)
8Handle, Door (White)
8Handle, Door (Black)
8Handle, Door (Biscuit)
9Gasket, Door Glass
10WP9782033 Whirlpool Door Hinge
12Frame, Window
13Shield, Door
14238614 Whirlpool Bumper Hinge
15WP9781593 Whirlpool Door Glass
16WP9755177 Whirlpool Wind Gasket
18Insulation, Door
19Liner, Door
20Drawer & Roller
21Bracket, Drawer
22814229 Whirlpool Primary Roller
23Retainer, Glass
24Front, Drawer (White)
24Front, Drawer (Black Stainless)
24Front, Drawer (Biscuit)
25Channel, Heat
25WP90296 Whirlpool Clip
28Spacer, Door (8)
29WP4159387 Whirlpool Compactor Screw
30Screw (4) 10 x 1/2
31WPW10001180 Whirlpool Refrigerator Screw
33Deflector, Steam
34Stainless Model Only
35WPL 9753329
36Panel, Drawer
37WPL 9750613PB
38WPL 9750614PB
