KERC507EAL2 01 – COOKTOP

KERC507EAL2 01 – COOKTOP

Written by

in

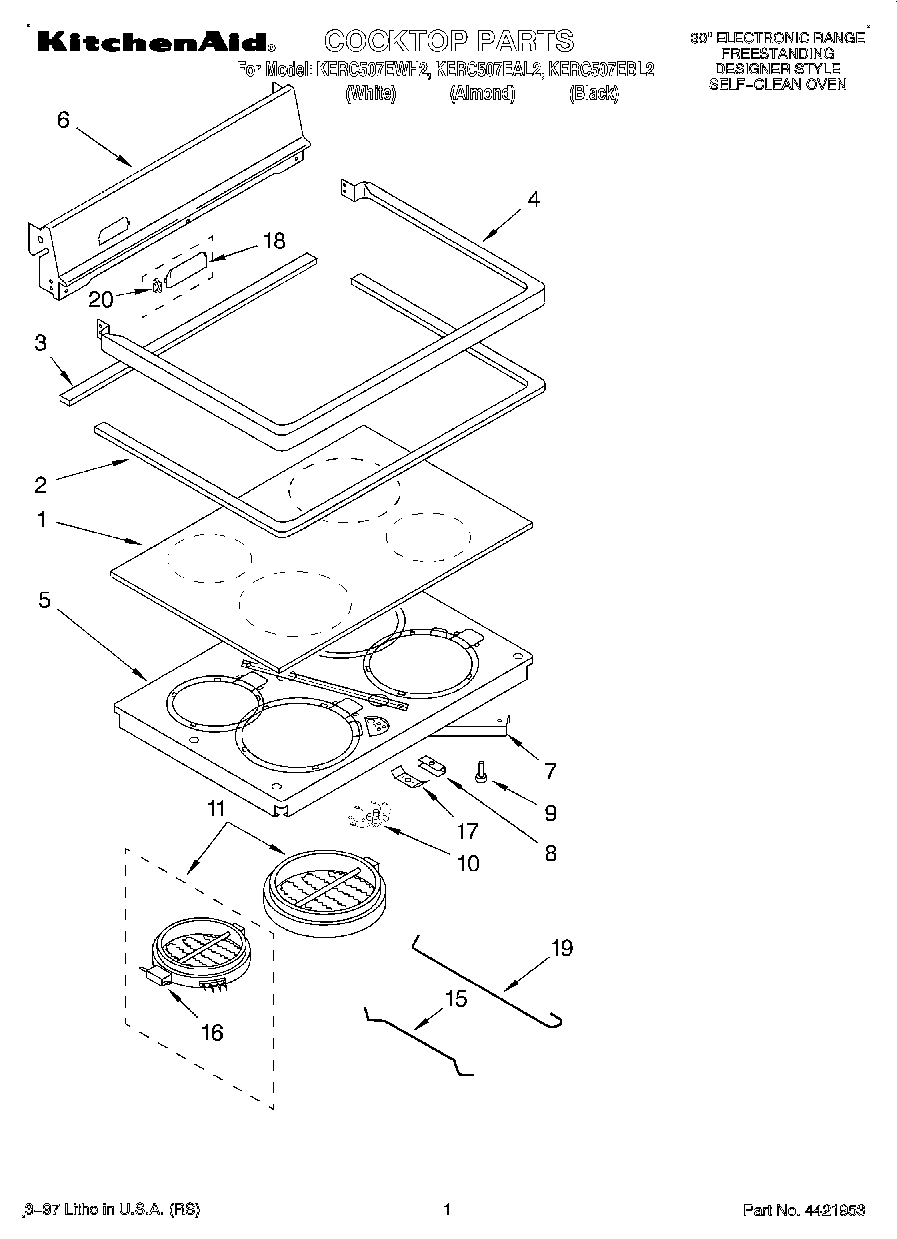

KERC507EAL2 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Almond Mdl.)
1Cooktop, Ceran (White Mdl.)
1Cooktop, Ceran (Black Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Black)
4Frame, Cooktop (Almond)
4Frame, Cooktop (White)
5Support, Element
6Back Splash (Almond)
6Back Splash (Black)
6Back Splash (White)
6Back Splash (Screw (4) 10AB x 1/2“)
7Brace, Support
7Screw (4) 10 x 1/2
8Support Clip (4)
8Screw, (4) 10PH-B x 3/4
9238614 Whirlpool Bumper Hinge
10Hot Light
11Element, Surface (8“ R.R. 2100W)
11W10823694 Whirlpool Surface Element
11Element, Surface (6“ L.R. 1400W)
11Element, Surface (7“ R.F. 1700W)
15Rod, Small Ceran Element
16Limiter, Temp. (1400 W – LR)
16Limiter, Temp (2100W – RR)
16Limiter, Temp (1700W – RF)
16Limiter, Temp (2400W – LF)
17WP9781235 Whirlpool Clip
18Cover, Vent (Almond)
18Cover, Vent (White)
18Cover, Vent (Black)
19Rod, Large Ceran Element
20Clip, Vent Cover
