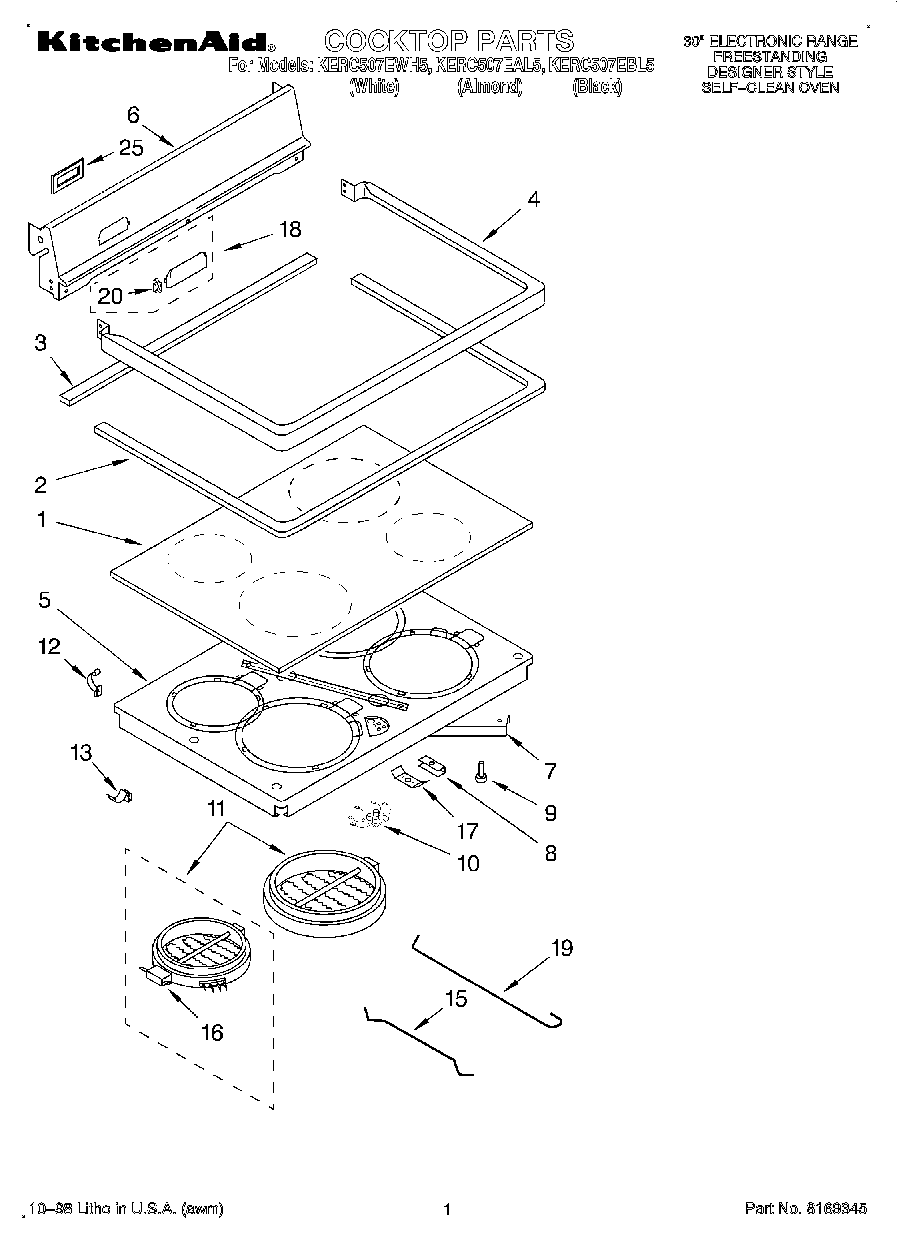

| 1 | Cooktop, Ceran (Almond Mdl.) |
| 1 | Cooktop, Ceran (Black Mdl.) |
| 1 | Cooktop, Ceran (White Mdl.) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Rear Gasket |
| 4 | Frame, Cooktop (Almond) |
| 4 | Frame, Cooktop (White) |
| 4 | Frame, Cooktop (Black) |
| 5 | Support, Element |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 6 | Back Splash (Almond) |
| 6 | Back Splash (White) |
| 6 | Back Splash (Black) |
| 7 | Brace, Support |
| 7 | Screw (4) 10 x 1/2 |
| 8 | Support Clip (4) |
| 8 | Screw, (4) 10PH-B x 3/4 |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11 | W10823694 Whirlpool Surface Element |
| 11 | W10823698 Whirlpool Surface Element Right Rear |
| 11 | W10823699 Whirlpool Right Front Surface Element |
| 11 | Element, Surface (2200W - RR) |
| 12 | 8528351 Whirlpool Clip |
| 13 | WP90016 Whirlpool Clip |
| 15 | Rod, Small Ceran Element |
| 16 | Limiter, Temp. (LF) |
| 16 | Limiter, Temp. (LR-RF-RR) |
| 17 | WP9781235 Whirlpool Clip |
| 18 | Cover, Vent (Black) |
| 18 | Cover, Vent (Almond) |
| 18 | Cover, Vent (White) |
| 19 | Rod, Large Ceran Element |
| 20 | Clip, Vent Cover |
| 25 | Vent Gasket |
