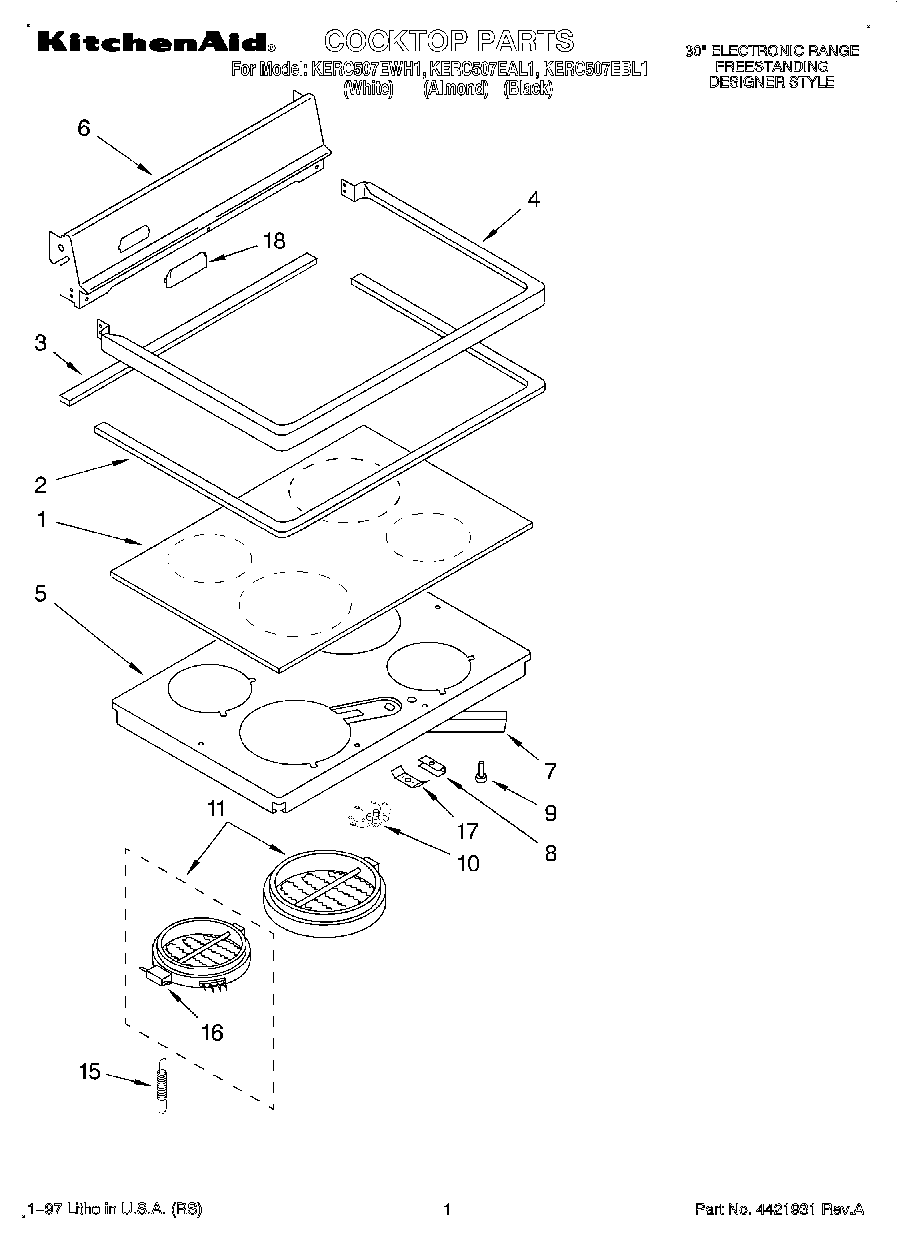

KERC507EBL1 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Almond Mdl.)
1Cooktop, Ceran (White Mdl.)
1Cooktop, Ceran (Black Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (White)
4Frame, Cooktop (Almond)
4Frame, Cooktop (Black)
5Support, Element
6Back Splash (Screw (4) 10AB x 1/2“)
6Back Splash (Almond)
6Back Splash (Black)
6Back Splash (White)
7Brace, Support
7WP3387230 Whirlpool Screw
8Support Clip (4)
8Screw, (4) 10PH-B x 3/4
9238614 Whirlpool Bumper Hinge
10Hot Light
11Element, Surface (8“ R.R. 2100W)
11Element, Surface (7“ R.F. 1700W)
11Element, Surface (6“ L.R. 1400W)
11W10823694 Whirlpool Surface Element
15Spring (12)
16Limiter, Temp (1700W – RF)
16Limiter, Temp (2100W – RR)
16Limiter, Temp. (1400 W – LR)
16Limiter, Temp (2400W – LF)
17WP9781235 Whirlpool Clip
18Cover, Vent (Almond)
18Cover, Vent (White)
18Cover, Vent (Black)
