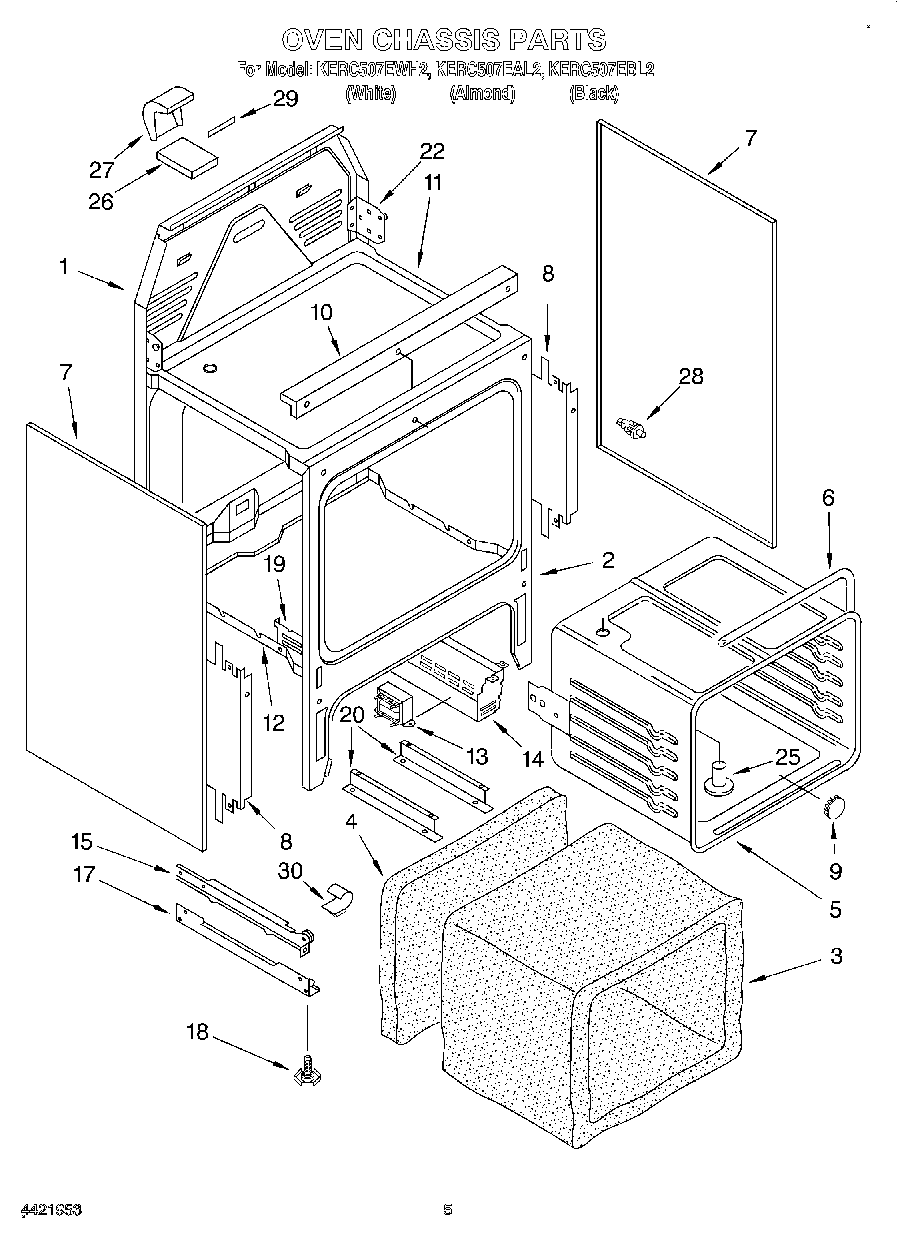

KERC507EBL2 04 – OVEN CHASSIS
Written by
in
KERC507EBL2 04 – OVEN CHASSIS
Products
Position
Product
1
Main Chassis, Back
2
Chassis, Front
3
Insulation, Wrap
4
Insulation, Rear
5
Oven Liner
6
Gasket Oven
7
Oven , Side L or R (White)
7
Oven , Side L or R (Black)
7
Oven , Side L or R (Almond)
8
Shield, Insulation
9
Button, Plug
10
Guard, Wire
11
Screw, (2)
11
Burner Box
12
Oven Bottom
13
WP9760588 Whirlpool Transformer
14
Support, Fan
15
Rail, Drawer (Right)
15
Drawer Rail, Left
17
Bottom Rail (2)
18
WPL 9751745
18
WPW10058460 Whirlpool Appliance Levelling Leg
20
Support Rail, Pan
22
Hinge, Cktp.-Left
22
Hinge, Cktp.-Right
25
Vent Tube
26
Cover, Vent
27
Back, Vent
27
WP4159387 Whirlpool Compactor Screw
28
Switch, Door
29
Vent Gasket
30
Clip, Wire
←
