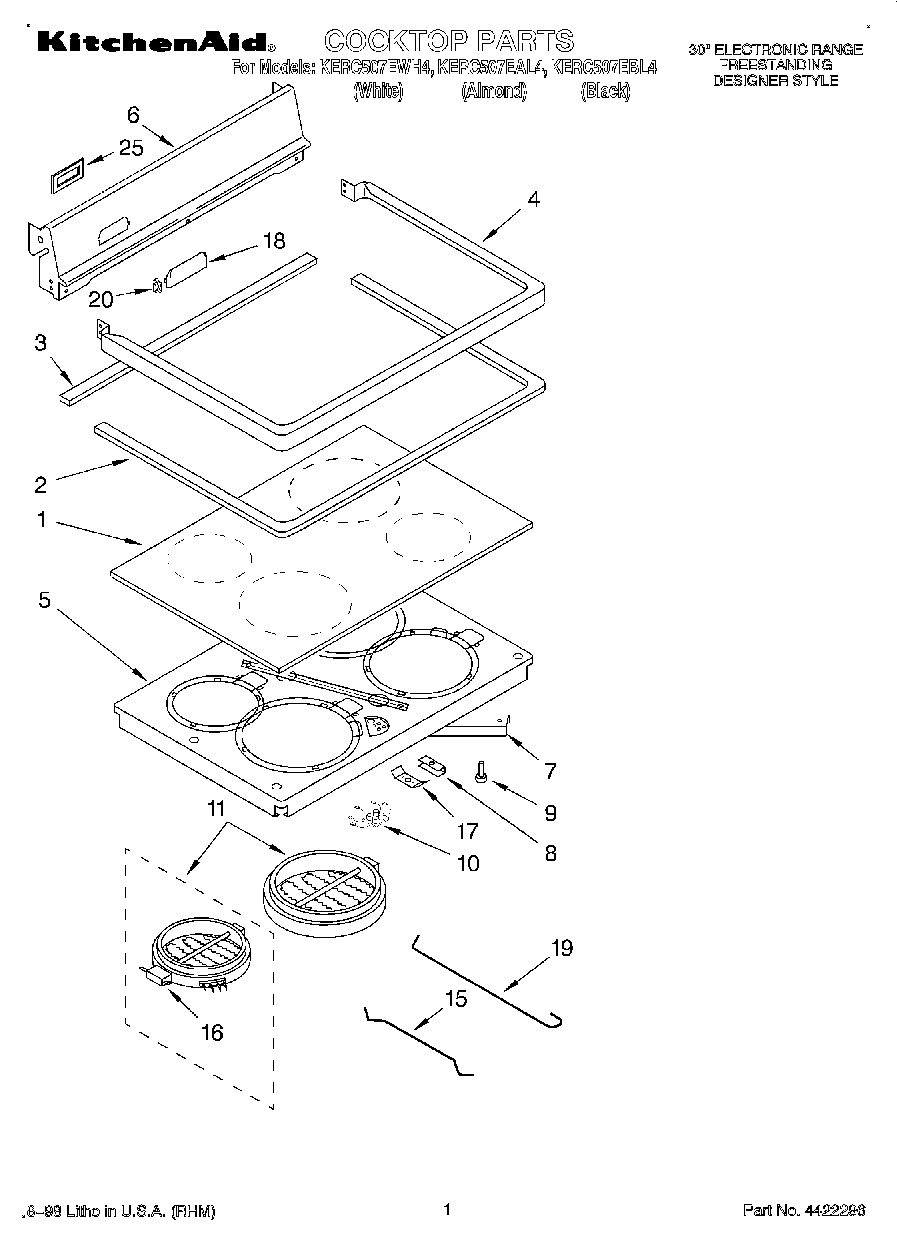

KERC507EBL4 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (White Mdl.)
1Cooktop, Ceran (Black Mdl.)
1Cooktop, Ceran (Almond Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (White)
4Frame, Cooktop (Almond)
4Frame, Cooktop (Black)
5Support, Element
6Back Splash (Black)
6Back Splash (White)
6Back Splash (Screw (4) 10AB x 1/2“)
6Back Splash (Almond)
7Brace, Support
7Screw (4) 10 x 1/2
8Screw, (4) 10PH-B x 3/4
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11Element, Surface (8“ R.R. 2100W)
11Element, Surface (7“ R.F. 1700W)
11Element, Surface (6“ L.R. 1400W)
11W10823694 Whirlpool Surface Element
15Rod, Small Ceran Element
16Limiter, Temp (1700W – RF)
16Limiter, Temp (2100W – RR)
16Limiter, Temp. (1400 W – LR)
16Limiter, Temp (2400W – LF)
17WP9781235 Whirlpool Clip
18Cover, Vent (Black)
18Cover, Vent (Almond)
18Cover, Vent (White)
19Rod, Large Ceran Element
20Clip, Vent Cover
25Vent Gasket
