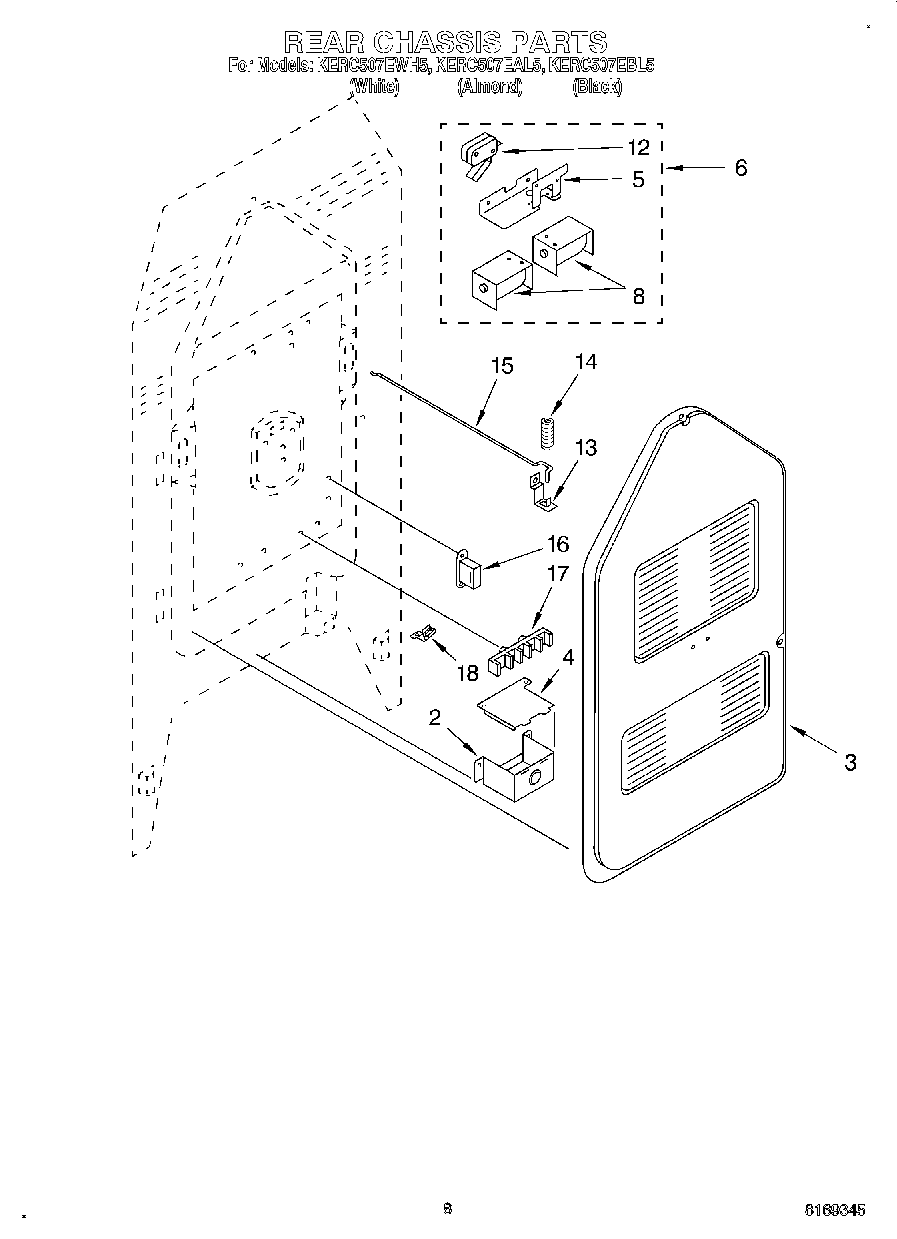

KERC507EBL5 06 – REAR CHASSIS, LIT/OPTIONAL

KERC507EBL5 06 – REAR CHASSIS, LIT/OPTIONAL

Written by

in

KERC507EBL5 06 – REAR CHASSIS, LIT/OPTIONAL

Products

PositionProduct
WPL 9753509
WPL LIT9752387
WPL LIT9752381
Literature Parts (Cookbook (T/C Oven))
WPL 9781214
WPL 9752377
WPL 9752343
WPL 9751745
WPL 9750376
WPL LIT9752776
WPL LIT9780689
WPL LIT3184110
WPL 9781821
WPL LIT9753481
WPL LIT9753308
Label, Instruction (Lamp Cover)
Light, Indicator
WPL 9752368
WPL 9752365
WPL 9751139
WPW10339879 Whirlpool Wire Tie
Safer Cooking Tips
WPL 9752771
2WPL 9752344
3Screw (4) 10 x 3/8
3Panel, Rear
4Cover, Terminal Box
5Bracket, Lock
6Oven Lock Assembly
8Screw (2) 10-32 x 5/16
8Solenoid
12Screw, (2)
12Nut (2)
12Switch, Interlock
13Bracket, Spring
14Spring, Door Lock
15Rod, Lock
16Washer (2)
16WP4159387 Whirlpool Compactor Screw
16Ballast
17WP112432 Whirlpool Nut Assembly
17WP8203546 Whirlpool Terminal Block
17Screw, (2) 10-16 x 1
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1872113 Whirlpool Touch-Up Paint
18Wire, 25“ Roll (White 14 GA.)
18WPW10208653 Whirlpool Insulation
18285006 Whirlpool Spray
18Golden Harvest
18Almond (Uncut)
18Wire, 25` Roll (Red 14 Ga.)
188212471 Whirlpool Oven Paint
18350930 Whirlpool White Spray Paint
18FOIL, ALUMINUM OVEN (18“ X 25 )
18350956 Whirlpool Spray Assembly
1872017 Whirlpool Appliance Touch-Up Paint White
18799344 Whirlpool Refrigerator Paint
18Wire, 25` Roll (Black 14 Ga.)
18Grease
18paint, spray 13 oz. (coffee)
18WP72107 Whirlpool Touchup
18Golden Harvest (Uncut)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Paint, Touch-Up 1/2 Oz. (Coffee)
18Paint, Spray 13 Oz. (Avocado)
18Wire (14 Ga. 150 c Blue)
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18242831 Whirlpool Oven Wire
18350942 Whirlpool Spray Paint
18Toast
18Paint, Spray (13 Oz.) (Platinum)
18Enamal, Toast (1 Qt. Uncut)
18Clip, Ground Wire
18Wire (14 Ga. 150 c Brown)
18WPL 72112
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18Ground Strap
181
18Wire (14 Ga. 200 c Brown)
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Platinum (Uncut)
